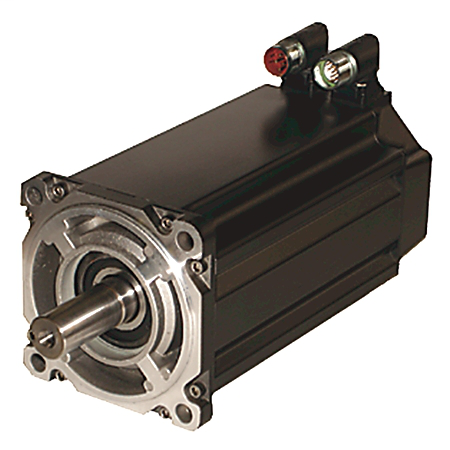

ROCKWELL AUTOMATION MPL-B430P-RJ72AA
ROCKWELL AUTOMATION MPL-B430P-RJ72AA
ROCKWELL AUTOMATION MPL-B430P-RJ72AA
ROCKWELL AUTOMATIONNot available

Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 2 Pole, 5000 rpm Maximum, 6.55 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Resolver Feedback, No Brake, 115 mm Bolt Circle Metric Flange Mounting, Keyed Shaft, Standard

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 4 = 115 mm (4.53 in.), Stack Length 30 = 76.2 mm (3.0 in.), 5000 RPM, Resolver. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)
Product Code: MPL-B430P-RJ72AA
Partner cod.: MPL-B430P-RJ72AA
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
PRODUCT SELECTIONProduct TypeBulletin MPL - Low-Inertia Brushless Servo Motors ProductVoltage460 VFrame Size4 = 115 mm (4.53 in.)Magnet Stack Length30 = 76.2 mm (3.0 in.)RPM5000 RPMFeedbackResolverEnclosureKeyed Shaft ExtensionConnectorsSpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)Brake OptionNo Brake
