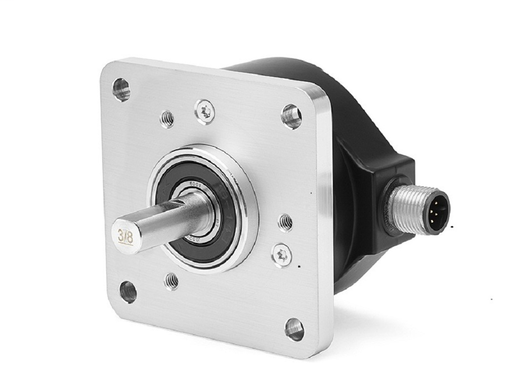

Incremental Encoder, Standard Square Flange, 3/8 inch Diameter Shaft with Flat, 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN), MS Connector, 10-Pin with mating connector, 2000 Pulses per Revolution.

Product Code: 847H-DN1A-RG02000 Copia - Copy

Partner cod.: 847H-DN1A-RG02000 Copia - Copy

ROCKWELL AUTOMATION

Tecnichal data

Technical Specs

Description

Tecnichal data

Features
Includes compact 2- and 2.5-inch housing
Provides integer resolution from 1...65,536 counts per resolution

Technical Specs

Specifications
Resolution (Pulses per Revolution):2000
Encoder Data
Encoder Diameter/Type:2.5 inch Diameter, Solid Shaft
Mounting Configuration:Standard Square Flange
Shaft Size:3/8 inch Diameter Shaft with Flat
Power Supply:4.5-5.5 Volt DC
Output Configuration:4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN)
Exit Type:Radial Exit
Connector Cable Type:MS Connector, 10-Pin with mating connector

Description

Incremental Encoder, 2.5" Diameter, Solid Shaft, Standard Square Flange, 3/8Ã¢ Diameter Shaft with Flat, 4.5-5.5 V DC, 4.5-5.5 V Line Driver (TTL), Radial Exit, MS 10-Pin w/ Mating Connector, B leads A, CW, Z gated with BN, 2000 PPR

Other products

Description other products

Incremental Encoder, 2" Diameter, Solid Shaft, Standard Servo Mount, 10 mm Diameter Shaft with Flat, 4.5-5.5 V DC, 4.5-5.5 V Line Driver (TTL), Radial Exit, M12 8-Pin w/ Mating Connector, A leads B, CW, Z gated with A, 1000 PPR
Cod. Articolo: 847T-HL14-RA01000

Incremental Encoder , Standard Servo Mount , 10 mm Diameter Shaft with Flat , 4.5-5.5 Volt Line Driver,TTL (A-Leads-B, CW, Z gated with A) , M12 Connector, 8-Pin with mating connector, 1000 Pulses per Revolution.

More info →

Incremental Encoder, 2" Diameter, Solid Shaft, Standard Square Flange, 10 mm Diameter Shaft with Flat, 4.5-5.5 V DC, 4.5-5.5 V Line Driver (TTL), Radial Exit, MS 10-Pin w/o Mating Connector, A leads B, CW, Z gated with A, 100 PPR
Cod. Articolo: 847T-DL14-RH00100

Incremental Encoder , Standard Square Flange , 10 mm Diameter Shaft with Flat , 4.5-5.5 Volt Line Driver,TTL (A-Leads-B, CW, Z gated with A) , MS Connector, 10-Pin, 100 Pulses per Revolution.

More info →

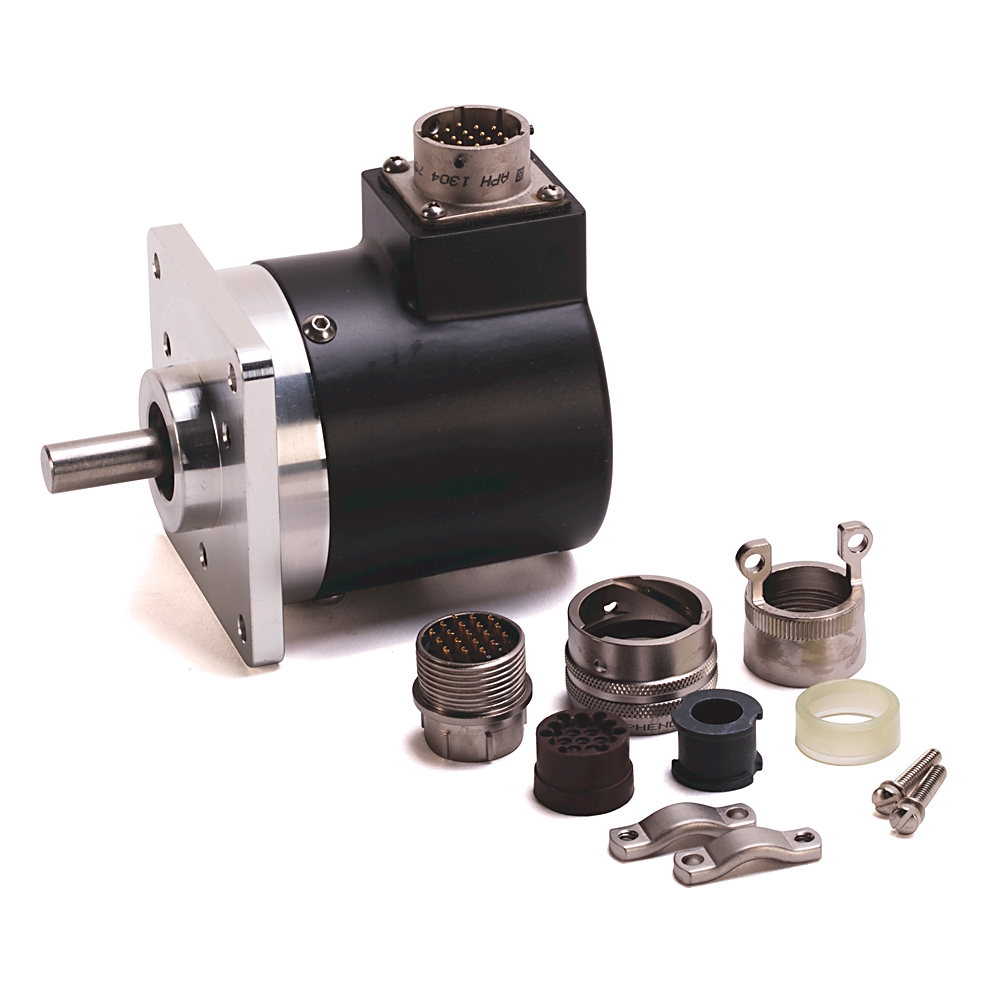

Absolute encoder, same as 845D-SJ Z25AG 5Â but with 360 PPR GRAY CODE
