ROCKWELL AUTOMATION 847H-DK1A-RR02500

ROCKWELL AUTOMATION 847H-DK1A-RR02500

Not available

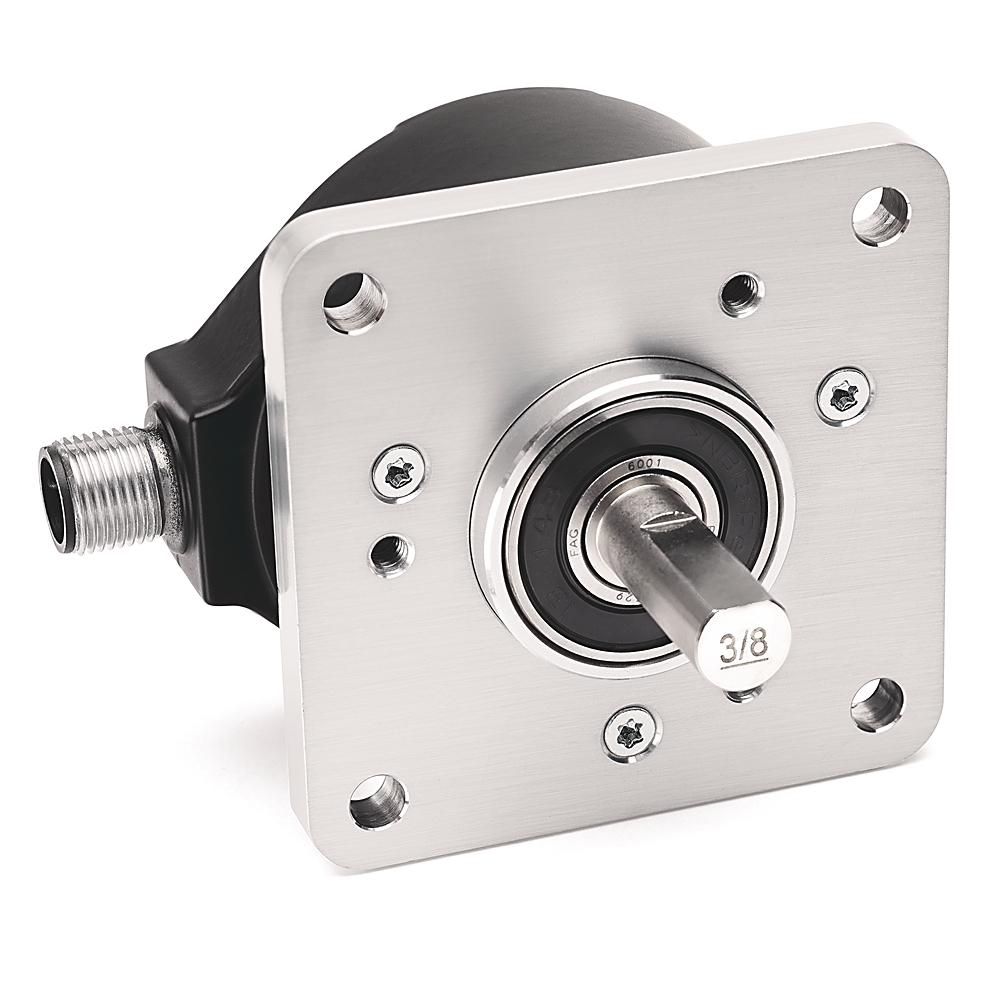

Incremental Encoder, 2.5" Diameter, Solid Shaft, Standard Square Flange, 6 mm Diameter Shaft with Flat, 4.5-5.5 V DC, 4.5-5.5 V Line Driver (TTL), Radial Exit, 10 m (32.8 ft) Cable, B leads A, CW, Z gated with BN, 2500 PPR

Incremental Encoder , Standard Square Flange , 6 mm Diameter Shaft with Flat , 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN) , 10m (32.8 ft) Cable, 2500 Pulses per Revolution.

Product Code: 847H-DK1A-RR02500 Copia - Copy

Copia - Copy

Partner cod.: 847H-DK1A-RR02500 Copia - Copy

Copia - Copy

ROCKWELL AUTOMATION

Tecnichal data

Download

Tecnichal data

ENCODER DATAEncoder Diameter/Type2.5 inch Diameter, Solid ShaftMounting ConfigurationStandard Square FlangeShaft Size6 mm Diameter Shaft with FlatPower Supply4.5-5.5 Volt DCOutput Configuration4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN)Exit TypeRadial ExitConnector Cable Type10m (32.8 ft) CableResolution1 Pulses per Revolution

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

847h-in001_-en-p.pdf

Other products

Description other products

ROCKWELL AUTOMATION 847H-DL1A-RH05000

Incremental Encoder, 2.5" Diameter, Solid Shaft, Standard Square Flange, 10 mm Diameter Shaft with Flat, 4.5-5.5 V DC, 4.5-5.5 V Line Driver (TTL), Radial Exit, MS 10-Pin w/o Mating Connector, B leads A, CW, Z gated with BN, 5000 PPR
Cod. Articolo: 847H-DL1A-RH05000

Incremental Encoder , Standard Square Flange , 10 mm Diameter Shaft with Flat , 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN) , MS Connector, 10-Pin, 5000 Pulses per Revolution.

ROCKWELL AUTOMATION 845G-S3G5HT4096R

Single Turn HPAbsolute Encoder, English Servo, Gray Code, 5V DC 5 Percent, H True, 5V DC TTL NPN Sinking Output, 12 Bit/0-4095, 19 Pin Radial
Cod. Articolo: 845G-S3G5HT4096R

Optical Absolute Encoder, NEMA Type4/Type 13, Single-Turn, Size 25, Gray Code Output, 12 bit/0-4095 Counts Per Revolution

ROCKWELL AUTOMATION 847H-DN2D-RE00100

Incremental Encoder, 2.5" Diameter, Solid Shaft, Standard Square Flange, 3/8â€ Diameter Shaft with Flat, 8-30 V DC, 8-30V Open Collector, Radial Exit, MS 7-Pin w/ Mating Connector, B leads A, CW, Z gated with BN, 100 PPR
Cod. Articolo: 847H-DN2D-RE00100

Incremental Encoder , Standard Square Flange , 3/8 inch Diameter Shaft with Flat , 8-30 Volt Open Collector (B-Leads-A, CW, Z gated with BN) , MS Connector, 7-Pin with mating connector, 100 Pulses per Revolution.
