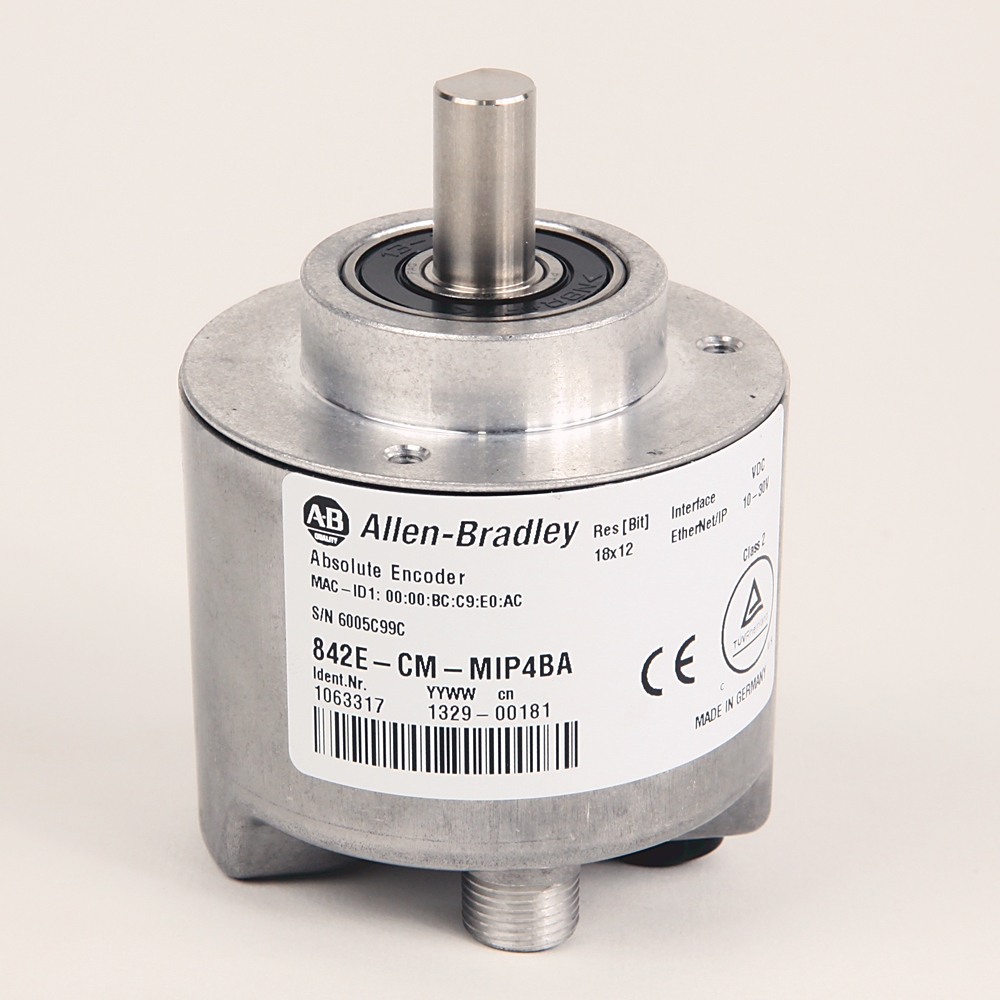

842E-CM Ethernet/IP Encoder - CIP Motion, Multi-turn (4096 turns), Solid shaft 10 mm with flat, M12 connector, 262,144 (18 bit) steps per revolution

Product Code: 842E-CM-MIP4BA Copia - Copy

Partner cod.: 842E-CM-MIP4BA Copia - Copy

ROCKWELL AUTOMATION

Tecnichal data

Technical Specs

Download

Tecnichal data

ETHERNET / IP ENCODER SELECTION DATANumber of TurnsMulti-turn (4096 turns)Mechanical InterfaceSolid shaft 10 mm with flatConnectorM12 connectorResolution262,144 (18 bit) steps per revolutionACCESSORIESConnection MediaDC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m

Technical Specs

Specifications
Type:Multi-turn (4096 turns)
Shaft Diameter:Solid shaft 10 mm with flat
Connection:M12 connector
Ethernet / Ip Encoder Selection Data
Number of Turns:Multi-turn (4096 turns)
Mechanical Interface:Solid shaft 10 mm with flat
Connector:M12 connector
Resolution:262,144 (18 bit) steps per revolution
Accessories
Connection Media:DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m
Ethernet Media:M12 D-code to RJ45 patchcord, 2m

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

842e-in002_-en-p.pdf
