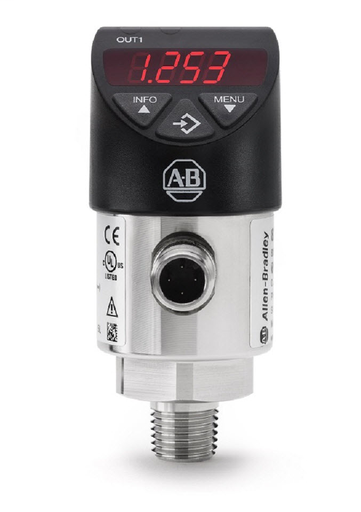

ROCKWELL AUTOMATION 836P-D2NFGA36PA-D4
ROCKWELL AUTOMATION 836P-D2NFGA36PA-D4
ROCKWELL AUTOMATION 836P-D2NFGA36PA-D4
ROCKWELL AUTOMATIONNot available

Solid-State Pressure Sensor, Standard, Display/Push-button, Switch, 0 psi (0 bar), 1/4 NPT Female, 36.2 psi (2.49 bar), Gauge, 1xPNP x 1 Analog(4-20 mA) IO-Link, 4-Pin DC Micro(M12), IO Link Enabled

Solid-State Pressure Sensor, Standard, Display/Push-button, Switch, 0 psi (0 bar), 1/4 NPT Female, 36.2 psi (2.49 bar), Gauge, 1xPNP x 1 Analog(4-20 mA) IO-Link, 4-Pin DC Micro(M12), IO Link Enabled
Product Code: 836P-D2NFGA36PA-D4
Partner cod.: 836P-D2NFGA36PA-D4
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Tecnichal data
With displayYes
ReadableYes
Housing materialStainless steel
Position, nomProcess connection lower mount (LM)
Suitable for gasesYes
Suitable for waterYes
Suitable for steamYes
Suitable for airYes
Measuring elementPiezo
Sensor modelStandard
Connection type4 pin DC micro (M12)
Display≤±1% of span ±1 digit
MaterialWetted parts: process connection: Stainless Steel 316 L, pressure sensing elements: <9.8 bar: Stainless Steel 316 L, ≥9.8 bar: Stainless Steel 13-8 PH, non-wetted parts: housing: Stainless steel 304, keyboard: TPE-E, display window: Polycarbonate, display
Degree of protection (IP)IP67
Width38 mm
Depth48.5 mm
Height92.3 mm
Upper pressure range36 psi (lbf/in²)
Pressure typeGauge
Thread size1/4 NPT female
Service life100000000 switching cycles
Shock50 G (1.76 oz) (IEC 60068-2-27, mechanical)
Ingress ratingIP65 and IP67. The stated ingress protection (per IEC 60529) only applies when plugged in with mating connectors that have the appropriate ingress protection
Zero offset adjustmentMaximum 3% of span
Output signal4 - 20 mA
Power supply15…35V DC
Lower pressure range0 psi
Reverse polarity protectionV+ vs. V-
Output type1xPNP, 1x analog IO-link
Long term drift≤±0.2% of span (IEC 61298-2)
LoadAnalog signal 4...20 mA: ≤0.5 kΩ
Non-linearity≤±0.5% of span (BFSL, IEC 61298-2)
Settling timeSwitching output : 20 ms with IO-link
Current consumptionWith IO-Link: maximum 450 mA including switching current
With temperature sensorNo
Cycle time, min3 ms
Data storage supportYes
Overvoltage protection40V DC
Insulation voltage500V DC
IO-link protocolVersion 1.1
Output voltagePower supply -1 V
RateCOM2 (38.4 k Baud)
Process data length16 bit (frame 2.2)
Short circuit protection4...20 mA, Out 1/Out 2 vs. V-
Output thresholdOUT 1 and OUT 2 are individually adjustable
Rated output currentWith IO-link : OUT1 maximum 100 mA, OUT2 maximum 250 mA
Output modeSelectable - normally open, normally closed, window, hysteresis
Switching outputSwitch point accuracy: ≤±1% of span, adjustment accuracy: ≤±0.5% of span
Operating temperature15 °F
Storage temperature-20 °F
Atmospheric pressure950 mbar
Ambient temperature-20 to 80 °C (-4 to 176 °F)
Temperature errorIn rate temperature range: typical: ≤±1% of span, maximum: ≤±2.5% of span
Media-20 °C
Humidity45...75 % r. h.
Vibration10 G (0.35 oz) (IEC 60068-2-6, under resonance)
Overpressure limit2 times. 1.7 times for the relative pressure measuring ranges 16 psi, 1000 psi, and 1500 psi
Temperature coefficientIn rated temperature range: mean TC zero point: ≤±0.2% of span/10 K (typical), mean TC span: ≤±0.1% of span/10 K (typical)
Technical Specs
Product Selection
Bulletin Number:836P - Solid-State Pressure Sensor
Sensor Model Type:Standard
Display Type:Display/Push-button
Low Pressure Range:0 psi (0 bar)
Process Connection Type:1/4 NPT Female
Measurement Type:Gauge
Upper Pressure Range:36.2 psi (2.49 bar)
Output Type:1xPNP x 1 Analog(4-20 mA) IO-Link
Connection type:4-Pin DC Micro(M12)
IO Link Enabled:Yes
