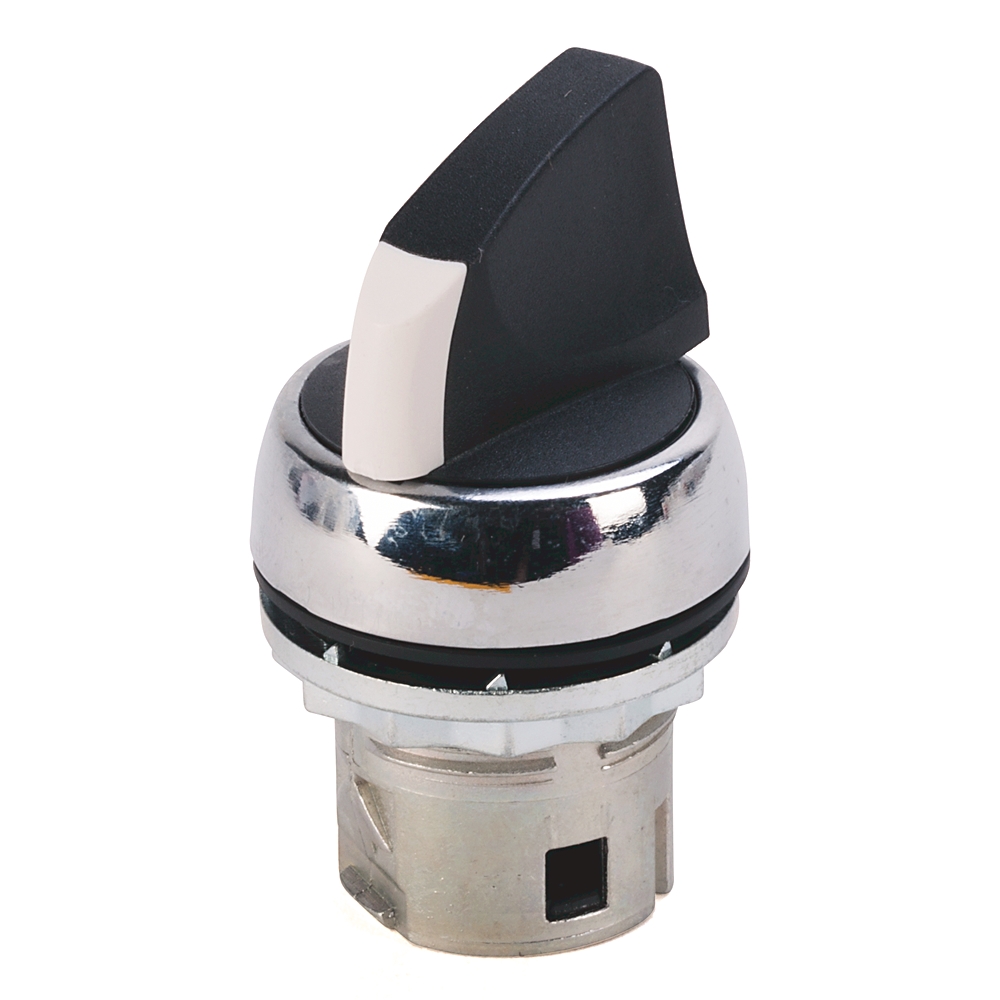

800F 2 Position Selector Switch - Metal, Maintained, Black, Standard Knob, Standard Orientation, 1 N.O. Contact Block(s), Standard Pack (Qty. 1)

800F 2 Position Selector Switch - Metal, Maintained, Black, Standard Knob, Standard Orientation, 1 N.O. Contact Block(s) Standard Pack (Qty. 1)

Product Code: 800FM-SM22MX10 Copia - Copy

Partner cod.: 800FM-SM22MX10 Copia - Copy

ROCKWELL AUTOMATION

Tecnichal data

Technical Specs

Tecnichal data

Number of switch positions	2
Spring-return	No
With light source	No
Switching function latching	Yes
Hole diameter	22.5 mm
Type of electric connection	Screw connection
Operator mechanical design life (cycles, min.)	1000000
Latch material	Metal
Contact block type	Standard
Contact block mounting style	Latch
Switch orientation	Standard
Operator type	Selector switch - standard knob
Contact block termination tightening torque	6 - 8 lb - in / 0.7 - 0.9 N-m
Enclosure compatibility	IP66, Type 4/13 (Round metal operator)
Operator function	Maintained, 2 position
Shock	100 G
Vibration	10 G
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm^2)
Contact block durability	1.0E7
Packaging	Standard pack (1 per package)
Number of contacts as normally open contact	1
Suitable for illumination	No
Contact block configuration	1 NO
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC 15 - Screw Termination
Contact block utilization category (DC)	Q600, DC-13 - Screw Termination
Contact block operational voltage, max	600V (A600, Q600) - Screw Termination
Material front ring	Metal
Type of control element	Short thumb-grip
Operator cap/button material	Metal
Operator construction/material	Metal
Termination style	Screw
Operator cap color	Black
Operating temperature	-25 Ã°C
Humidity	Ã¢Ã¢°¤95% RH from 25...60 Ã°C (77...140 Ã°F)
Hazardous location rating	No
Storage temperature	-40 Ã°C
Certifications	UL,UR, CSA, CCC, CE

Technical Specs

Specifications
Called From 800FC Library:No
Selector Switch Data
Operator Construction:Round Metal (Type 4/13, IP66)
Operator Type:Selector Switch - Standard Knob
Operator Function:Maintained, 2 Position
Knob Color:Black
Orientation:Standard
Packaging:Standard Pack, Quantity:1
Back Of Panel Data
Mounting Style:Metal Latch Mount
Part Numbers:Composite
Target Table Selections:Cam and Contact Blocks
