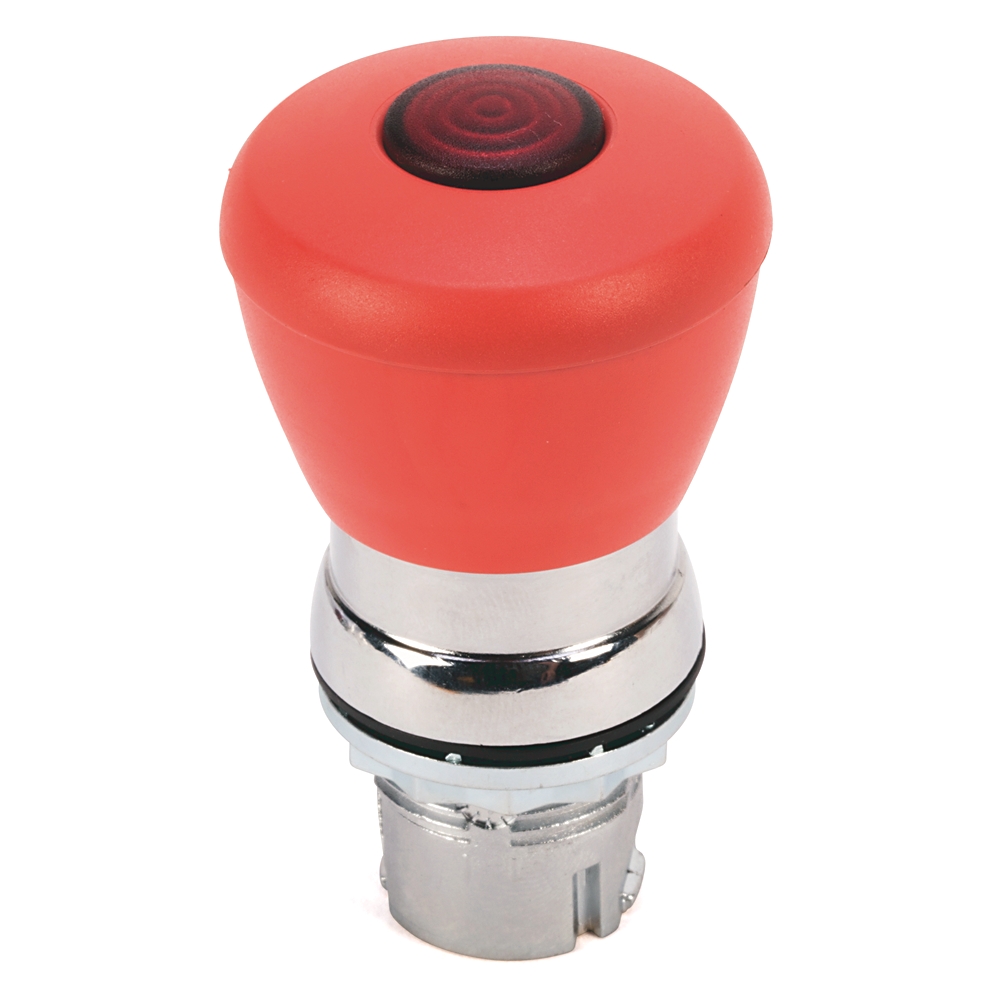

800F PB, 22mm Push Pull Operator, 3 Position Mushroom Out Lit, 40 mm, Clear, Metal

800F Momentary Mushroom Push-Pull Operators - Metal, Momentary Out, Maintained Center, Maintained In, 40mm, Clear, 3-Position 800E Style

Product Code: 800FM-LMP47E3 Copia - Copy

Partner cod.: 800FM-LMP47E3 Copia - Copy

ROCKWELL AUTOMATION

Tecnichal data

Download

Tecnichal data

Suitable for illumination	Yes
Operator construction/material	Metal
Operator cap color	Lense: Clear
Operator cap type	3-position mushroom, 40 mm, illuminated (momentary out, maintained center, maintained in)
Operator cap/button shape	Round
Operator cap/button material	Plastic
Operator mechanical design life (cycles, min.)	300000
Operator function	3 Position Push Pull
Enclosure compatibility	IP66, Type 4/13 (round metal operator)
Hole diameter	22.5 mm
Operator cap/button size	40 mm
Vibration	10 G
Shock	100 G
Operator type	Push button
Operating temperature	-25 Ã°C
Storage temperature	-40 Ã°C
Humidity	Ã¢Ã¢°¤95% RH from 25...60 Ã°C (77...140 Ã°F)
Certifications	UL,UR, CSA, CCC, CE

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

800-td008_-en-p.pdf
