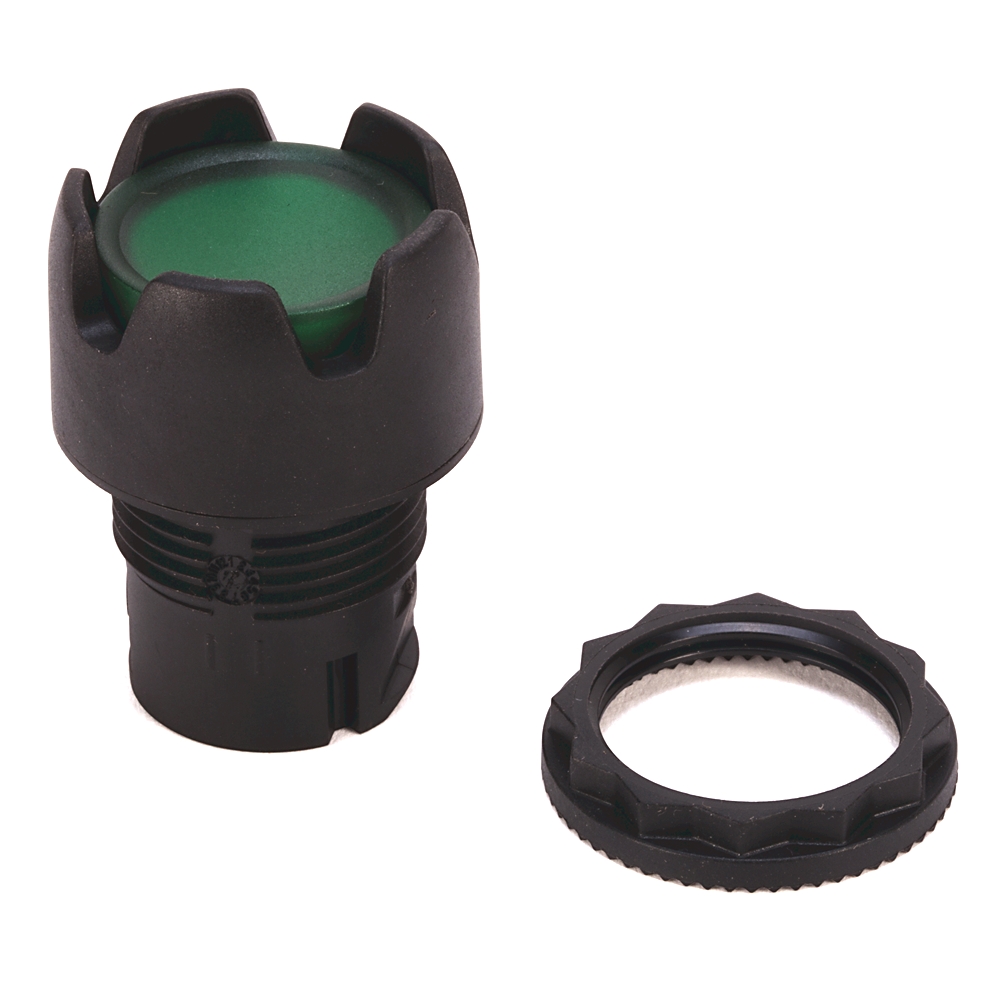

800FM-LG3MN3GX20 ROCKWELL AUTOMATION

800F PB, 22mm Momentary Push Button, Illuminated Guarded, 2 N.O., 2 N.O., Standard, Green, Green LED, Green, Integrated LED Module, Metal, 24V AC/DC (Incand or LED), Screw Contact Block, Metal Latch Mount, Standard Pack

800F Momentary Push Button - Metal, Illuminated, Guarded, Green, Integrated LED, Metal Latch Mount, 24V AC/DC, Green LED, 2 N.O. Contact(s), 0 N.C. Contact(s), Standard Standard Pack (Qty. 1)

Product Code: 800FM-LG3MN3GX20 Copia - Copy

Partner cod.: 800FM-LG3MN3GX20 Copia - Copy

ROCKWELL AUTOMATION

Suitable for illumination	Yes
Operator cap/button shape	Round
Illumination lamp type	Green LED
Contact block type	Standard
Illumination module type	Integrated LED module
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Illumination module input voltage	24V AC/DC (LED)
Contact block utilization category (AC)	A600, AC 15 - screw termination
Contact block utilization category (DC)	Q600, DC-13 - screw termination
Contact block operational voltage, max	600V (A600, Q600) - screw termination
Operator cap type	Illuminated guarded
Hole diameter	22.5 mm
Latch material	Metal
Operator mechanical design life (cycles, min.)	1.0E7
Contact block durability	1.0E7
Contact block mounting style	Latch
Operator cap text/symbol	Optional
Illumination module termination wire range	#18...12 AWG (0.75...2.5 mm^2)
Operator function	22 mm momentary push button
Contact block termination tightening torque	6 - 8 lb - in / 0.7 - 0.9 N-m
Operator type	Push button
Enclosure compatibility	IP66, Type 4/13 (Round metal operator)
Contact block configuration	2 NO
Shock	100 G
Vibration	10 G
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm^2)
Illumination module termination tightening torque	6 - 8 lb - in / 0.7 - 0.9 N-m
Operating temperature	-25 Ã°C
Humidity	Ã¢Ã¢°¤95% RH from 25...60 Ã°C (77...140 Ã°F)
Storage temperature	-40 Ã°C
Illumination module mounting style	Latch
Operator construction/material	Metal
Termination style	Screw contact block
Operator cap color (lens)	Green
Certifications	UL,UR, CSA, CCC, CE
