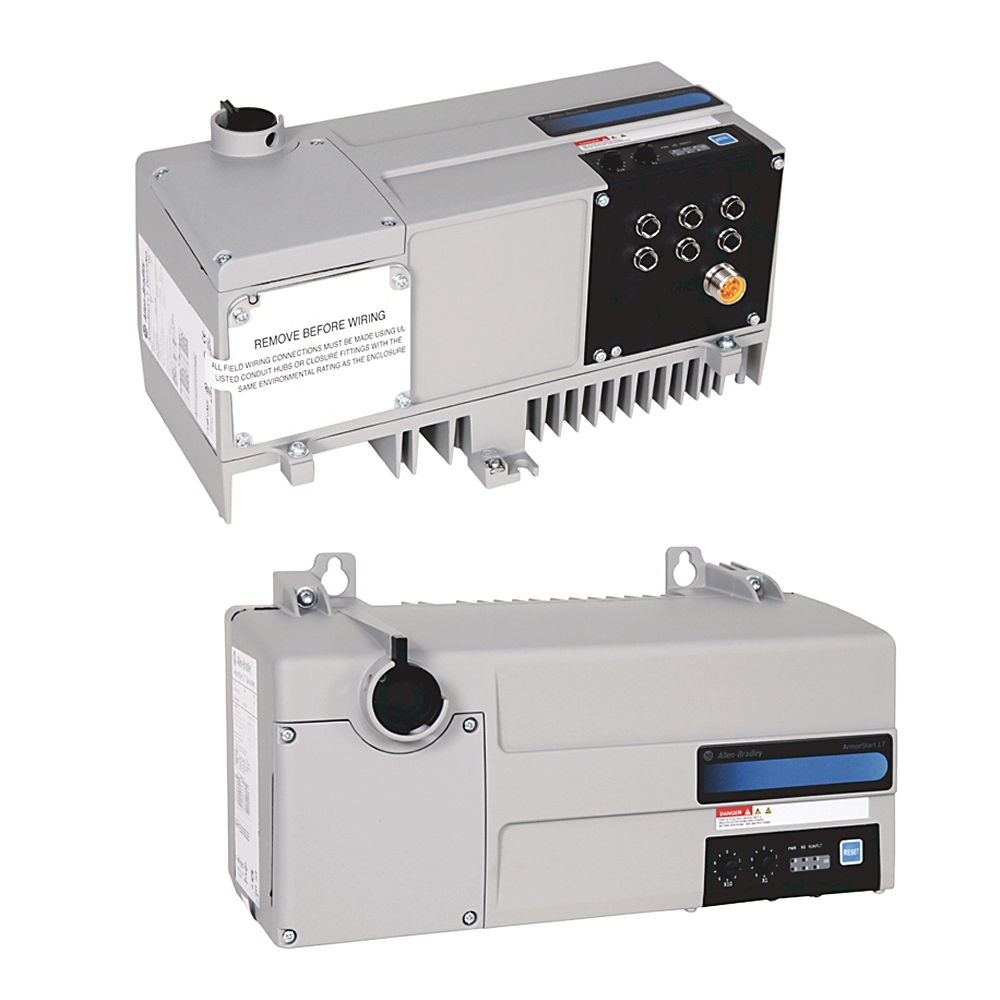

| Width | 381 mm |
| Height | 219.32 mm |
| Depth | 202.27 mm |
| Number of poles | Power circuit: 3 |
| Wire size | Source brake: #16 ...#10 AWG (1.0...4.0 mmò) per terminal |
| Degree of protection (IP) | IP66 |
| Shipping weight, approx | 7.3 kg |
| Power rating | Source brake: 10 A @ 600V AC |
| Shock | Operational: 30 G, exceeds IEC 60947-1 |
| Gland plate options | Conduit entry for power and motor (no cable) |
| Wire strip length | 0.35 ñ0.01 inch (9 ñ2 mm) |
| Vibration | Operational: 2.5 G @ tested to MIL-STD-810G, exceeds IEC 60947-1 |
| Tightening torque | Source brake: 4.8 ñ 2 lb.in (0.5 ñ 0.2 Nm) |
| Mechanical life operations | Disconnect: 200000 |
| Disconnect lock out | Maximum of 3/8 inch (9.5 mm) diameter lock shackle or hasp |
| Wire type | Multi-strand copper wire |
| Disconnect LOTO locks | Up to 2 locks or hasps are supported |
| Baud rates | 500 kBps |
| Communication | DeviceNet |
| Web server | HTTP 1.1 |
| Input ON-state current (pin 4) | 2.6 mA @ 24V DC |
| DeviceNet input current surge | 500 mA @ peak inrush |
| Operating dielectric withstand | 2000V AC per IEC |
| DeviceNet input current | 50 mA @ 24V DC |
| Overvoltage category | Power circuit: III |
| Fuse rating | UL Class fuse (45 A, maximum) |
| DeviceNet supply voltage rating | Range 11...25V DC, 24V DC nominal |
| Control voltage | Internal power supply |
| Insulation voltage (Ui) | Output ratings: rated 2000V AC per IEC |
| Faultless power ride through | Power circuit: 10 ms |
| Rated input operation voltage | 24V DC |
| Input OFF-state current | <1.5 mA |
| Input OFF-state voltage | 5V DC |
| Distance, max | 500 m (1630 ft) @ 125 Kbps |
| Operating frequency | Power circuit: 50/60 Hz (ñ10%) |
| Rated operating input current, max | Power circuit: 3.7 A @ 400V AC, 50 Hz, 1.0 Hp (0.75 kW) |
| Trip rating | Power circuit: 200% hardware limit, 300% instantaneous fault |
| Short circuit coordination | Type 1 |
| Overload type | Power circuit: 150% for 60 s or 200% for 3 s @ solid-state I^2t |
| Insulation voltage | Rated 250V AC |
| Carrier frequency | Power circuit: 2...10 kHz, drive rating based on 4 kHz |
| Speed regulation - open loop with slip compensation | Power circuit: ñ2% of base speed across a 40:1 speed range |
| Dielectric withstand | Power circuit: 2500V AC per IEC |
| Concurrent TCP connections | Network connections: maximum of 5 encapsulated messages over both TCP and UDP |
| RMS symmetrical amperes | 5 kA @ 480Y/277 (short circuit current rating) |
| Power | Control circuit (external source): 6.6 W @ switched and unswitched power supply requirements |
| Current, nom | Control circuit (external source): 275 mA @ switched and unswitched power supply requirements |
| Peak inrush | Control circuit (external source): <5 A for 35 ms @ unswitched power supply requirements |
| Voltage | Control circuit (external source): 19.2...26.4V DC @ unswitched power supply requirements |
| Trip class | Power circuit: Class 10 protection with speed sensitive response and power-down overload retention function |
| Current, max | Control circuit (external source): 450 mA @ unswitched power supply requirements |
| Power, max | Control circuit (external source): 6.6 W + (24V DC x user defined) @ switched and unswitched power supply requirements |
| Over voltage | Power circuit: 380...480V AC input - trip occurs at 810V DC bus voltage (equivalent to 575V AC incoming line) |
| Under voltage | Power circuit: 380...480V AC Input - trip occurs at 390V DC bus voltage (equivalent to 275V AC incoming line) |
| Stop modes | Power circuit: multiple programmable stop modes including, ramp, coast, DC-brake, ramp to hold, and S-curve |
| Acceleration/deceleration | Power circuit: two independently programmable acceleration and deceleration times. Each time can be programmed from 0...600 s in 0.1 s increments. |
| Supporting protocol for DeviceNet | Yes |
| Application in industrial area permitted | Yes |
| Max. output frequency | 400 Hz |
| Mains frequency | 50/60 Hz |
| Number of input devices, max | 6 |
| Output OFF-state leakage current, max | 1 üA |
| Number of outputs, max | 6 |
| Input filtering | 100 õs |
| Auto-baud rate identification | Yes |
| Group 2 - slave only device type | Yes |
| Polled I/O messaging | Yes |
| Change of state messaging | Yes |
| Cyclic messaging | Yes |
| Explicit messaging | Yes |
| Full parameter object support | Yes |
| Group 4 - off-line node recovery messaging | Yes |
| Configuring consistency value | Yes |
| Unconnected messaging manager (UCMN) | Yes |
| Output supply voltage (switched power) | A1/A2 |
| Input per connection | 1/each |
| Output per connection | 1/each |
| Output blocking voltage, max | 35V DC |
| Sensor input leakage current, max | <2.5 mA |
| Type of outputs | DC sourcing |
| Sensor input operating voltage | 19.2...26V DC |
| Concurrent sessions | Web server: 20 |
| Rated output operating voltage (Ue) | 19.2...26.4V DC |
| Output operating current (Ie), nom | 500 mA per point |
| Output thermal current (Ithe), max | 500 mA per point |
| Output state | Normally open (NO) |
| Rated impulse voltage (Uimp) | Power circuit: 4 kV |
| Output utilization category | DC-1, DC-13 per IEC |
| Input ON-state voltage (pin 4), nom | 10...26.4V DC, 24V DC |
| Input supply voltage | Unswitched power A3/A2 |
| Type of inputs | 24V DC current sinking |
| Concurrent explicit messages, max (CIP Class 3) | Network connections: 6 |
| Input power terminals | Power circuit: L1, L2, L3 |
| Motor power terminals | Power circuit: T1, T2, T3 |
| Application | Power circuit: three-phase |
| Efficiency | Power circuit: 97.5% typical |
| DeviceLogix I/O response | Input ratings: 2 ms @ 500 Hz |
| Output load types | Resistive or light inductive |
| PE (earth ground) terminal | Power circuit: 4 PE terminals |
| Reset mode | Power circuit: automatic/manual |
| Input bounce filter (software configurable) | OFF-ON or ON-OFF: 0.5 ms + 64 ms |
| Class 1 connection API | Network connections: 2...3200 ms |
| Input connection type | Single keyed M12, quick disconnect |
| Output connection type | Single keyed M12, quick disconnect |
| Class 3 connection API | Network connections: 100...10000 ms |
| Output frequency | Power circuit: 0...400 Hz programmable |
| Source brake (EM brake) current | Power circuit: maximum load current of 3 A |
| Security | Web server: login and password configurable |
| Motor control type | Power circuit: slip compensation (Volts/Hz) |
| Power supply | Control circuit (external source): NEC Class 2 |
| Rated operating voltage, max | Power circuit: 400Y/230...480Y/277 (-15%, +10%) |
| Request packet interval (RPI) | Network connections: 20 ms default (2 ms minimum) |
| Webpage features | Web server: status, diagnostics and configuration tabs |
| Output overcurrent protection | 1.5 A (the sum of all outputs cannot exceed this value) |
| E-mail | Web server: support simple mail transfer protocol (SMTP) |
| Output surge suppression | Integrated diode to help protect against switching loads |
| Overvoltage protection | Control circuit (external source): reverse-polarity protected |
| Sensor sourcing input current (pin 1), max | 50 mA per point (maximum 300 mA total for sourcing one device) |
| Control ride through | Power circuit: minimum ride through is 0.5 s - typical value is 2 s |
| Motor control features | Power circuit: flying start, V/F ratio, bus regulator, 4 preset speeds |
| Output current (each) | Control circuit (external source): 500 mA @ switched power supply requirements |
| Input current (each) | Control circuit (external source): 50 mA @ unswitched power supply requirements |
| Motor cable length, max | Power circuit: 10 m (32 ft)(CE application), Power circuit: 14 m (45.9 ft) (non-CE application) |
| Number of inputs (x 50 mA) | Control circuit (external source): user defined @ switched and unswitched power supply requirements |
| Number of outputs (x 500 mA) | Control circuit (external source): user defined @ switched and unswitched power supply requirements |
| IPS option | Control circuit (internal source): an internal 50 W power supply sources 24V DC for input, outputs and logic control (3-phase line power of 400Y/230V...480Y/277V, 50/60 Hz is required) |
| I/O connections, max (CIP Class 1) | Network connections: supports up to 2 class 1 CIP connections [exclusive owner (data) or listen-only]. One connection per PLC. Listen only connection requires a data connection to be established. |
| Altitude | 1000 m |
| Storage and transportation temperature | -25 ðC |
| Conducted emission | EN 61800-3, C3 |
| Humidity | 5...95% noncondensing |
| Surge transient | 1 kV (12) L-L, 2 kV (2) L-N (earth) |
| Radiated emissions | EN 61800-3, C3 |
| Radio frequency electromagnetic field | EN 55011 Class group 2, 10V/m, 80 MHz...1 GHz |
| Degree of protection (NEMA) | 4 |
| Pollution degree | 3 |
| Radio frequency conducted disturbance immunity | 10V, 150 kHz...80 MHz |
| Electrostatic discharge | 4 kV contact and 8 kV air |
| Fast transient | 2 kV (power), 2 kV (PE), 1 kV (communications and control) |
| Operating temperature | -20...40 ðC (-4...104 ðF), up to 50 ðC (122 ðF) without derating, when properly rated line reactors are installed in branch circuit |
