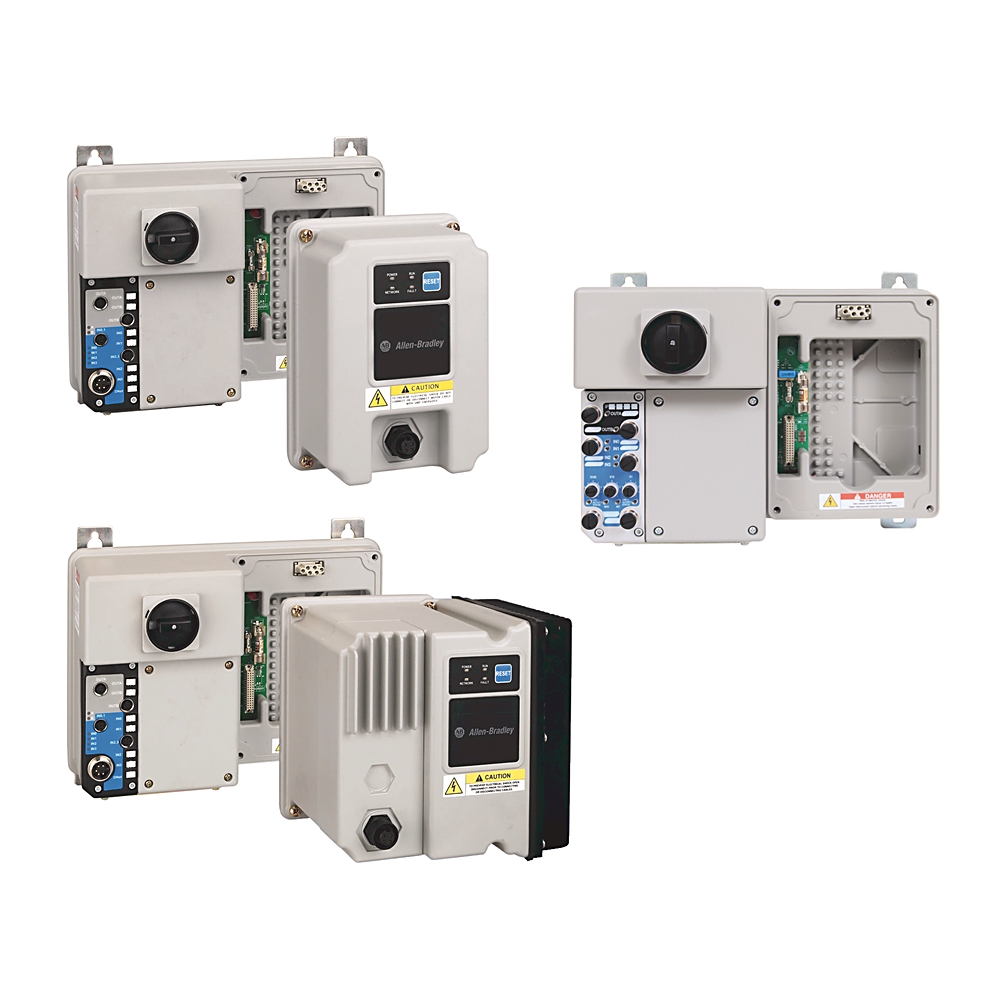

| Degree of protection (IP) | IP67 |
| Shipping weight, approx | 10.4 kg |
| Shock | Operational: 15 G |
| Wire strip length | Power and ground terminals: 0.35 inch (9 mm) |
| Vibration | Operational, 1 G, 0.15 mm (0.006 inch) displacement |
| Tightening torque | Power and ground terminals: 4.5 lb.inch per UL/NEMA (secondary terminal) |
| Mechanical life operations | Contactor C23 (AC-3): 13000000 operations per IEC |
| Disconnect lock out | Recommend 8 mm (5/16 inch) lock shackle or hasp. The hasp should not exceed 8 mm (5/16 inch) when closed. |
| Altitude | 2000 m |
| Operating temperature | -20 ðC |
| Storage and transportation temperature | -25 ðC |
| Humidity | 5...95% (noncondensing) |
| Protection against shock | Power circuit: IP2X per IEC |
| Surge transient | 1 kV (12) L-L, 2 kV (2) L-N (earth) |
| Radiated emissions | Class A, Group 1, equivalent to C2 emissions |
| Conducted radio frequency emissions | 10V rms communications cables, 10V rms (PE), 150 kHz...80 MHz |
| Radio frequency electromagnetic field | 10V/m, 80 KHz...1 GHz, 3V/m, 1.4 GHz...2 GHz, 1V/m, 2.0 GHz ...2.7 GHz |
| Degree of protection (NEMA) | 4 |
| Pollution degree | 3 |
| Electrostatic discharge | 4 kV contact and 8 kV Air |
| Fast transient | 2 kV (power), 2 kV (PE), 1 kV (communications and control) |
| Overload current range | 1.1 A |
| Base module | Base module |
| Short circuit protection | 10 A rated device |
| DHCP timeout | Ethernet port: 30 s |
| Web server | Embedded web server |
| Overvoltage category | Control circuit: III per IEC |
| Rated operational current | Power circuit: 5.5 A maximum |
| Rated impulse voltage | Power circuit: 6 kV |
| IP address | Ethernet port: DHCP enabled by default |
| Ports | Ethernet port: embedded switch with 2 ports |
| Rated input operation voltage | Sourced from control circuit (A3/A2): 24V DC |
| Input OFF-state current | Sourced from control circuit (A3/A3): <1.5 mA |
| Module inrush current | EtherNet/IP version: 1.09 A (A1/A2 with HOA) |
| Module steady current | EtherNet/IP version: 0.3 A (A3/A2 without HOA) |
| Total control power (running) | EtherNet/IP version: 7.2 W (A3/A2 without HOA) |
| Operating frequency | Power circuit: 50/60 Hz |
| Input ON-state current | Sourced from control circuit (A3/A3): 7.2 mA @ 24V DC |
| Ethernet receptacles | Ethernet port: 2 D-coded, 4-pin female M12 connectors |
| Number of contacts | Output ratings - sourced from control circuit (A1/A2): 2 |
| Voltage status only | Sensor source: 11...26.4V DC from unswitched power (A3-A2) |
| Trip rating | 120% of full load current (FLC) setting |
| Type of current | Output ratings - sourced from control circuit (A1/A2): 24V DC |
| Input compatibility | Sourced from control circuit (A3/A3): IEC 1133 Type 1+ per IEC |
| Application in industrial area permitted (SCPD list) | Size per NFPA 70 (NEC) or NFPA 79 for group motor applications |
| ON-state voltage, max | Output ratings - sourced from control circuit (A1/A2): 1.5V DC |
| Rated output operation voltage | Sourced from control circuit (A1/A2): 26.4V DC |
| Insulation voltage | Power circuit: rated 600V |
| Communication rate | Ethernet port: 10/100 Mbs with auto negotiate half duplex and full duplex |
| Dielectric withstand | Power circuit: 2500V AC per IEC |
| Type of contacts | Output ratings - sourced from control circuit (A1/A2): normally open (N.O.) |
| Current available | Sensor source: 50 mA maximum per input, 200 mA for any single point |
| Type of control circuit | Output ratings - sourced from control circuit (A1/A2): solid state sourcing output |
| Conventional thermal current (Ith) | Output ratings - sourced from control circuit (A1/A2): 0.5 A each, 1 A maximum combined |
| Circuit breaker operational current rating, max | 60 A @ 480V (with gland type: CR or DR) |
| RMS symmetrical amperes | 65 kA @ 480Y/277V (with gland type: RR) |
| Rated operation voltage | Power circuit: 200...575V |
| 3-phase power/motor cable connection | Conduit entrance |
| Input filter - software selectable | Sourced from control circuit (A3/A3): settable from 0...64 ms in 1 ms increments (ON to OFF) |
| Fuse operational current rating, max | Time delay: 20 A @ 480Y/277V (with gland type: RR) |
| Total control power (pick up) | EtherNet/IP version: 7.2 W (A3/A2 without HOA) |
| Peak output current | Output ratings - sourced from control circuit (A1/A2): current limited 2-8 amps (5 amps nominal) @ 24V DC |
| Trip class | Class 10, 15, 20 |
| Operational power rating | Full voltage starters ââ¬Ã¢ IP67/NEMA Type 4: 3 Hp @ 460V AC, 60 Hz (Current rating 1.1...5.5 A) |
| Data | Ethernet port: Transported over both TCP and UDP, Minimum of 500 I/O packets/second (pps), Supports up to 150 concurrent TCP sockets |
| Input frequency response, max | Sourced from control circuit (A3/A3): 200 Hz (DeviceLogix response is greater than 200 Hz. Network response depends on control system network performance.) |
| Device connections | TCP port supports 5 concurrent incoming connections |
| Number of digital inputs | 4 |
| Number of digital outputs | 2 |
| Application in industrial area permitted | Yes |
| Max. output frequency | 400 Hz |
| Supporting protocol for EtherNet/IP | Yes |
| Mains frequency | 50/60 Hz |
| Short circuit protection device performance (SCPD) type | Type 1 |
| Utilization category | Power circuit: AC-3 per IEC |
| Security | Web server: login and password configurable |
| Input OFF-state voltage range | Sourced from control circuit (A3/A3): 0...5V DC |
| Input ON-state voltage range | Sourced from control circuit (A3/A3): 10...26V DC |
| Configuration | Web server: status, diagnostics and configuration tabs |
| Web server: support simple mail transfer protocol (SMTP) | |
| Off-state leakage current, max | Output ratings - sourced from control circuit (A1/A2): 10 üA |
| Blocking voltage, max | Output ratings - sourced from control circuit (A1/A2): 35V DC |
| Fault recovery | DLR: ring recovery time is less than 3 ms for a 50 node network |
| DC control voltage | EtherNet/IP version: 24V DC (A1/A2, A3/A2, without and without HOA) |
| Device level ring | Beacon-based performance including IEEE 1588 end to end transparent clock |
| Load types | Output ratings - sourced from control circuit (A1/A2): resistive or light inductive |
| Surge suppression | Output ratings - sourced from control circuit (A1/A2): integrated diode, clamps @ 35V DC |
| Cycle rate, max | Output ratings - sourced from control circuit (A1/A2): 30 operations/minute capacitive and inductive loads |
| Thermo-protection | Output ratings - sourced from control circuit (A1/A2): integrated short circuit and over current protection |
| Wire size | Power and ground terminals: #16...#10 AWG per UL/NEMA (primary/secondary terminal) |
| Number of poles | 3 |
