ROCKWELL AUTOMATION 22B-B017N104
ROCKWELL AUTOMATION 22B-B017N104
ROCKWELL AUTOMATION 22B-B017N104
ROCKWELL AUTOMATIONNot available

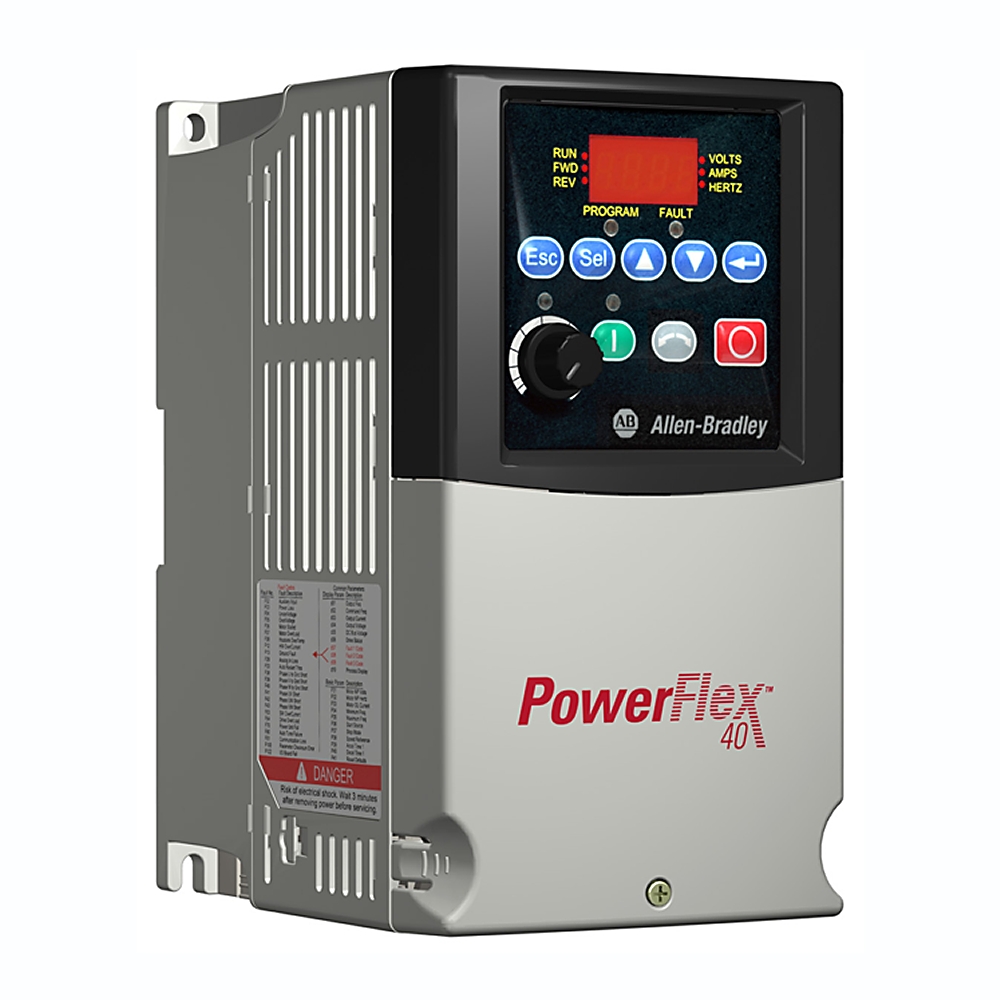

PowerFlex 40- 3.7 kW (5 HP) AC Drive

PowerFlex 40 AC Drive, 240 (208)VAC, 3PH, 17 Amps, 3.7 kW, 5 HP,Frame Size B, IP20 (Open), LED Display, Digital Keypad, No CE Compliant Filter, RS485
Product Code: 22B-B017N104
Partner cod.: 22B-B017N104
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Features
Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
V/Hz and sensorless vector control, as well as process PID
StepLogic® allows operation as an independent position controller
Zero Stacking™ Drives for ambient temperatures up to 40 °C (104°F)
Configuration and programming via integral LCD keypad, remote keypad, or software
Power ratings:
Optional IP30 NEMA/UL Type 1 conversion kit
Optional serial converter module for use with any controller with DF1 messaging
Optional DeviceNet™, ControlNet™, and EtherNet/IP™, Profibus DP, BACnet™, and LonWorks® communication modules
Drive overload protection, ramp regulation, and flying start
Integral RS-485 communication
Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduce development time
Technical Specs
Specifications
Voltage Rating:240 (208)VAC, 3PH
Enclosure:IP20 (Open)
Base Drive Information
Input Voltage:240 (208)VAC, 3PH
Output Current:17 Amps
Enclosure Style:IP20 (Open)
Frame Size:Frame Size B
Installed Options
Human Interface Module (Type):LED Display, Digital Keypad
EMC Filtering Options:No CE Compliant Filter
Internal Communication Module:RS485
Description
PF40 AC Drive, 3.7 kW (5 HP), 240V AC Input, 3 PH, 50-60 Hz, 17.5 A Output, IP20, UL-NEMA Type Open, Panel Mounting, With Brake IGBT, FrameB, 0.98 PF, Integral Keypad And Led Display, RS485, Fixed Terminal Block Connections
