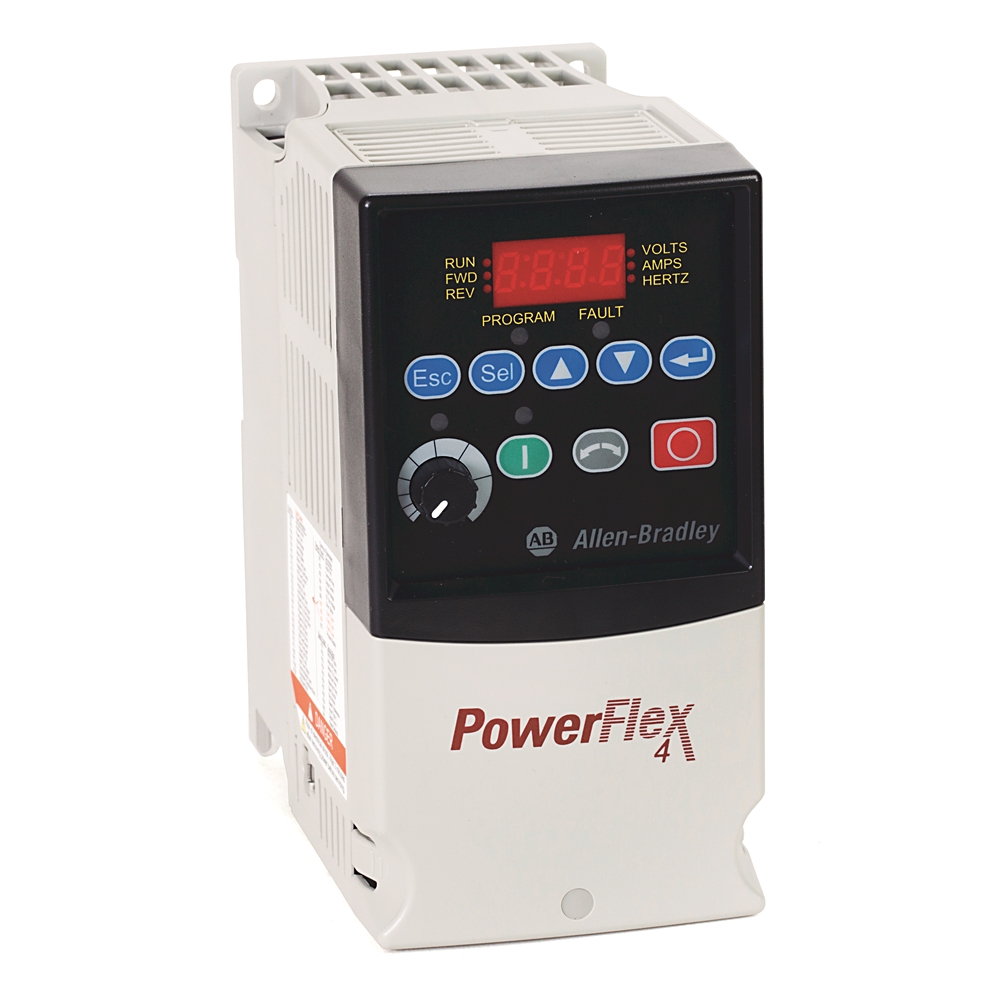

PowerFlex 4- 0.4 kW (0.5 HP) AC Drive

PowerFlex4 AC Drive, 240VAC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

Product Code: 22A-A2P3N104 Copia - Copy

Partner cod.: 22A-A2P3N104 Copia - Copy

ROCKWELL AUTOMATION

Tecnichal data

Technical Specs

Description

Download

Tecnichal data

Features
Configuration and programming via integral LCD keypad or software
Drive overload protection, ramp regulation, and flying start
Power Ratings
Optional serial converter module for use with any controller with DF1 messaging
V/Hz control, slip compensation
Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
Integral RS-485 communication
Zero StackingÃ¢¢ Drives for ambient temperatures up to 40 °C (104 °F)
Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduce development time

Technical Specs

Specifications
Voltage Rating:240VAC, 1PH
Enclosure:IP20 (Open)
Base Drive Information
Input Voltage:240VAC, 1PH
Output Current:2.3 Amps
Enclosure Style:IP20 (Open)
Frame Size:Frame Size A
Installed Options
Human Interface Module (Type):LED Display, Fixed Digital Keypad
EMC Filtering Options:No CE Compliant Filter
Communication Module:RS485

Description

AC Drive, 0.4 kW (0.5 HP), 240V AC Input, 1 PH, 50-60 Hz, 2.3 A Output, IP20, UL-NEMA Type Open, Panel Mounting, With Brake IGBT, FrameA, 0.95 PF, Integral Keypad And Led Display, RS485, Fixed Terminal Block Connections.

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

drives-um001_-en-p.pdf
