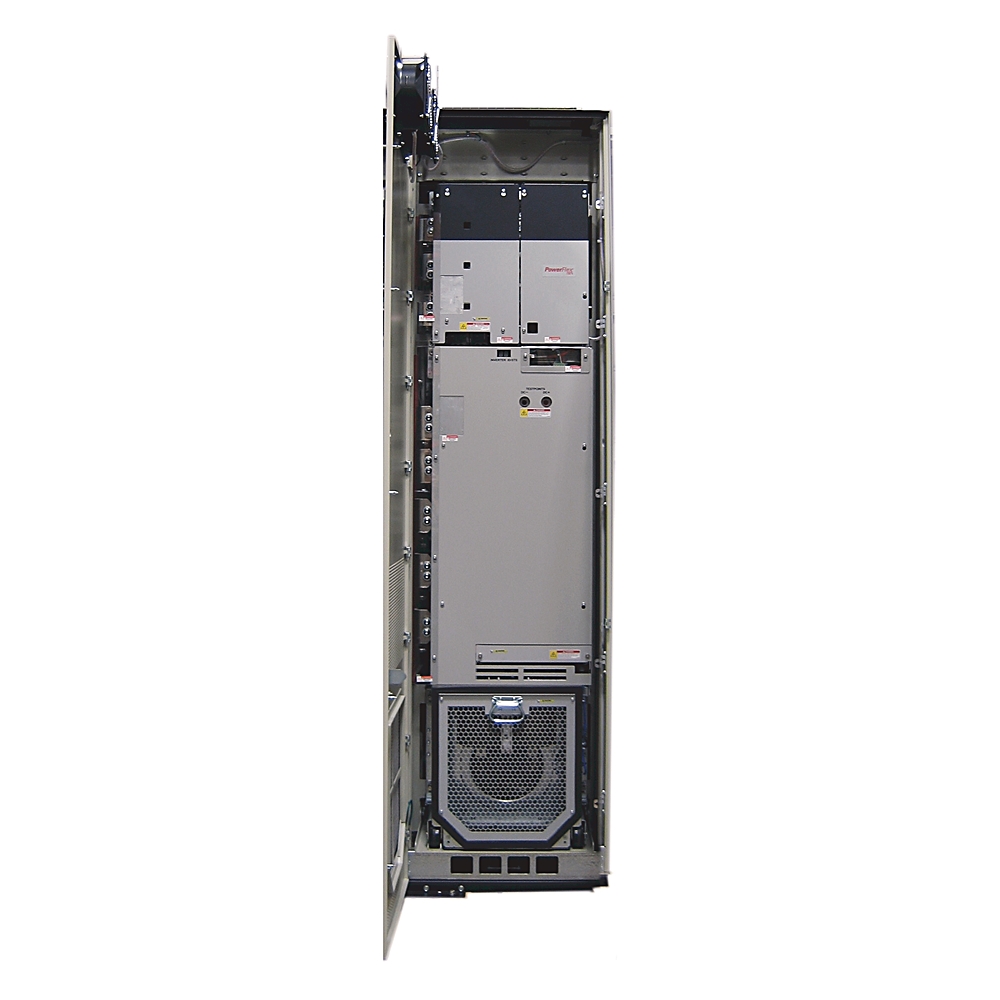

755 AC Drive, Air Cooled, Type 1, 600mm Deep MCC Style, 480 VAC, 3 PH, 545 A 450 Hp ND 350 Hp HD, AC In w/Prchg, no DC Terminals, Frame 8, Filtered, CM Jumper Installed, None, Door Mounted HIM IP20/NEMA1, No Option, No Option, No Option, No Option, No

PowerFlex 755 AC Drive, with Embedded Ethernet/IP, Standard Protection, Forced Air, AC Input with Precharge, no DC Terminals, Type 1, IP20 600mm Deep MCC Style, 545 Amps, 500HP LD, 450HP ND, 350HP HD, 480 VAC, 3 PH, Frame 8, Filtered, CM Jumper Installed, None, Enhanced LCD, Full Numeric, Handheld/Local HIM

Product Code: 20G1ABD545JN2NNNNN Copia - Copy

Partner cod.: 20G1ABD545JN2NNNNN Copia - Copy

ROCKWELL AUTOMATION

Tecnichal data

Technical Specs

Description

Download

Tecnichal data

Product TypeMiscellaneous Hardware and CablesCatalog Number20-750-GRILL1-F8DescriptionPowerFlex 755, Frame 8-10, IP20/NEMA 1, Cabinet Roof Debris ScreenQuantity1

Technical Specs

Base Drive Information
Bulletin Number:PowerFlex 755 AC Drive, with Embedded Ethernet/IP
Voltage Class:480 VAC, 3 PH
Output Current:545 Amps, 500HP LD, 450HP ND, 350HP HD
Enclosure Type:Type 1, IP20 600mm Deep MCC Style
Input Type:AC Input with Precharge, no DC Terminals
Frame Size:Frame 8
EMC Filtering Options:Filtered, CM Jumper Installed
Dynamic Braking:None
HIM:Enhanced LCD, Full Numeric, Handheld/Local HIM

Description

755 AC Drive, Air Cooled, Type 1, 600mm Deep MCC Style, 480 VAC, 3 PH, 545 A 450 Hp ND 350 Hp HD, AC In w/Prchg, no DC Terminals, Frame 8, Filtered, CM Jumper Installed, None, Door Mounted HIM IP20/NEMA1, No Option, No Option, No Option, No Option, No Option, Carton & Documents

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

750-in020_-en-p.pdf

750-td001_-en-p.pdf
