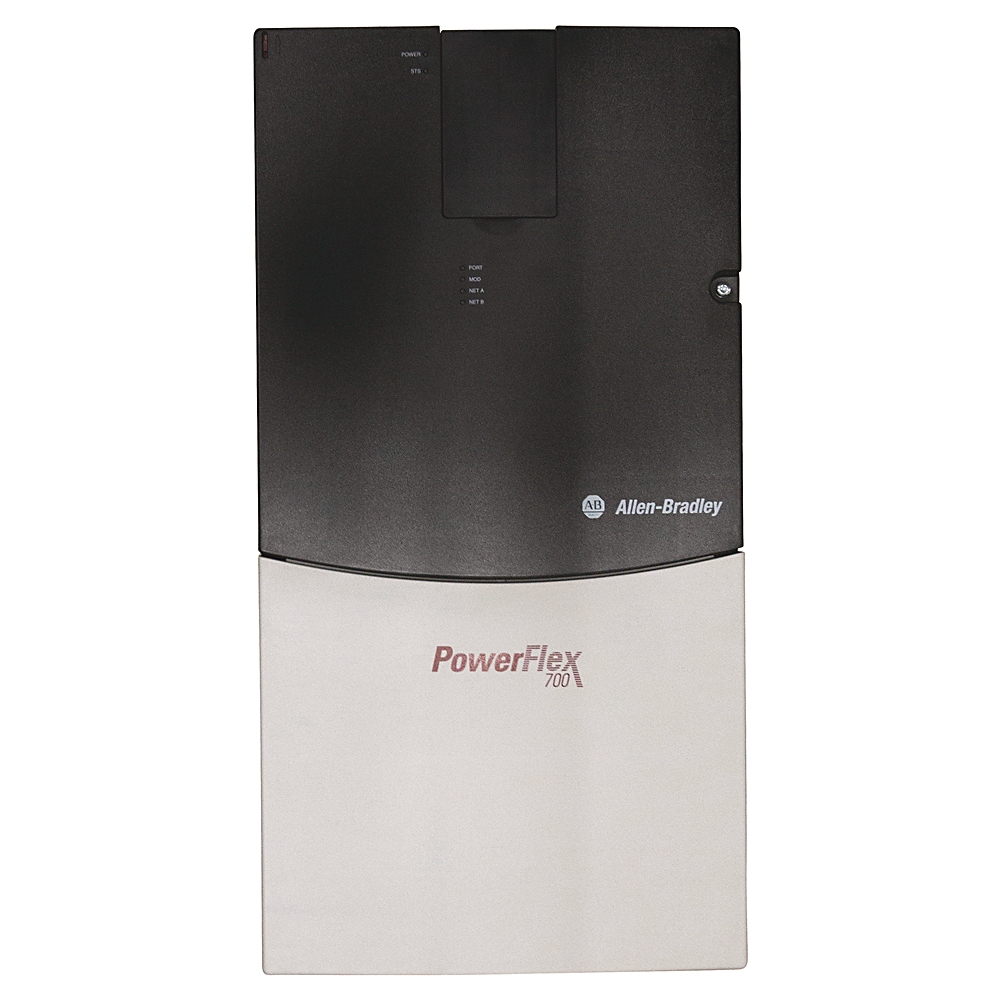

20DP205A0EYNANANE ROCKWELL AUTOMATION

Degree of protection (IP)	IP20
Shock	10 G peak for 11 ms duration (Ã±1.0 ms)
PWM frequency	4 kHz @ 540V DC, normal duty
Vibration	0.152 mm (0.006 in.) displacement, 1 G peak, 5.5 Hz
Number of analogue outputs	2
Mains voltage	540 V
Integrated breaking resistance	No
Max. output voltage	932 V
Brake IGBT	Brake IGBT installed
Internal communication module	No communication module
Fuse current rating	350 A @ 540V DC, normal duty
Input voltage rating	540V DC precharge
Displacement power factor	0.98 across speed range
Output current, continuous	205 A @ 540V DC, normal duty
Output current, 1 min	255 A @ 540V DC, heavy duty
Output current, 3 sec	313 A @ 540V DC, heavy duty
Logic control ride-thru	0.25 seconds, drive not running
Brake resistor	No internal brake resistor
Input current rating	226 A @ 540V DC, normal duty
Rated power rating	90 kW @ 540V DC, heavy duty
Documentation	English documentation
Carrier frequency	Drive rating: 4 kHz, settings: 2, 4, 6, 8, 10 kHz (6 kHz is for V/Hz operation only)
Electronic motor overload protection	Class 10 motor overload protection according to NEC article 430 and motor over-temperature protection according to NEC article 430.126 (A)(2). UL 508C file E59272
Heat sink thermistor	Monitored by microprocessor overtemperature trip
Drive to motor power ratio, max	The drive to motor rating cannot exceed a 2:1 ratio
Stop modes	Multiple programmable stop modes including Ã¢Ã¢¬Ã¢ Ramp, Coast, and Current Limit
Acceleration/deceleration	Independently programmable accel and decel times adjustable from 0 to 6553.5 in 0.1 second increments
Number of digital inputs	6
Number of digital outputs	2
Number of analogue inputs	3
Human interface model	No HIM (no blank plastic inserted)
Additional configuration	Phase II control
Max. output frequency	400 Hz
Internal EMC filtering	With EMC filter & common mode choke
Watt loss	1908 W @ 540V DC, 90 kW heavy duty
Feedback option	Future use
Torque regulation	Torque regulation - without feedback: Ã±5%, 600 rad/sec bandwidth
Enclosure type	IP20/NEMA/UL Type 1
Output current rating	205 amps, 110 kW normal duty, 90 kW heavy duty, frame 6
Control options	Phase II control, expanded cassette
Drive overcurrent trip	Software current limit: 105% of motor rated to 200% of drive rated current
Efficiency	97.5% at rated amps, nominal line volts
Speed control	Speed regulation - without feedback: 0.1% of base speed across 120:1 speed range, 120:1 operating range, 50 rad/sec bandwidth
Current limit capability	Independent motoring and regenerative power limits programmable to 800% of rated output current
Selectable motor control	Field oriented control with and without a feedback device and permanent magnet motor control
Input phases	Six-pulse, 3-phase input provides full rating for all drives, single-phase operation provides 50% of rated current
Control method	Induction motor and brushless motor: sine coded PWM with programmable carrier frequency, indirect self organized, field-oriented control, current-regulated, ratings apply to all drives, refer to the PowerFlex 700S Phase ll control reference manual, public
Number of phases output	3
Number of phases input	3
Relative symmetric net voltage tolerance	10 %
Input frequency, max	400 Hz
Output frequency range	0 Hz
DC bus undervoltage trip	Adjustable
Output voltage range	0 to rated motor voltage
Power ride-thru	15 milliseconds at full load
S-curve time	Adjustable 0.5...4.0 seconds
Short circuit trip	Phase-to-phase on drive output
Ground fault trip	Phase-to-ground on drive output
Control logic noise immunity	Showering arc transients upto 1500V peak
Line transients	Up to 6000 volts peak per IEEE C62.41-1991
Intermittent overload	110% overload capability for up to 1 minute, 150% overload capability for up to 3 seconds
Short circuit current, max	Using recommended fuse or circuit breaker type: maximum short circuit current rating to match specified fuse/circuit breaker capability Ã¢Ã¢°¤200000 Amps
Encoder voltage supply	5V DC or 12V DC 320 mA/channel, 5V DC minimum high state voltage state of 0.4V DC, 12V DC minimum high state voltage of 7.0V DC, maximum low state voltage of 0.4V DC
Height, approx	850.0 mm
Depth, approx	275.5 mm
Width, approx	435.8 mm
Weight, approx	Drive: 71.44 kg
Sound level	Frame 6: 72 dB @ 300 CFM fan speed
Altitude	1000 m (3300 ft.) maximum without derating
Degree of protection (NEMA)	1
Atmosphere	Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors, or dust, If the drive is not going to be installed for a period of time, it must be stored in an area where it will not be exposed to a corrosi
Operating temperature	40 Ã°C @ 540V DC, normal duty
Storage temperature	-40 Ã°C
Relative humidity	5...95% noncondensing
Surrounding air temperature without derating	NEMA/UL Type 1: 0Ã° to 40Ã° C (32Ã° to 104Ã° F)
