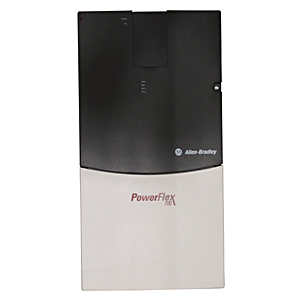

20BF098A0AYNANC0 ROCKWELL AUTOMATION

Degree of protection (IP)	IP20
Shock	15 G peak for 11 ms duration (Ã±1.0 ms)
PWM frequency	2 kHz @ 690V AC
Vibration	0.152 mm (0.006 inch) displacement, 1 G peak
Number of analogue outputs	2
Mains voltage	690 V
Integrated breaking resistance	No
Brake IGBT	Brake IGBT installed
Internal communication module	No communication module
Input voltage rating	690V AC, 3-phase, 50 Hz
AC input undervoltage trip	Frames 5Ã¢Ã¢¬¦6: 345V AC @ 600/690V
Bus voltage, nom	Frames 0...5: 932V DC @ 600/690V
Bus undervoltage shutoff/fault	Frames 0...5: 437V DC @ 600/690V
Bus overvoltage trip	Frames 0...5: 1162V DC @ 600/690V
Output voltage rating	0...690V AC @ 690V AC, 1-phase
Circuit breaker current rating, max	375 A @ 690V AC, 3-phase, normal duty
Output current rating, continuous	98 A @ 690V AC, 3-phase, normal duty
Output current rating, 1 min	123 A @ 690V AC, 3-phase, heavy duty
Output current rating, 3 sec	140 A @ 690V AC, 3-phase, heavy duty
Logic control ride-thru	0.5 seconds minimum, 2 seconds typical
Brake resistor	No internal brake resistor
Input current rating	94.7 A @ 690V AC, 3-phase
Documentation	Manual
Carrier frequency	2, 4, 8, and 10 kHz. Drive rating based on 4 kHz
Encoder quadrature	90 degrees, Ã±27 degrees at 25 Ã°C (77 Ã°F)
AC input overvoltage trip	Frames 5...6: 818V AC @ 600/690V
Input power rating	94.4 kVA @ 690V AC, 3-phase, heavy duty
Dual element time delay fuse current rating	125...200 A @ 690V AC, 3-phase, normal duty
Non-time delay fuse current rating	125...375 A @ 690V AC, 3-phase, normal duty
Digital input latency, typical	9.2 ms @ stop signal for SVC motor control
Heat sink thermistor	Monitored by microprocessor overtemp trip
Digital input latency	9.2...16.0 ms @ start signal for SVC motor control
Drive to motor power ratio, max	Recommended not greater than 2:1 ratio
Stop modes	Multiple programmable stop modes including Ã¢Ã¢¬Ã¢ Ramp, Coast, DC-brake, Fast brake, Ramp-to-hold and S-curve
Frequency accuracy	Digital input: within Ã±0.01% of set output frequency
Acceleration/deceleration	Two independently programmable accel and decel times. Each time can be programmed from 0...3600 seconds in 0.1 second increments
Analog input latency, typical	6.4 ms @ speed signal for SVC motor control
Number of digital inputs	6
Number of digital outputs	3
Number of analogue inputs	2
Internal watts loss	407 W @ 690V, 90 Hp normal duty (IP20, NEMA/UL Type 1)
Supporting protocol for DeviceNet	Yes
Human interface model	No HIM (blank plate inserted)
Max. output frequency	420 Hz
External watts loss	1389 W @ 690V, 90 Hp normal duty (IP20, NEMA/UL Type 1)
Total watts loss	1796 W @ 690V, 90 Hp normal duty (IP20, NEMA/UL Type 1)
Supporting protocol for EtherNet/IP	Yes
Mains frequency	50 Hz
Actual short circuit rating	Determined by AIC rating of installed fuse/circuit breaker
Internal EMC filtering	With EMC filter with common mode choke
Custom drive/firmware	No custom firmware
Feedback option	No feedback
Analog input latency	4.8...12.4 ms @ speed signal for SVC motor control
Torque regulation	Without feedback: Ã±5 %, 600 rad/sec bandwidth
Enclosure type	IP20/NEMA/UL Type 1
Output current rating	98 amps, 90 kW normal duty, 75 kW heavy duty, frame 6
Control options	Vector control with 24V DC I/O
Drive overcurrent trip	Instantaneous current limit: 220...300% of rated current (dependent on drive rating)
Efficiency	97.5% at rated amps, nominal line volts
Encoder supply	12V, 250 mA. 12V, 10 mA minimum inputs isolated with differential transmitter, 250 kHz maximum
Speed control-speed regulation	Without feedback (Vector Control Mode): 0.1 % of base speed across 120:1 speed range, 120:1 operating range, 50 rad/sec bandwidth
Current limit capability	Proactive current limit programmable from 20...160% of rated output current, Independently programmable proportional and integral gain
Selectable motor control	Sensorless vector with full tuning. Standards V/Hz with full custom capability and vector control
Frequency control-speed regulation	With slip compensation (Volts per Hertz mode): 0.5% of base speed across 40:1 speed range, 40:1 operating range, 10 rad/sec bandwidth
Input phases	3-phase input provides full rating for all drives. 1-phase operation possible on certain drives and provides 50 % of rated current. Frames 0...6: drive can be supplied as 6 pulse or 18 pulse in an engineered package.
Control method	Sine coded PWM with programmable carrier frequency, ratings apply to all drives, the drive can be supplied as 6 pulse or 18 pulse in an engineered solution
Encoder requirements	Encoders must be line driver type, quadrature (dual channel) or pulse (single channel), 8...15V DC output (4...6V DC when jumpers are in 5V position), single-ended or differential and capable of supplying a min. of 10 mA per channel, maximum input frequen
Number of phases output	3
Number of phases input	3
Relative symmetric net voltage tolerance	10 %
With control element	Yes
Supporting protocol for LON	Yes
Supporting protocol for TCP/IP	Yes
Supporting protocol for PROFIBUS	Yes
Supporting protocol for CAN	Yes
Supporting protocol for Modbus	Yes
Motor overload protection	Frames 0...6 vector control: powerflex 700 drives with vector control, which is identified by a C or D in position 15 of the catalog number, provide class 10 motor overload protection according to NEC article 430 and motor overtemperature protection acco
Input frequency tolerance	47 Hz
Encoder duty cycle	50% Ã±10%
Displacement power factor (all drives)	0.98 across speed range
Short circuit rating, max	200000 amps symmetrical
Output voltage range	0 to rated motor voltage
Encoder type	Incremental, dual channel
Power ride-thru	15 milliseconds at full load
Short circuit trip	Phase-to-phase on drive output
Ground fault trip	Phase-to-ground on drive output
Drive to motor power ratio, min	Recommended not less than 1:2 ratio
Control logic noise immunity	Showering arc transients upto 1500V peak
Line transients	Up to 6000 volts peak per IEEE C62.41-1991
Intermittent overload	110% overload capability for up to 1 minute, 150% overload capability for up to 3 seconds
Height, approx	IP54, NEMA type 12 standalone: 1828.8 mm
Depth, approx	IP54, NEMA type 12 standalone: 487.8 mm
Width, approx	IP54, NEMA type 12 standalone: 711.3 mm
Weight, approx	IP54, NEMA type 12 standalone: 229.07 kg (drive and packaging weight)
Sound level	Frame 6: 72 dB @ 300 CFM fan velocity
Altitude	1000 m (3300 ft.) maximum without derating
Degree of protection (NEMA)	1
Surrounding air temperature	IP20, NEMA/UL type 1 (with top label): 0...50 Ã°C (0...122 Ã°F) @ frames 5Ã¢Ã¢¬¦6, most ratings
Atmosphere	Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors or dust, If the drive is not going to be installed immediately, store the drive where it is not exposed to a corrosive atmosphere
Operating temperature	40 Ã°C @ 690V AC
Storage temperature	-40 Ã°C
Relative humidity	5...95% noncondensing
Pollution degree 1 according to EN 61800-5-1	No pollution occurs, only dry non-conductive pollution occurs, and has no influence
Pollution degree 4 according to EN 61800-5-1	The pollution generates persistent conductivity caused, for example, by conductive dust, rain or snow
Pollution degree 3 according to EN 61800-5-1	Conductive pollution occurs, dry non-conductive pollution occurs and becomes conductive due to condensation
Pollution degree 2 according to EN 61800-5-1	Normally only non-conductive pollution occurs, Occasionally a temporary conductivity, caused by condensation is expected when the drive is out of operation
Surrounding environment pollution degree	All enclosures are acceptable for pollution degree 1 and 2, an enclosure that meets or exceeds IP54, NEMA/UL Type 12, is required for pollution degree 3 and 4
