ROCKWELL AUTOMATION 20BC125A0AYNANC0
ROCKWELL AUTOMATION 20BC125A0AYNANC0
ROCKWELL AUTOMATION 20BC125A0AYNANC0
ROCKWELL AUTOMATIONAvailable

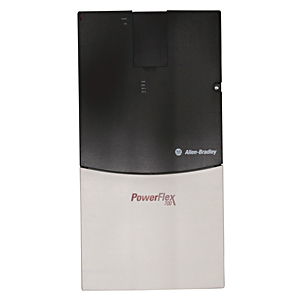

PowerFlex 700 AC Drive 20B

PowerFlex700 AC Drive, 400 VAC, 3 PH, 125 Amps, 55 kW Normal Duty, 45 kW Heavy Duty, IP20 / Type 1, with conformal coating, No HIM (Blank Plate), Brake IGBT Installed, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), No Communication Module, Vector Control with 24V I/O, No Feedback
Product Code: 20BC125A0AYNANC0
Partner cod.: 20BC125A0AYNANC0
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Tecnichal data
Degree of protection (IP)IP20
Shock15 G peak for 11 ms duration (±1.0 ms)
Vibration0.152 mm (0.006 inch) displacement, 1 G peak
Number of analogue outputs2
Mains voltage400 V
Integrated breaking resistanceNo
Number of digital inputs6
Number of digital outputs3
Number of analogue inputs2
Supporting protocol for DeviceNetYes
Max. output frequency420 Hz
Supporting protocol for EtherNet/IPYes
Line voltage, nom400V @ 380...480V drive rating, 400V nominal motor voltage
Mains frequency50 Hz
Efficiency97.5% at rated amps, nominal line volts
Number of phases output3
Number of phases input3
Relative symmetric net voltage tolerance10 %
With control elementYes
Supporting protocol for LONYes
Supporting protocol for TCP/IPYes
Supporting protocol for PROFIBUSYes
Supporting protocol for CANYes
Supporting protocol for ModbusYes
Input frequency tolerance47 Hz
Altitude1000 m (3300 ft.) maximum without derating
Degree of protection (NEMA)1
Operating temperature50 °C @ 400V AC
Storage temperature-40 °C
Relative humidity5...95% noncondensing
Technical Specs
Lifecycle Status Note
LifeCycle Status Note:PowerFlex 700 Frame 7-10 Drives are now Discontinued. We recommend that you consider the new generation PowerFlex 755 drive family as an alternative.
Base Drive Information
Input Voltage:400 VAC, 3 PH
Output Current:125 Amps
Enclosure:IP20 / Type 1, with conformal coating
Frame Size:Frame Size 5
I/O:Vector Control with 24V I/O
Brake IGBT:Brake IGBT Installed
Brake Resistor:No Brake Resistor
EMC Filtering Options:Second Environment Filter per CE EMC directive (89/336/EEC)
Options Information
Base Plus Options:Base Plus Options Method
Internal Communication Module:No Communication Module
Description
20B, 125 A at 55 kW, 400V AC Three-Phase, IP20/NEMA/UL 1, Vector Ctrl W/ 24V I/O, No Feedback, No HIM - Blank Plate, No Communication Module, W/ EMC Filt & ComModeChoke, Brake IGBT Installed, No Internal Brake Resistor, Size 5 Frame, No Custom Firmware, Documentation
