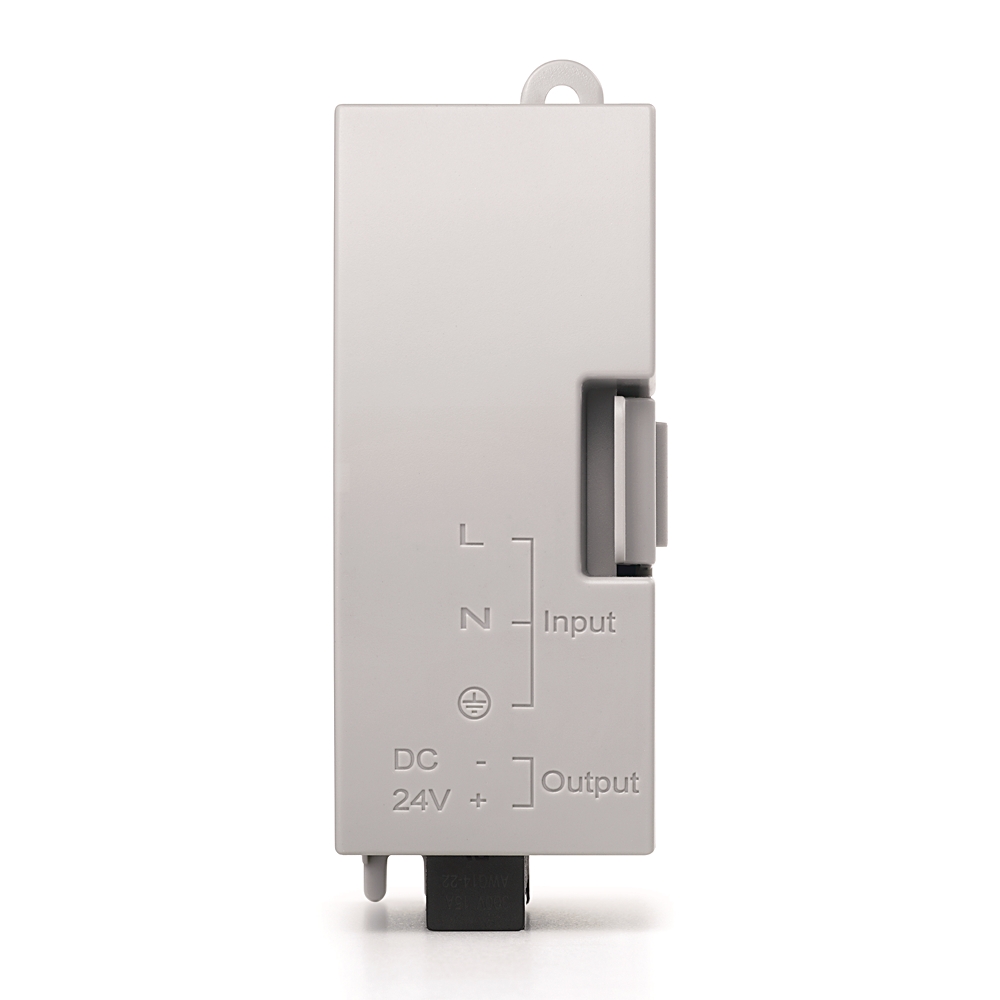

2080-PSAC-12W ROCKWELL AUTOMATION

Tecnichal data

Width	39 mm
Height	90 mm
Depth	75 mm
Insulation stripping length	5 mm
Enclosure type rating	Meets IP20
Weight	Approx 0.2 kg (0.44 lb)
North American temperature code	T4
Power consumption (Output power)	21.6 W @ 50 Ã°C, 12 W @ 65 Ã°C
Supply voltage	100V...120V AC, 0.7 A, 200...240V AC, 0.4 A
Supply power	24V DC, 0.9 A @ 50 Ã°C, 24V DC, 0.5 A @ 65 Ã°C
Inrush current, max	25 A @ 132V for 10 ms, 40 A @ 265V for 10 ms
Output rating	24V, 0.9 A, 21.6 W @ 50 Ã°C, 24V, 0.5 A, 12 W @ 65 Ã°C
Power dissipation (Input power)	27 W (115V AC), 26.7 W (230V AC) @ 50 Ã°C, 15.4 W (115V AC), 15.2 W (230V AC) @ 65 Ã°C
Terminal screw torque	0.49...0.59 Nm (4.3...5.2 lb-in) (using a Phillips-head or 2.5 mm (0.10in.) flat-blade screwdriver)
Isolation voltage	250V (continuous), primary to secondary: reinforced insulation type, Type tested for 60s @ 2300V AC primary to secondary and 1350V AC primary to earth ground.
Wire size	0.32...2.1 mmÃ² (22...14 AWG) solid copper wire or, 0.32...1.3 mmÃ² (22...16 AWG) stranded copper wire, Rated at 90 Ã°C (194 Ã°F) insulation max
Suitable for safety functions	No
Redundancy	No
Supply frequency	47...63 Hz
Wiring category	2 - on power ports
Line loss ride through	10...3000 ms @ 88V AC
Vibration	IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
Relative humidity	IEC 60068-2-30 (Test Db, unpackaged damp heat), 5...95% noncondensing
Shock	Operating: 25 G, IEC 60068-2-27 (Test Ea, unpackaged shock)
Operating temperature	-20...65 Ã°C (-4...149 Ã°F), IEC 60068-2-1 (Test Ad, operating cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
Radiated RF immunity	IEC 61000-4-3: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz 10 V/m with 200 Hz 50% Pulse @ 900 MHz and 1890 MHz 10 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
Voltage variation	IEC 61000-4-11: 30% dips for 25 cycles, 60% dips for 10 cycles, 100% dips for 0.5 and 1 cycles, >95% interruptions for 250 cycles
Surrounding air temperature, max	65 Ã°C
Emissions	CISPR 11 Group 1, Class A
EFT/B immunity	IEC 61000-4-4: Ã±2 kV @ 5 kHz on power ports
ESD immunity	IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
Conducted RF immunity	IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
Surge transient immunity	IEC 61000-4-5: Ã±1 kV line-line(DM) and Ã±2 kV line-earth(CM) on power ports
Storage temperature	-40...85 Ã°C (-40...185 Ã°F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
