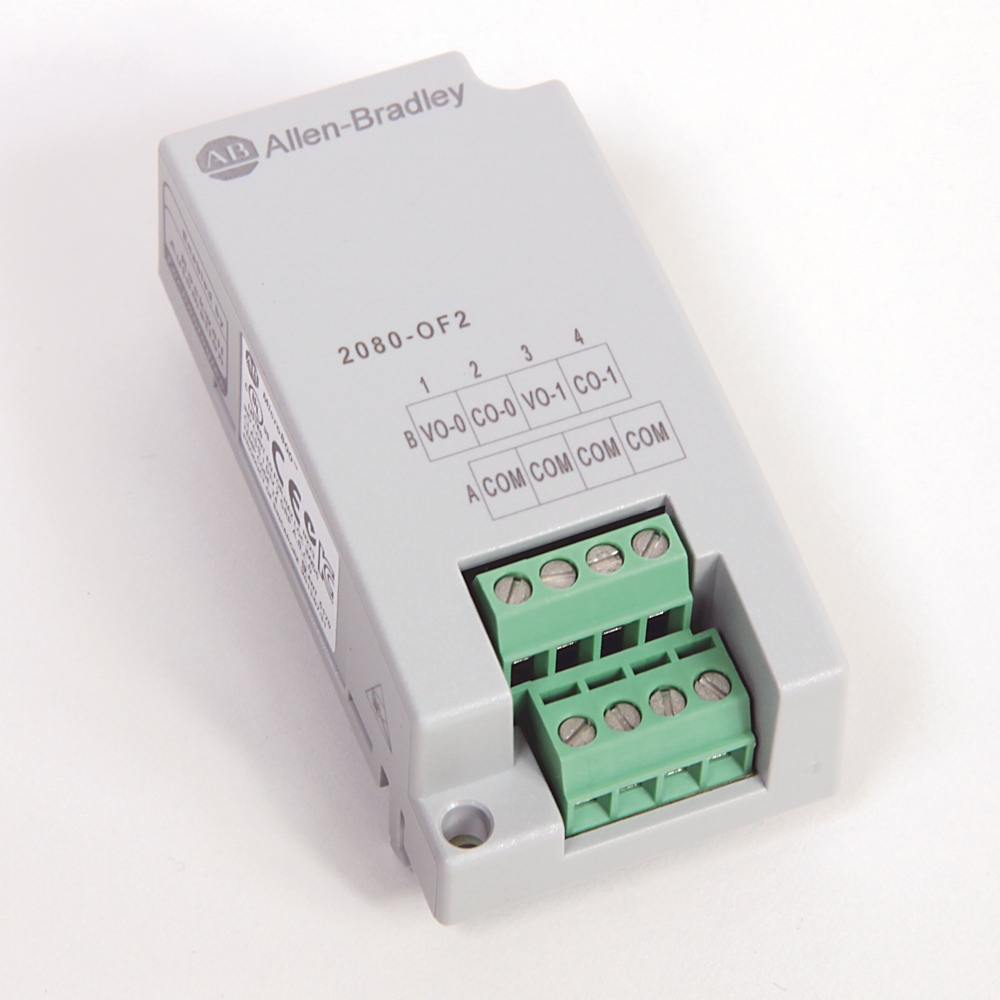

2080-OF2 ROCKWELL AUTOMATION

Tecnichal data

Number of analogue outputs	2
Resolution of the analogue outputs	12 Bit
Input, current	No
Input, voltage	No
Input, resistor	No
Input, resistance thermometer	No
Input, thermocouple	No
Input signal, configurable	No
Output, current	Yes
Output, voltage	Yes
Output signal configurable	Yes
Analogue inputs configurable	No
Analogue outputs configurable	Yes
Type of electric connection	Screw connection
Channel to channel isolation	Non-isolation
Capacitive load, max	0.1 Ã¼F @ voltage outputs
Inductive load, max	0.01 mH @ current outputs
Input group to bus isolation	Non-isolation
Wire size	Solid: 0.14 mm2 (26 AWG)...1.5 mm2 (16 AWG) @ Rated @ 90 Ã°C (194 Ã°F) insulation maximum, Stranded: 0.14 mm2 (26 AWG)...1.0 mm2 (18 AWG) @ Rated @ 90 Ã°C (194 Ã°F) insulation maximum
Suitable for safety functions	No
SIL according to IEC 61508	None
Step response to 63%	5 ms
Recommended maximum shielded cable length	10 m
Current load on voltage output, max	10 mA
D/A Conversion rate (all channels), max	2.5 ms
Open and short-circuit protection	Yes
Output overvoltage protection	Yes
Voltage ranges	0 V
Current range	0 mA
Output count range	0 to 65535
Overall accuracy	Voltage terminal: Ã±1% full scale @ 25Ã°C, Current terminal: Ã±1% full scale @ 25Ã°C
Output error	Voltage: Ã±1.5% @ over full temperature range, -20...65Ã°C (-4...149Ã°F), Current: Ã±2.0% @ over full temperature range, -20...65Ã°C (-4...149Ã°F)
Surrounding air temperature, max	65 Ã°C
North American temperature code	T4
Power consumption	<60 mA @ 24V
Emissions	CISPR 11 (IEC 61000-6-4): Class A
ESD immunity	IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
EFT/B immunity	IEC 61000-4-4: Ã±2 kV @ 5 kHz on shielded ports
Relative humidity	IEC 60068-2-30 (Test Db, unpackaged damp heat), 5...95% noncondensing
Conducted RF immunity	IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
Surge transient immunity	IEC 61000-4-5: Ã±2 kV line-earth(CM) on shielded ports
Operating temperature	-20...65 Ã°C (-4...149 Ã°F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
Radiated RF immunity	IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
Operating altitude	2000 m
Nonoperating temperature	-40...85 Ã°C (-40...185 Ã°F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
Load range on voltage output	> 1k Ã© @ 10V DC
Non-linearity	Ã±0.1% @ in percent full scale
Resistive load on current output	0...500 Ã© (includes wire resistance)
Repeatability	Ã±0.1% @ in percent full scale
Vibration	IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
Shock	IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating
Mounting torque	0.2 Nm
Terminal screw torque	0.22...0.25 Nm (1.95...2.21 lb-in) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
Explosion safety category for gas	None
Explosion safety category for dust	None
