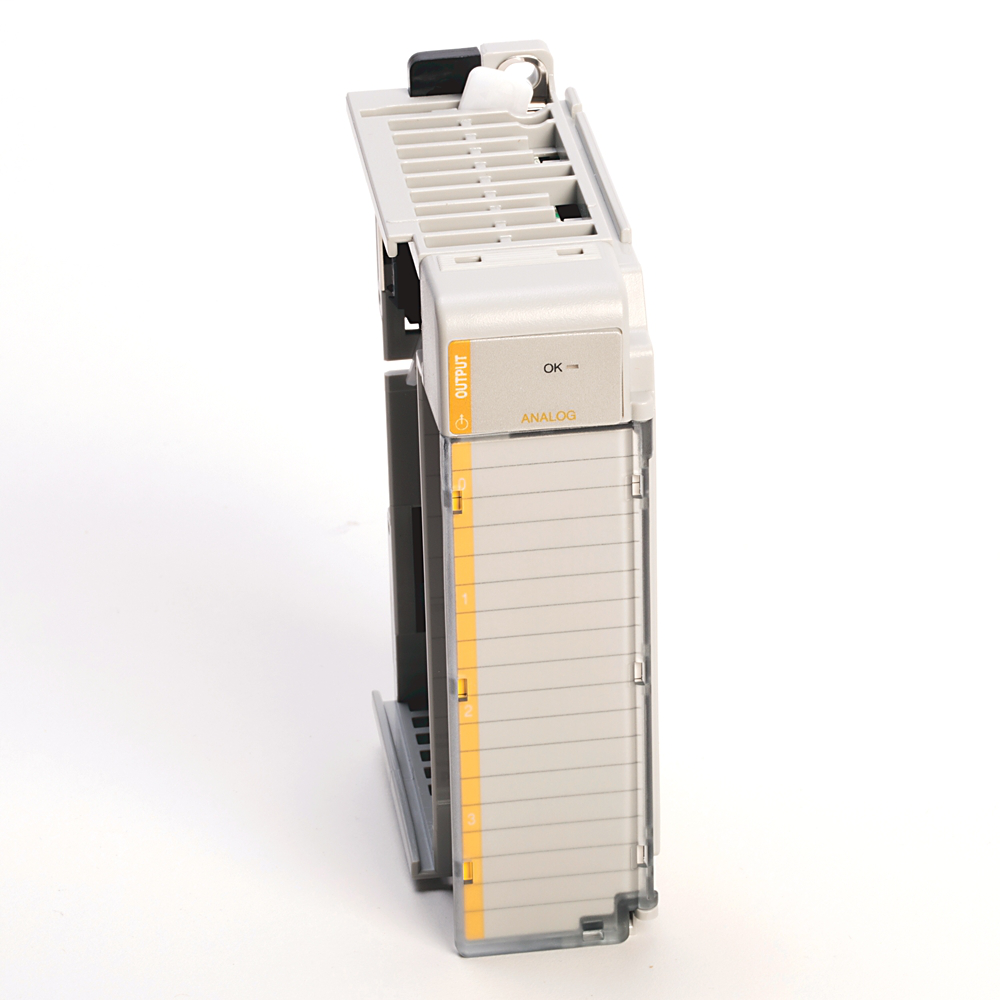

ROCKWELL AUTOMATION 1769-OF2
ROCKWELL AUTOMATION 1769-OF2
ROCKWELL AUTOMATION 1769-OF2
ROCKWELL AUTOMATIONAvailable

CompactLogix 2 Pt A/O C and V Module

2 Channel Analog Current/Voltage Output Module
Product Code: 1769-OF2
Partner cod.: 1769-OF2
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Features
Include high speed input modules
Address reserve, ASCII, Boolean control, and high-speed counter modules available
Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
Include ability to direct output device operation during an abnormal condition
Offer direct connection
Offers a smaller form factor for maximized cabinet space
Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
Supports up to 2 axes Kinematics for simple articulated robotics
Provides integrated safety and integrated motion in a single controller
Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
Offer a variety of AC and DC voltages
Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
Allow control migrations with re-use of existing 1769 I/O
Offers built-in communication ports for EtherNet/IP or ControlNet networks
Offer selectable response to a broken input sensor
Provides seamless bridging with data control and collection over the same network
Offer analog, thermocouple, and RTD modules
Include 8…32 points per module
Include on-board scaling
Support SIL 3, PLe integrity (L4xS controllers only)
Require SERCOS interface modules for motion
Include I/O packet rate of10,000 pps
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Provide optical isolation
Provide integrated serial port
Includes a built-in RS-232 serial port on every 1769-L3x controller
Support seamless bridging with data control and collection over the same network
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Simplify your system architecture with distributed I/O over EtherNet/IP
Delivers standard, safety and motion control for On-Machine™ applications
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Supports integrated safety up to SIL 3, PLe CAT 4
Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
Integrates with 1769 Compact I/O™ modules
Removes the need for lithium batteries with built-in energy storage
Available with conformal coating
Does not require a chassis
Provide high accuracy ratings
Prevents incorrect positioning of module with software keying
Support single network strategy to EtherNet/IP TCP/CIP connection 96
Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
Provide dual Ethernet ports for both DLR and linear topologies
Integrate with 1769 Compact I/O™ modules
Offers flexible user memory options
Offer user memory options ranging 2 MB to 3 MB
Provides flexibility with DIN rail or panel mounting options
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Provide individually configurable channels
Include autocalibration of inputs
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Includes individual point diagnostic status indicators to ease troubleshooting
Offer input filtering
Require a chassis
Include over-range and under-range detection and indication
Include contact output modules
Technical Specs
Specifications
Sub Brand:CompactLogix
Type:Analog Output Module
Special Features:14 bits resolution
Isolation:510V AC or 720V DC for 1 minute (qualification test), output group to bus, 30V AC/30V DC working voltage (IEC Class 2 reinforced insulation)
Enclosure:None (open-style)
Display:Status LEDs
Mounting:DIN Rail / Panel mount
Height:118mm, 4.65"
Width:35mm, 1.38"
Depth:87mm, 3.43"
Operating Temperature:0...60 °C (32...140 °F)
Output Signal:±10V, 0...10V, 0...5V, 1...5V, 0...20 mA, 4...20 mA
Removable Terminal Block:1769-RTBN18 (1 per kit)
Replacement Door Label:1769-RL2 (2 per kit)
Replacement Door:1769-RD (2 per kit)
I/O Modules
Analog Output Modules:2 Channel Analog Current/Voltage Output Module
Description
Output Module, CompactLogix, Analog, 2 Single-Ended Point Output, 2 Point, 14 Bit Resolution, Current and Voltage
Download
