ROCKWELL AUTOMATION 1769-IQ32
ROCKWELL AUTOMATION 1769-IQ32
ROCKWELL AUTOMATION 1769-IQ32
ROCKWELL AUTOMATIONAvailable

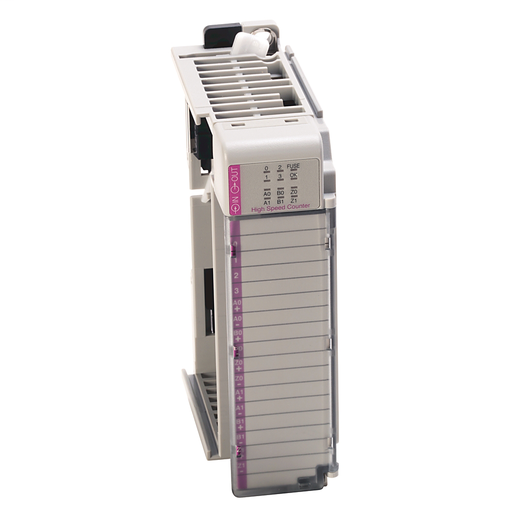

CompactLogix 32 Pt 24VDC D/I Module

32 Point 24VDC Input Module
Product Code: 1769-IQ32
Partner cod.: 1769-IQ32
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Features
Integrates with 1769 Compact I/O™ modules
Include over-range and under-range detection and indication
Include I/O packet rate of10,000 pps
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Provide optical isolation
Available with conformal coating
Provide dual Ethernet ports for both DLR and linear topologies
Delivers standard, safety and motion control for On-Machine™ applications
Provide high accuracy ratings
Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
Provides integrated safety and integrated motion in a single controller
Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
Offers a smaller form factor for maximized cabinet space
Offer user memory options ranging 2 MB to 3 MB
Include ability to direct output device operation during an abnormal condition
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
Offer a variety of AC and DC voltages
Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
Removes the need for lithium batteries with built-in energy storage
Include on-board scaling
Address reserve, ASCII, Boolean control, and high-speed counter modules available
Allow control migrations with re-use of existing 1769 I/O
Offer selectable response to a broken input sensor
Require SERCOS interface modules for motion
Does not require a chassis
Supports integrated safety up to SIL 3, PLe CAT 4
Includes individual point diagnostic status indicators to ease troubleshooting
Provides seamless bridging with data control and collection over the same network
Offer input filtering
Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
Include 8…32 points per module
Require a chassis
Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
Integrate with 1769 Compact I/O™ modules
Offers flexible user memory options
Include high speed input modules
Support single network strategy to EtherNet/IP TCP/CIP connection 96
Support seamless bridging with data control and collection over the same network
Support SIL 3, PLe integrity (L4xS controllers only)
Provide integrated serial port
Include autocalibration of inputs
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
Simplify your system architecture with distributed I/O over EtherNet/IP
Offers built-in communication ports for EtherNet/IP or ControlNet networks
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Provides flexibility with DIN rail or panel mounting options
Include contact output modules
Offer analog, thermocouple, and RTD modules
Provide individually configurable channels
Includes a built-in RS-232 serial port on every 1769-L3x controller
Prevents incorrect positioning of module with software keying
Supports up to 2 axes Kinematics for simple articulated robotics
Offer direct connection
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Technical Specs
Specifications
Sub Brand:CompactLogix
Type:Digital Input
Special Features:Sink or Sourcing Input
Isolation:1200V AC for 1 s or 1697V DC for 1 s, input point to bus and group to group. 75V DC working voltage (IEC Class 2 reinforced insulation)
Enclosure:None (open-style)
Display:Status LEDs
Mounting:DIN Rail / Panel mount
Height:118mm, 4.65"
Width:35mm, 1.38"
Depth:87mm, 3.43"
Operating Temperature:0...60 °C (32...140 °F)
Number Of Channels:32
Input Signal:10...30V DC
Removable Terminal Block:1769-RTBN18 (1 per kit)
Replacement Door Label:1769-RL1 (2 per kit)
Replacement Door:1769-RD (2 per kit)
I/O Modules
Digital Input Modules:32 Point 24VDC Input Module
Description
Input Module, CompactLogix, DC Digital, 32 Point 10-30V DC, 32 Sinking or Sourcing Input
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

1769-um021_-en-p.pdf

1769-td006_-en-p.pdf
