ROCKWELL AUTOMATION 1769-IF8
ROCKWELL AUTOMATION 1769-IF8
ROCKWELL AUTOMATION 1769-IF8
ROCKWELL AUTOMATIONAvailable

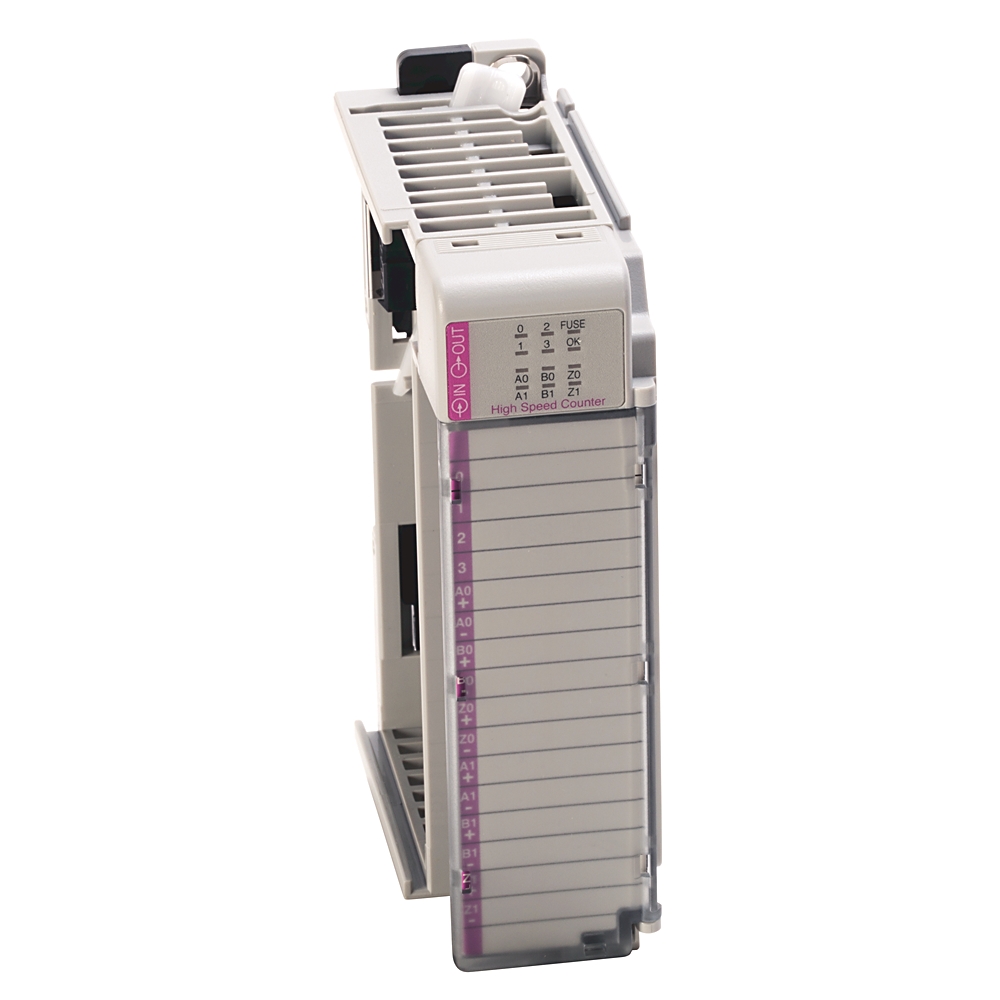

CompactLogix 8 Pt Analog Input Module

8 Channel Analog Current/Voltage Input Module
Product Code: 1769-IF8
Partner cod.: 1769-IF8
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Features
Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
Support single network strategy to EtherNet/IP TCP/CIP connection 96
Provides integrated safety and integrated motion in a single controller
Include ability to direct output device operation during an abnormal condition
Provide dual Ethernet ports for both DLR and linear topologies
Include on-board scaling
Provides seamless bridging with data control and collection over the same network
Delivers standard, safety and motion control for On-Machine™ applications
Require SERCOS interface modules for motion
Include 8…32 points per module
Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Include over-range and under-range detection and indication
Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
Does not require a chassis
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Available with conformal coating
Offer a variety of AC and DC voltages
Support SIL 3, PLe integrity (L4xS controllers only)
Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
Offer selectable response to a broken input sensor
Offers built-in communication ports for EtherNet/IP or ControlNet networks
Supports integrated safety up to SIL 3, PLe CAT 4
Provide optical isolation
Prevents incorrect positioning of module with software keying
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Require a chassis
Offer analog, thermocouple, and RTD modules
Includes individual point diagnostic status indicators to ease troubleshooting
Removes the need for lithium batteries with built-in energy storage
Offer input filtering
Supports up to 2 axes Kinematics for simple articulated robotics
Allow control migrations with re-use of existing 1769 I/O
Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
Offer user memory options ranging 2 MB to 3 MB
Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
Integrates with 1769 Compact I/O™ modules
Include autocalibration of inputs
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Provide high accuracy ratings
Address reserve, ASCII, Boolean control, and high-speed counter modules available
Simplify your system architecture with distributed I/O over EtherNet/IP
Offers flexible user memory options
Provide individually configurable channels
Integrate with 1769 Compact I/O™ modules
Support seamless bridging with data control and collection over the same network
Include I/O packet rate of10,000 pps
Includes a built-in RS-232 serial port on every 1769-L3x controller
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
Offer direct connection
Include high speed input modules
Include contact output modules
Provide integrated serial port
Provides flexibility with DIN rail or panel mounting options
Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
Offers a smaller form factor for maximized cabinet space
Technical Specs
Specifications
Sub Brand:CompactLogix
Type:Analog Input Module
Special Features:16 bits resolution
Isolation:500V AC or 710V DC for 1 minute (qualification test), group to bus. 30V AC/30V DC working voltage (IEC Class 2 reinforced insulation)
Enclosure:None (open-style)
Display:Status LEDs
Mounting:DIN Rail / Panel mount
Height:118mm, 4.65"
Width:35mm, 1.38"
Depth:87mm, 3.43"
Operating Temperature:0...60 °C (32...140 °F)
Input Signal:±10V, 0...10V, 0...5V, 1...5V, 0...20 mA, 4...20 mA
Removable Terminal Block:1769-RTBN18 (1 per kit)
Replacement Door Label:1769-RL2 (2 per kit)
Replacement Door:1769-RD (2 per kit)
I/O Modules
Analog Input Modules:8 Channel Analog Current/Voltage Input Module
Description
Input Module, CompactLogix, Analog, 8 Point, 8 Single-Ended Point Input, 8 Point, 16 Bit Resolution, Current and Voltage, 16 BitsResolution
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

1769-um021_-en-p.pdf

1769-td006_-en-p.pdf
