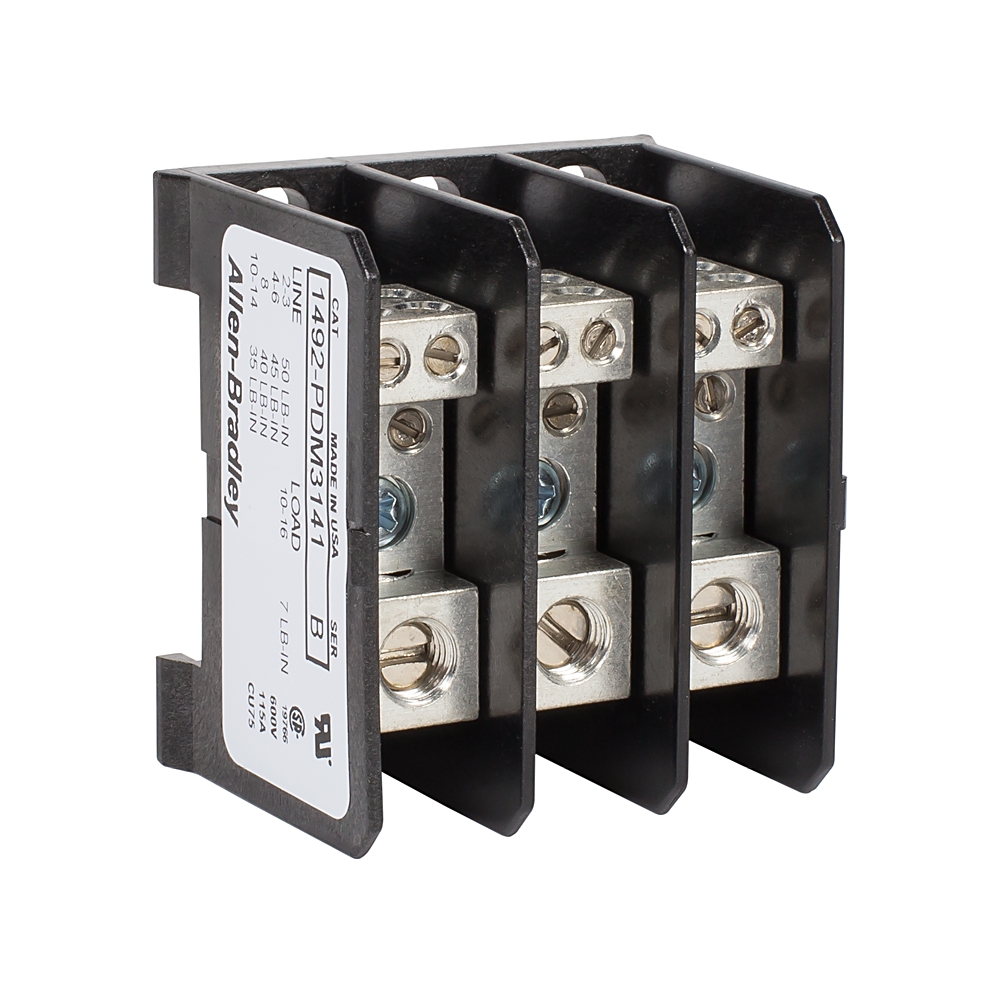

ROCKWELL AUTOMATION 1492-PDM3141
ROCKWELL AUTOMATION 1492-PDM3141
ROCKWELL AUTOMATION 1492-PDM3141
ROCKWELL AUTOMATION 1492-PDM3141
ROCKWELL AUTOMATIONAvailable

1492 Power Block, PDM Mini-Style Block, 3-Pole, Aluminum, 1 Opening Line Side, 4 Openings Load Side, 115 Amps

1492 Power Block, PDM Mini-Style Block, 3-Pole, Aluminum, 1 Opening Line Side, 4 Openings Load Side, 115 Amps
Product Code: 1492-PDM3141
Partner cod.: 1492-PDM3141
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Features
IP2X Finger-safe protection
Power distribution from a feed terminal block to any number of terminal blocks with smaller cross sections
Marked with wire range, tightening torque requirements and SCCR values
Marked with wire range, tightening torque requirements, and SCCR values
Feed terminal block is rated for wires with cross sections from 4…14 AWG and up to 16 mm^2
Numerous configurations for power distribution including feed left, feed right, and feed middle
Feeder spacing
Technical Specs
Power Block Data
Base Block Type:PDM Mini-Style Block
Number of Poles:3-Pole
Connector Material:Aluminum
Openings per Pole (Line Side):1 Opening
Rated Wire Range for Line Side:#2/0 to # 14 Copper wire
Openings per Pole (Load Side):4 Openings
Rated Wire Range for Load Side:#10 - # 18 Copper wire
Current Rating (per Pole):115 Amps
Marking Strips:Not Provided
Description
1492 Power Block, PDM Mini-Style Block, 3-Pole, Aluminum, 1 Opening LineSide, 4 Openings Load Side, 115 Amps
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

1492-um001_-en-e.pdf

1492-td013_-en-p.pdf
