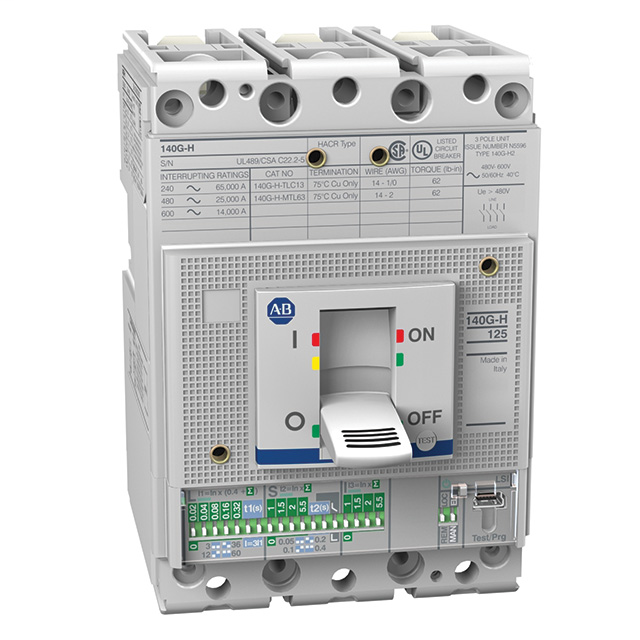

| Number of poles | 3 |
| Number of auxiliary contacts as change-over contact | 2 |
| With integrated under voltage release | No |
| Integrated earth fault protection | No |
| Complete device with protection unit | Yes |
| Rated permanent current Iu | 25 A |
| Type of control element | Toggle |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Frame size | 125 A |
| Voltage for reverse-fed circuit breaker, max | 480V AC per UL/CSA |
| Watt loss | Electronic type: 2.4 W |
| Protection typeââ¬Ã¢Electronic I (instantaneous trip units) | I3 = 1...10 x In (25...250 A) |
| Insulation voltage (Ui) | Rated 1000V per IEC |
| Electrical life cycle | 8000 @ 415V AC |
| Protection typeââ¬Ã¢Electronic L (long time trip units) | I1 = 0.4...1 x In (10...25 A), t1 = 3, 12, 36, 60 sec |
| Protection typeââ¬Ã¢Electronic S (short time trip units) | I2 = 1...10 x In (25...250 A), t2 = 0.05, 0.1, 0.2, 0.4 sec |
| Interrupting rating | 65 kA @ 480V AC, 50/60 Hz per NEMA, UL, CSA |
| Rated ultimate short-circuit breaking capacity (Icu) | IEC 60947-2: 70 kA @ 500V DC, 3-poles in series, thermal-magnetic trip unit only |
| Rated service short-circuit breaking capacity (Ics) | IEC 60947-2: 100% lcu @ 500V DC, 3-poles in series, thermal-magnetic trip unit only |
| Protection type | Electronic LSI-long and short time, high Instantaneous |
| Motor drive integrated | No |
| With switched-off indicator | No |
| Motor drive optional | Yes |
| Position of connection for main current circuit | Front side |
| Type of electrical connection of main circuit | Screw connection |
| Suitable for DIN rail (top hat rail) mounting | No |
| DIN rail (top hat rail) mounting optional | Yes |
| Degree of protection (IP) | IP40 |
| Weight | 2.65 lb |
| Mechanical life operations | 25000 /h |
| Vibration | 2...13.2 Hz ñ1 mm, 13.2...100 Hz ñ0.7 G |
| Shock | Peak acceleration: 150 m/s^2 peak, pulse duration 11 ms |
| Factory option | 2 NO/NC auxiliary + 1 alarm, 250V AC/DC |
| Height | 130 mm |
| Device construction | Built-in device fixed built-in technique |
| Width | 90 mm |
| Depth | 82.5 mm |
| Storage temperature | -40 ðF |
| Wire temperature rating | Cu 75 ðC |
| Operational voltage (Ue) | 90% of voltage rating @ 3000 meter (9840 ft) altitude |
| Rated uninterrupted current (Iu) | 98% of current rating @ 3000 meter (9840 ft) altitude |
| Ambient temperature without derating | 104 ðF |
