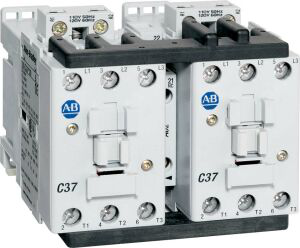

ROCKWELL AUTOMATION 104-C43D22
ROCKWELL AUTOMATION 104-C43D22
ROCKWELL AUTOMATION 104-C43D22
ROCKWELL AUTOMATIONNot available

Reversing Contactor, 43 A, 110V 50 Hz / 120V 60 Hz., 1 NOC & 3 NCC, Line Side Coil Termination, Screw Terminals, Motor Load

104-C Reversing Contactors, 43A, Line Side, 110V 50Hz / 120V 60Hz, 1 N.O. 1 N.C.
Product Code: 104-C43D22
Partner cod.: 104-C43D22
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Features
Includes space-saving coil-mounted control modules
Meets IEC, UL, and CSA standards requirements
Includes built-in surge suppression with DC coils
Provides front and side mounting of auxiliary contacts
RoHs compliant
Provides IP2X finger protection
Includes electronic and pneumatic timing modules
Provides reversible coil terminations (line or load side)
Offers common accessories for all contactor sizes
Includes reversible coil terminations (line or load side)
Technical Specs
Specifications
Connection:Screw Terminals
Coil Voltage:110V 50Hz / 120V 60Hz
3-Phase kW (50 Hz) 230V Rating:13
3-Phase kW (50 Hz) 400V/415V Rating:22
3-Phase kW (50 Hz) 500V Rating:25
3-Phase kW (50 Hz) 690V Rating:22
1-Phase HP (60 Hz) 230V Rating:7.5
3-Phase HP (60 Hz) 200V Rating:10
3-Phase HP (60 Hz) 230V Rating:15
3-Phase HP (60 Hz) 460V Rating:30
3-Phase HP (60 Hz) 575V Rating:30
Assembly
Factory or User Assembled?:Factory Assembled
Contactor Data
Terminal Type:Screw Terminals
Rated Operating Current, AC-3:43A
Coil Termination:Line Side
Auxiliary Contact Configuration:1 N.O. 1 N.C.
Application Data
Electrical Standards:UL
Load Data [Optional]
Utilization Category:AC-3 Squirrel-cage motor starting and stopping
Life Data [Optional]
Actual Life:Actual Life Cannot be Calculated (more information)...
Additional Information
Notice:See Pub. 0100C-1.0.1 for additional electrical life information.
Terminal Marking Positions Used
100-C or 104-C Contactor:1_, 4_
Front Mounted Auxiliary Contact:None
Front Mounted Auxiliary Contact (Right Side if 104C):None
Left Side Auxiliary Contact:None
Right Side Auxiliary Contact:None
Interlock:2_
Description
Reversing Contactor, 43 A, 110V 50 Hz / 120V 60 Hz., 1 NOC & 3 NCC, Line Side Coil Termination, Screw Terminals, Motor Load
