| Notes | General: These ferrules are not included in DIN 46228-1: 1992-08 |

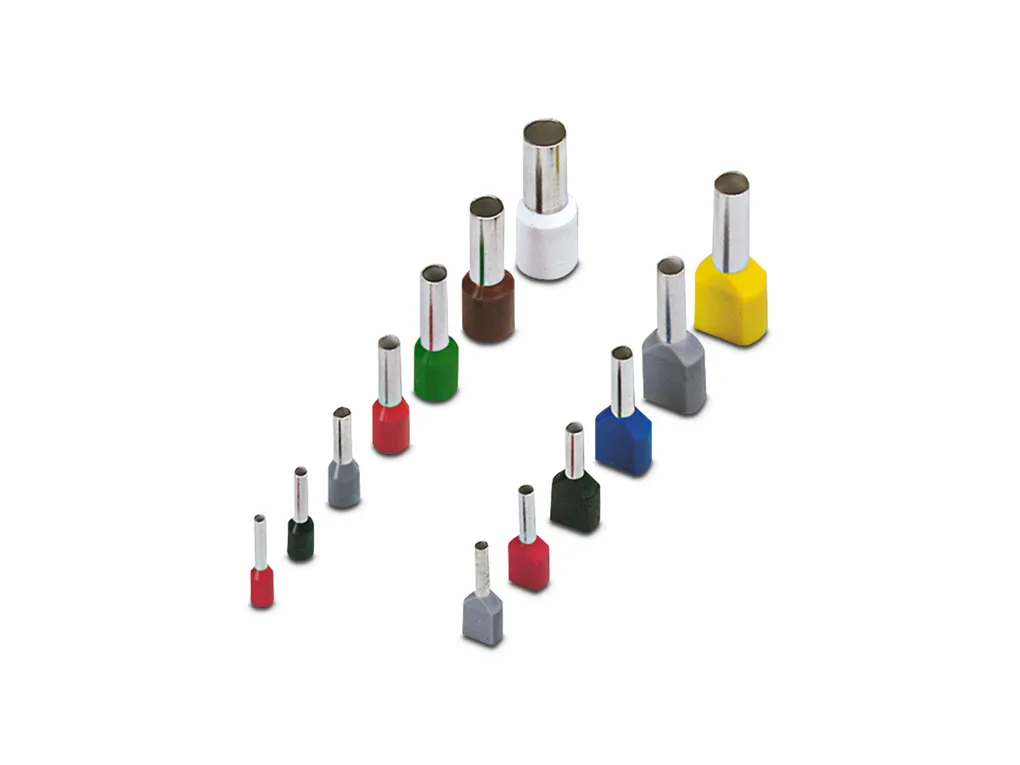

| Product properties | Product type: Cable end sleeve Conductor category: stranded conductors, class 2, 5, 6 / B, C, K, M |
| Connection data | Conductor connection Conductor cross section flexible max.: 0.75 mm² Conductor cross section AWG max.: 18 Stripping length: 8 mm |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/25cbf3eae3c56d48b852a47c91d9bed3/-S204x204-FJPG Maximum stripping length: 8 mm Ferrule diameter: 1.2 mm Sleeve wall thickness: 0.15 mm Inner dimensions of the insulating collar: 2.3 mm |
| Material specifications | Color: silver Material: CU-DHP Coating: tin-plated (galvanic) |
| Environmental and real-life conditions | Ambient conditions Permanent temperature: 105°C Short-term temperature: 120°C |
