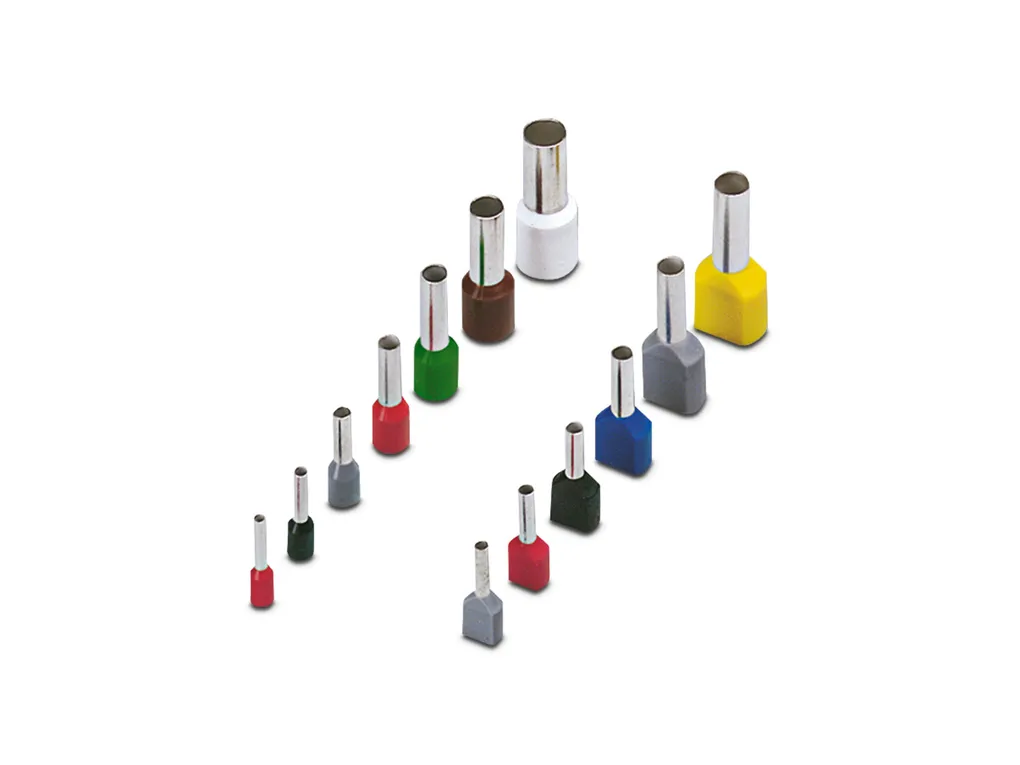

| Product properties | Product type: Cable end sleeve Conductor category: stranded conductors, class 2, 5, 6 / B, C, K, M |
| Connection data | Conductor connection Conductor cross section flexible max.: 0.5 mm² Conductor cross section AWG max.: 20 Stripping length: 6 mm |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/25cbf3eae3c56d48b852a47c91d9bed3/-S204x204-FJPG Maximum stripping length: 6 mm Ferrule diameter: 1 mm Sleeve wall thickness: 0.15 mm Inner dimensions of the insulating collar: 2.1 mm |
| Material specifications | Color: silver Material: CU-DHP Coating: tin-plated (galvanic) |
| Environmental and real-life conditions | Ambient conditions Permanent temperature: 105°C Short-term temperature: 120°C |
