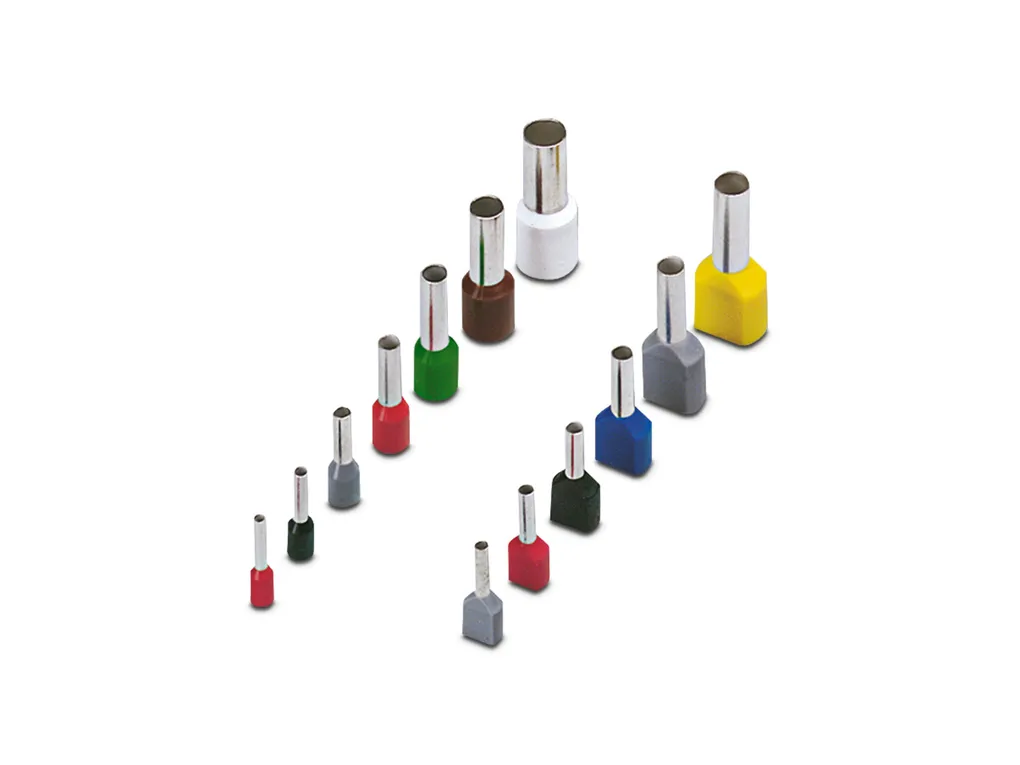

| Product properties | Product type: Cable end sleeve Conductor category: stranded conductors, class 2, 5, 6 / B, C, K, M |
| Connection data | Conductor connection Conductor cross section flexible max.: 2.5 mm² Conductor cross section AWG max.: 14 Stripping length: 21 mm |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f770636bc028c4428fa9ac67a7b80742/-S204x204-FJPG Sleeve length: 18 mm Maximum stripping length: 21 mm Ferrule diameter: 2.3 mm Sleeve wall thickness: 0.15 mm Insulating collar thickness: 0.3 mm Inner dimensions of the insulating collar: 4.2 mm |
| Material specifications | Color: gray Material: CU-DHP Flammability rating according to UL 94: HB Coating: tin-plated (galvanic) Components: free from silicone and halogen |
| Mechanical properties | Technical data Sleeve length: 18 mm |
| Environmental and real-life conditions | Ambient conditions Permanent temperature: 105°C (-40ðC no load / 0ðC dynamic load) Short-term temperature: 120°C |
| Standards and regulations | Design according to standard: NFCÃ63-023 |
