2904617 PHOENIX CONTACT - Technology Bsa

Input data	Control input (configurable) Rem: Output power ON/OFF (SLEEP MODE) Default: Output power ON (>40ÃkÃ¢Ã¢¦/24 V DC/open bridge between Rem and SGnd) AC operation Network type: Star network Nominal input voltage range: 100 VÃAC ... 240 VÃAC Input voltage range: 100 VÃAC ... 240 VÃAC -15Ã%Ã...Ã+10Ã% Electric strength, max.: 300 VÃAC 60 s Typical national grid voltage: 120 VÃAC 230 VÃAC Voltage type of supply voltage: AC Inrush current: typ. 10 A (at 25Ã°C) Inrush current integral (I²t): < 0.3 A²s Inrush current limitation: 10 A (after 1Ãms) AC frequency range: 50 Hz ... 60 Hz -10Ã%Ã...Ã+10Ã% Frequency range (f_N): 50 Hz ... 60 Hz -10Ã%Ã...Ã+10Ã% 16.7 Hz (acc. to ENÃ50163) Mains buffering time: typ. 36 ms (120ÃVÃAC) typ. 36 ms (230 VÃAC) Current consumption: 6.8 A (100ÃVÃAC) 5.5 A (120ÃVÃAC) 2.8 A (230 V AC) 2.7 A (240ÃVÃAC) Nominal power consumption: 520 VA Protective circuit: Transient surge protection; Varistor, gas-filled surge arrester Switch-on time: < 1 s Typical response time: 300 ms (from SLEEP MODE) Input fuse: 12 A (slow-blow, internal) Recommended breaker for input protection: 10 A ... 16 A (Characteristic B, C, D, K or comparable) Discharge current to PE: < 3.5 mA 1.7 mA (264ÃVÃAC, 60ÃHz) DC operation Nominal input voltage range: 110 VÃDC ... 250 VÃDC Input voltage range: 110 VÃDC ... 250 VÃDC -18Ã%Ã...Ã+40Ã% Voltage type of supply voltage: DC Current consumption: 6 A (110ÃVÃDC) 2.5 A (250ÃVÃDC)
Output data	Efficiency: typ. 92.7 % (120ÃVÃAC) typ. 94.2 % (230 V AC) Nominal output voltage: 24 VÃDC Setting range of the output voltage (U_Set): 24 VÃDC ... 28 VÃDC (constant capacity) Nominal output current (I_N): 20 A Static Boost (I_Stat.Boost): 25 A Dynamic Boost (I_Dyn.Boost): 30 A (5 s) Selective Fuse Breaking (I_SFB): 120 A (15 ms) Magnetic circuit breaker tripping: A1...A16 / B2...B13 / C1...C6 / Z1...Z16 Derating: > 60°C ... 70°C (2.5%/K) Feedback voltage resistance: Ã¢Ã¢°¤ 35 VÃDC Protection against overvoltage at the output (OVP): < 30 VÃDC (double protection incl. shutdown) Control deviation: < 0.5 % (Static load change 10Ã% ... 90Ã%) < 2 % (Dynamic load change 10Ã% ... 90Ã%, (10 Hz)) < 0.25 % (change in input voltage Ã±10 %) Residual ripple: < 30 mV_PP (with nominal values) Short-circuit-proof: yes No-load proof: yes Output power: 480 W 600 W 720 W Maximum no-load power dissipation: < 5 W (120ÃVÃAC) < 5 W (230 V AC) Power loss nominal load max.: < 38 W (120ÃVÃAC) < 30 W (230 V AC) Power dissipation SLEEP MODE: < 3 W (120ÃVÃAC) < 3 W (230 V AC) Crest factor: typ. 1.54 (120ÃVÃAC) typ. 1.6 (230 V AC) Rise time: < 1 s (U_OutÃ=Ã10Ã%Ã...Ã90Ã%) Connection in parallel: yes, for redundancy and increased capacity Connection in series: yes Signal Signal ground SGnd: Reference potential for Out1, Out2, and Rem Signal Out 1 (configurable) Digital: 24 VÃDC 20 mA Default: 24 VÃDC 20 mA 24ÃVÃDC for U_Out >Ã0.9ÃxÃU_Set Signal Out 2 (configurable) Digital: 24 VÃDC 20 mA Analog: 4 mA ... 20 mA Ã±5Ã% (Load Ã¢Ã¢°¤400ÃÃ©) Default: 24 VÃDC 20 mA 24ÃVÃDC for P_OutÃ<ÃP_N Signal relay 13/14 (configurable) Default: closed (U_out > 0.9 U_Set) Digital: 24 VÃDC 1 A 30 V AC/DC 0.5 A
Connection data	Input Connection method: Screw connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 6 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 4 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, min.: 0.25 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, max.: 4 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, min.: 0.25 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, max.: 4 mm² Conductor cross section AWG min.: 30 Conductor cross section AWG max.: 10 Stripping length: 8 mm Tightening torque, min: 0.5 Nm Tightening torque max: 0.6 Nm Output Connection method: Screw connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 6 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 4 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, min.: 0.25 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, max.: 4 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, min.: 0.25 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, max.: 4 mm² Conductor cross section AWG min.: 30 Conductor cross section AWG max.: 10 Stripping length: 8 mm Tightening torque, min: 0.5 Nm Tightening torque max: 0.6 Nm Signal Connection method: Push-in connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 1 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 1.5 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, min.: 0.2 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, max.: 0.75 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, min.: 0.2 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, max.: 1.5 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 16 Stripping length: 8 mm
Signaling	Types of signaling: LED Floating signal contact Active signal output Out1 (digital, configurable) Active signal output Out2 (analog, configurable) Remote contact Signal ground SGnd Signal output P_Out: > 100Ã% (LED lights up yellow, output power > 480ÃW) > 75Ã% (LED lights up green, output power > 360ÃW) > 50Ã% (LED lights up green, output power > 240ÃW) U_Out: > 0.9ÃxÃU_Set (LED lights up green) < 0.9ÃxÃU_Set (LED flashes green)
Electrical properties	Number of phases: 1.00 Insulation voltage input/output: 4 kV AC (type test) 2 kV AC (routine test) Switching frequency: 90 kHz ... 110 kHz (Auxiliary converter stage) 70 kHz ... 330 kHz (Main converter stage) 50 kHz ... 70 kHz (PFC stage)
Product properties	Product type: Power supply Product family: QUINT POWER MTBF (IEC 61709, SN 29500): > 868000 h (25Ã°C) > 524000 h (40Ã°C) > 239000 h (60Ã°C) Insulation characteristics Protection class: I Degree of pollution: 2 Life expectancy (electrolytic capacitors) Current: 10 A Temperature: 40°C Time: 392000 h Additional text: 120ÃVÃAC Life expectancy (electrolytic capacitors)Ã¢Ã¢¬Ã¢¹ Current: 10 A Temperature: 40°C Time: 447000 h Additional text: 230ÃVÃAC Life expectancy (electrolytic capacitors)Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Current: 20 A Temperature: 25°C Time: 378000 h Additional text: 120ÃVÃAC Life expectancy (electrolytic capacitors)Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Current: 20 A Temperature: 25°C Time: 499000 h Additional text: 230ÃVÃAC Life expectancy (electrolytic capacitors)Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Current: 20 A Temperature: 40°C Time: 133000 h Additional text: 120ÃVÃAC Life expectancy (electrolytic capacitors)Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Current: 20 A Temperature: 40°C Time: 176000 h Additional text: 230ÃVÃAC

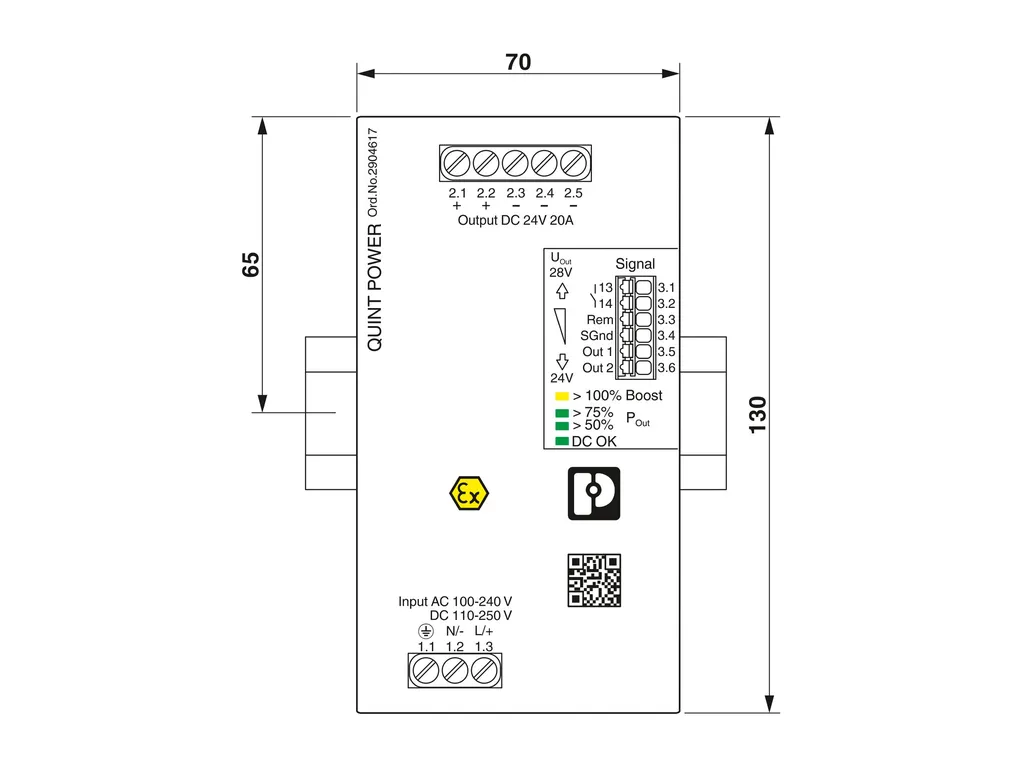

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b6109d01198583428b93caf137d63add/-S204x204-FJPG Width: 70 mm Height: 130 mm Depth: 125 mm Installation dimensions Installation distance right/left: 5 mm / 5 mm Installation distance top/bottom: 50 mm / 50 mm Alternative assembly Width: 122 mm Height: 130 mm Depth: 73 mm
Mounting	Mounting type: DIN rail mounting Assembly instructions: Alignable: horizontally 0Ãmm atÃP_outÃ<50%ÃP_N, 5Ãmm atÃP_outÃÃ¢Ã¢°¥50%ÃP_N, next to active components 15Ãmm, vertically 50Ãmm Mounting position: horizontal DIN rail NS 35, EN 60715 With protective coating: yes
Material specifications	Flammability rating according to ULÃ94 (housing / terminal blocks): V0 Housing material: Metal Hood version: Stainless steel X6Cr17 Side element version: Aluminum
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 75°C (>Ã60Ã°C Derating: 2,5Ã%/K) Ambient temperature (storage/transport): -40°C ... 85°C Maximum altitude: Ã¢Ã¢°¤ 5000 m (> 2000 m, observe derating) Climatic class: 3K3 (in acc. with EN 60721) Max. permissible relative humidity (operation): Ã¢Ã¢°¤ 100 % (at 25°C, non-condensing) Shock: 18 ms, 30g, in each space direction (according to IEC 60068-2-27) Vibration (operation): 5ÃHz ... 100ÃHz resonance search 2.3g, 90Ãmin., resonance frequency 2.3g, 90Ãmin. (according to DNV GL Class C)
Standards and regulations	Rail applications: ENÃ50121-3-2 ENÃ50121-4 ENÃ50121-5 ENÃ50163 IEC 62236-3-2 IEC 62236-4 IEC 62236-5 HART FSK Physical Layer Test Specification Compliance: Output voltage U_Out compliant Standard Ã¢Ã¢¬Ã¢ Limitation of mains harmonic currents: ENÃ61000-3-2 Standard - Electrical safety: IEC 61010-2-201Ã(SELV) Explosive atmosphere: IEC 60079-0 IEC 60079-7 IEC 60079-11 IEC 60079-15 Standard Ã¢Ã¢¬Ã¢ Safety extra-low voltage: IEC 61010-1 (SELV) IEC 61010-2-201 (PELV) Standard - Safe isolation: IEC 61558-2-16 IEC 61010-2-201 Standard - safety for equipment for measurement, control, and laboratory use: IEC 61010-1 Standard - Safety of transformers: ENÃ61558-2-16 Battery charging: DINÃ41773-1 Approval - requirement of the semiconductor industry with regard to mains voltage dips: SEMIÃF47-0706, ENÃ61000-4-11 Overvoltage category EN 61010-1: IIÃ(Ã¢Ã¢°¤Ã5000Ãm) EN 62477-1: IIIÃ(Ã¢Ã¢°¤Ã2000Ãm)
Approvals	CSA: CAN/CSA-C22.2 No.Ã60950-1-07 CSA-C22.2 No.Ã107.1-01 Shipbuilding approval: DNV GL SIQ: BG (type approved) UL approvals: UL Listed ULÃ508 UL/C-UL Recognized ULÃ60950-1 UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) Conformity/Approvals ATEX: SIQÃ21ÃATEXÃ286ÃX Ã¯Ã II 3 G Ex ec ic nC IIC T4 Gc INMETRO: DNVÃ19.0187ÃX IECEx: IECEx SIQ 18.0005X Ex ec ic nC IIC T4 Gc Functional Safety in accordance with IEC 61508: SILÃ3
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive 2014/35/EC EMC requirements for noise emission: ENÃ61000-6-3 ENÃ61000-6-4 EMC requirements for noise immunity: ENÃ61000-6-1 ENÃ61000-6-2 Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU EMC requirements, power plant: IEC 61850-3 ENÃ61000-6-5 Conducted noise emission: ENÃ55016 ENÃ61000-6-3 (Class B) Noise emission: Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) ENÃ55016 ENÃ61000-6-3 (Class B) DNVÃGL conducted interference: ClassÃA Additional text: Area power distribution Bridge and deck area DNVÃGL noise radiation: ClassÃB Harmonic currents Standards/regulations: ENÃ61000-3-2 ENÃ61000-3-2 (Class A) Frequency range: 0 kHz ... 2 kHz Flicker Standards/regulations: ENÃ61000-3-3 Frequency range: 0 kHz ... 2 kHz Electrostatic discharge Standards/regulations: ENÃ61000-4-2 Electrostatic dischargeÃ¢Ã¢¬Ã¢¹ Contact discharge: 8 kV (Test Level 4) Discharge in air: 15 kV (Test Level 4) Comments: Criterion A Electromagnetic HF field Standards/regulations: ENÃ61000-4-3 Electromagnetic HF fieldÃ¢Ã¢¬Ã¢¹ Frequency range: 80 MHz ... 1 GHz 1 GHz ... 6 GHz Test field strength: 20 V/m (Test Level 3) 10 V/m (Test Level 3) Comments: Criterion A Fast transients (burst) Standards/regulations: ENÃ61000-4-4 Fast transients (burst)Ã¢Ã¢¬Ã¢¹ Input: 4 kV (Test Level 4 - asymmetrical) Output: 4 kV (Test Level 4 - asymmetrical) Signal: 4 kV (Test Level 4 - asymmetrical) Comments: Criterion A Surge voltage load (surge) Standards/regulations: ENÃ61000-4-5 Input: typ. 3 kV (Test Level 4 - symmetrical) typ. 6 kV (Test Level 4 - asymmetrical) Output: 1 kV (Test Level 3 - symmetrical) 2 kV (Test Level 3 - asymmetrical) Signal: 4 kV (Test Level 4 - asymmetrical) Comments: Criterion A Conducted interference Standards/regulations: ENÃ61000-4-6 Conducted interferenceÃ¢Ã¢¬Ã¢¹ I/O/S: asymmetrical Frequency range: 0.15 MHz ... 80 MHz Comments: Criterion A Voltage: 10 V (Test Level 3) Power frequency magnetic field Standards/regulations: ENÃ61000-4-8 Frequency: 16.7 Hz 50 Hz 60 Hz 50 Hz 60 Hz 0 Hz Test field strength: 100 A/m 1 kA/m 300 A/m Additional text: 60 s 3 s DC, 60Ãs Comments: Criterion A Frequency range: 50 Hz ... 60 Hz Voltage dips Standards/regulations: ENÃ61000-4-11 Voltage: 230 VÃAC Frequency: 50 Hz Voltage dip: 70 % 40 % 0 % Number of periods: 0.5 / 1 / 25 / 30 periods 5 / 10 / 50 periods 0,5 / 1 / 5 / 50 / 250 periods Additional text: Test Level 2 Comments: Criterion A: 0.5 / 1 / 25 / 30 periods Criterion A Criterion A: 0.5 / 1 period Criterion B: 5 / 50 / 250 periods Pulse-shape magnetic field Standards/regulations: ENÃ61000-4-9 Test field strength: 1000 A/m Comments: Criterion A Attenuated sinusoidal oscillations (ring wave) Standards/regulations: ENÃ61000-4-12 Input: 2 kV (Test Level 4 - symmetrical) 4 kV (Test Level 4 - asymmetrical) Comments: Criterion A Asymmetrical conducted disturbance variables Standards/regulations: ENÃ61000-4-16 Test level 1: 15 Hz 150 Hz (Test Level 4) Voltage: 30 V 3 V 3 V 3 V 30 V 30 V 30 V (Permanent) 30 V (Permanent) 300 V (1 s) Test level 2: 150 Hz 1.5 kHz (Test Level 4) Test level 3: 1.5 kHz 15 kHz (Test Level 4) Test level 4: 15 kHz 150 kHz (Test Level 4) Test level 5: 16.7 Hz 50 Hz 60 Hz (Test Level 4) Test level 6: 150 Hz 180 Hz (Test Level 4) Test level 7: 16.7 Hz 50 Hz 60 Hz (Test Level 4) Comments: Criterion A Attenuated oscillating wave Standards/regulations: ENÃ61000-4-18 Input, output (test levelÃ1): 100 kHz 1 MHz (Test Level 3 - symmetrical) Voltage: 1 kV 2.5 kV 1 kV 2.5 kV Input, output (test levelÃ2): 10 MHz Input, output (test levelÃ3): 100 kHz 1 MHz (Test Level 3 - asymmetrical) Signals (test levelÃ1): 100 kHz 1 MHz (Test Level 3 - symmetrical) Signals (test levelÃ2): 100 kHz 1 MHz (Test Level 3 - asymmetrical) Comments: Criterion A Attenuated oscillating magnetic field Standards/regulations: ENÃ61000-4-10 Test field strength: 110 A/m Test level 1: 100 kHz Test level 2: 1 MHz Comments: Criterion A Criteria Criterion A: Normal operating behavior within the specified limits. Criterion B: Temporary impairment to operational behavior that is corrected by the device itself. Criterion C: Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.
