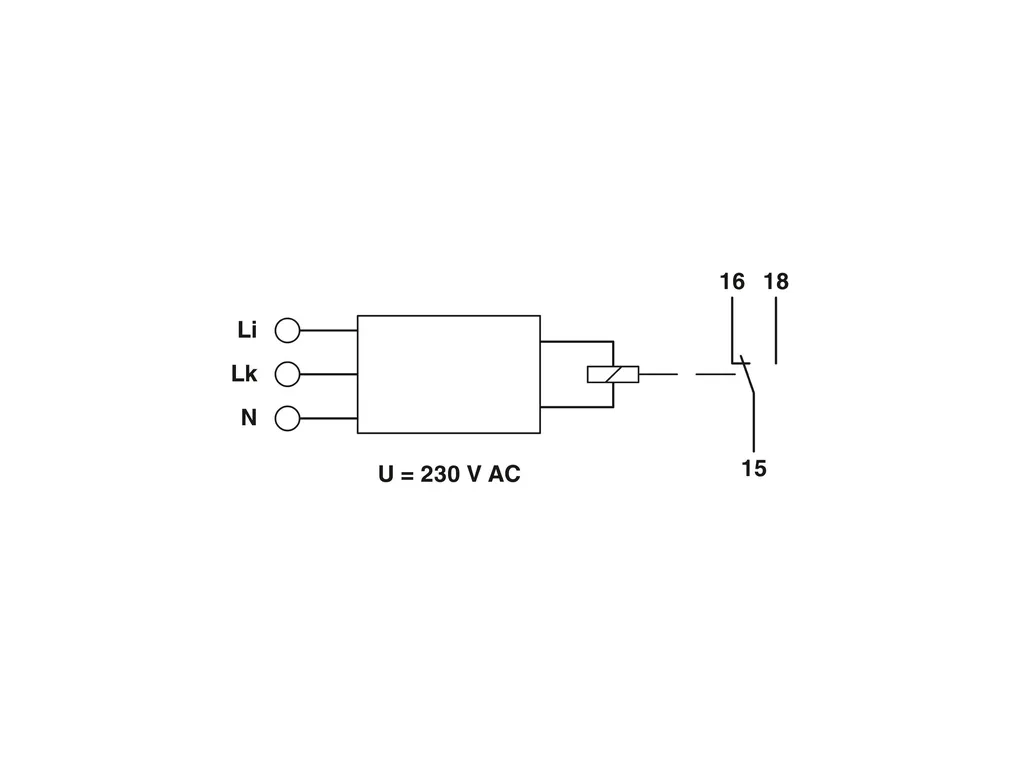

| Product properties | Product type: Current monitoring relay Operating mode: 100% operating factor Mechanical service life: 15x 106 cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Service life electrical: 1x 105 cycles Mains type: 1-phase Rated insulation voltage: 300 V (Supply circuit) 250 V (Output circuit) 300 V (Measuring circuit) Rated surge voltage: 4 kV Supply Supply voltage: 230 VÃAC ñ15Ã% Supply voltage range: 195.5 VÃAC ... 264.5 VÃAC Nominal power consumption: 5 VA (0.8ÃW) |
| Input data | Input name: Measuring input Measured value: AC sine (48 Hz ... 63 Hz) Input current range: 0 A ... 5 A 0 A ... 10 A Configurable via rotary switches Overload capacity: 13 A AC Input resistance current input: 3 mé Frequency range: 48 Hz ... 63 Hz Maximum temperature coefficient: ââ°¤ 0.05 % Setting range for response delay: 0.1 s ... 10 s Min. setting range: 5 % ... 95 % (from IN) Max. setting range: 10 % ... 100 % (from IN) Function: Overcurrent Undercurrent Window Basic accuracy: ââ°¤ 5 % (of the nominal value) Setting accuracy: ñ 5 % (of the nominal value) Repeat accuracy: ââ°¤ 2 % Recovery time: > 500 ms |
| Output data | Switching Contact switching type: 1 floating changeover contact Maximum switching voltage: 250 VÃAC (in acc. with IEC 60664-1) Interrupting rating (ohmic load) max.: 1250 VA (5ÃA / 250ÃVÃAC) Output fuse: 5 A (fast-blow) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Conductor cross section rigid: 0.5 mm² ... 2.5 mm² Conductor cross section flexible: 0.5 mm² ... 2.5 mm² Conductor cross section AWG: 20 ... 14 Tightening torque: 1 Nm ... 1 Nm |
| Signaling | Status display: Yellow LED Operating voltage display: Green LED Error indication: Red LED |
| Dimensions | Width: 17.5 mm Height: 89.5 mm Depth: 65.5 mm |
| Material specifications | Housing insulation material: Polyamide PA 6.6, self-extinguishing |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Housing): IP40 (Housing) Degree of protection (Connection terminal blocks): IP20 (Connection terminal blocks) Ambient temperature (operation): -25°C ... 55°C Ambient temperature (storage/transport): -25°C ... 70°C Climatic class: 3K3 (in acc. with EN 60721) Permissible humidity (operation): 15 % ... 85 % |
| Approvals | CE Certificate: CE-compliant UL, USA/Canada Identification: UL/C-UL Listed UL 508 |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Noise immunity: EN 61000-6-2 Electromagnetic compatibility: Conformance with EMC directive Noise emission: EN 61000-6-3 |
| Standards and regulations | Standards/regulations: DINÃENÃ60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715 Mounting position: any |
