RAD-ISM-2400-ANT-OMNI-6-0 - Antenna

Omnidirectional antenna for wall or mast mounting, 2.4GHz, gain: 6dBi, degree of protection: IP67, saltwater-resistant, shock- and vibration-resistant, connection: N (female), incl. mounting bracket and mast clamps, ATEX and IECEx approval

Product Code: 2885919 Copia - Copy

Partner cod.: 2885919 Copia - Copy

PHOENIX CONTACT

Notes	Utilization restriction CCCex note: Use in potentially explosive areas is not permitted in China.
Product properties	Product type: Antenna Radiation characteristics: Omnidirectional Gain: 6 dBi Vertical beamwidth: 30° Horizontal beamwidth: 360° Polarization: Linear vertical
Electrical properties	Frequency band: 2.4 GHz Frequency range: 2.4 GHz ... 2.5 GHz Impedance: 50 Ã© Maximum capacity: 25.00 W

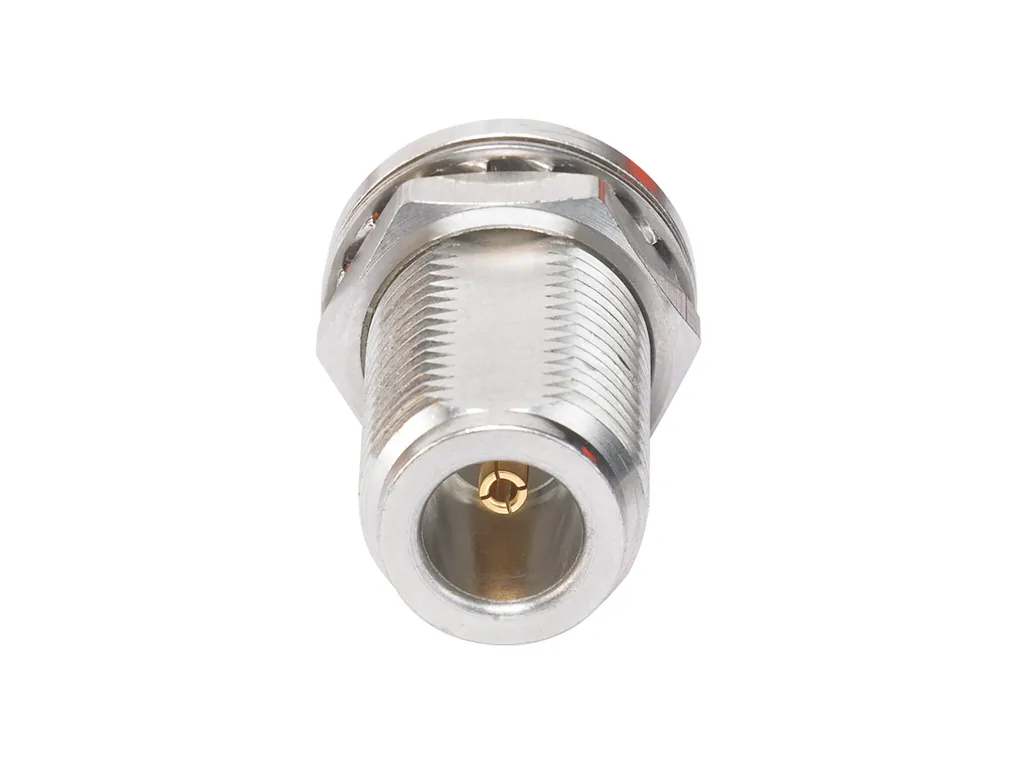

Connection data	Connection technology Connection method: N (female) Outside diameter: 25 mm ... 100 mm (Mast)
Ex data	Safety data Input voltage U_i: 30 V Input current I_i: 600 mA Input power P_i: Ã¢Ã¢°¤ 1 W (30ÃdB) Max. internal inductance L_i: negligible Capacitance Ci: negligible
Dimensions	Height: 250 mm Diameter: 22 mm External dimensions Outside diameter: 25 mm ... 100 mm (Mast)
Material specifications	Material: Fiberglass-reinforced plastic V2A V2A Flammability rating according to UL 94: HB
Cable/line	Connecting cable: No Other resistance: salt water resistant
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 75°C Ambient temperature (storage/transport): -40°C ... 75°C Wind velocity: 220 km/h
Approvals	Electronic devices in rail vehicles Shock (operation): IEC 60721-3-4, 4M5 Vibration (operation): IEC 60721-3-4, 4M5 Random
Standards and regulations	Other resistance: salt water resistant Standards/specifications: ENÃ60079-0 ENÃ60079-11 ENÃ60079-26
Mounting	Mounting type: Wall mounting Mast mounting Assembly instructions: Outdoors and indoors Connection method: N (female)
