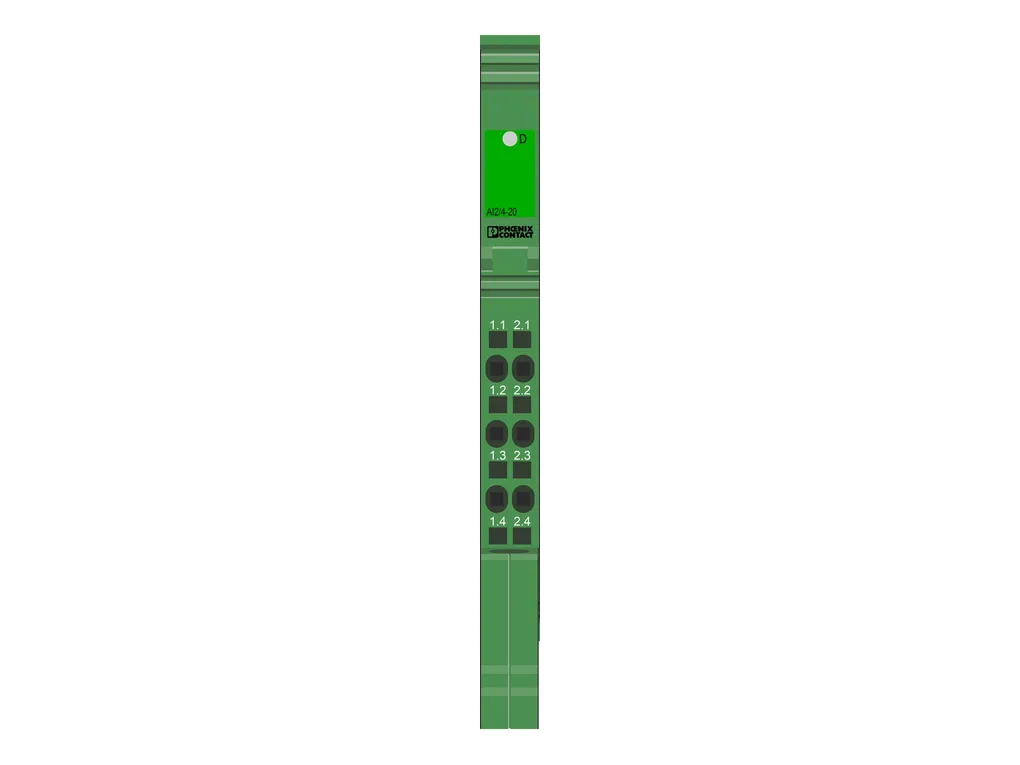

IB IL AI 2/4-20-PAC - Analog module

Inline, Analog input terminal, Analog inputs: 2, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA, connection technology: 2-conductor, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connector and labeling field

Product Code: 2862217 Copia - Copy

Partner cod.: 2862217 Copia - Copy

PHOENIX CONTACT

Dimensions	Width: 12.2 mm Height: 136.8 mm Depth: 71.5 mm
Interfaces	Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps Transmission physics: Copper
System properties	Module ID code (dec.): 127 ID code (hex): 7F Length code (hex): 02 Length code (dec): 02 Process data channel: 32 bit Input address area: 4 Byte Output address area: 4 Byte Register length: 32 bit Required parameter data: 6 Byte
Input data	Analog Input name: Analog inputs Description of the input: Single-ended inputs, voltage or current Number of inputs: 2 Connection method: Inline shield connector Connection technology: 2-conductor Note regarding the connection technology: shielded Current input signal: 0 mA ... 20 mA 4 mA ... 20 mA -20 mA ... 20 mA Voltage input signal: 0 V ... 10 V -10 V ... 10 V
Product properties	Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connector and labeling field
Electrical properties	Potentials: Communications power (U Supply voltage: 7.5 VÃDC (via voltage jumper) Current draw: max. 60 mA typ. 45 mA Potentials: Supply of analog modules (U Supply voltage: 24 VÃDC Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 18 mA typ. 13.5 mA
Connection data	Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINÃENÃ61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINÃENÃ61131-2)
Standards and regulations	Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1)
Mounting	Mounting type: DIN rail mounting
