2861661 PHOENIX CONTACT - Technology Bsa

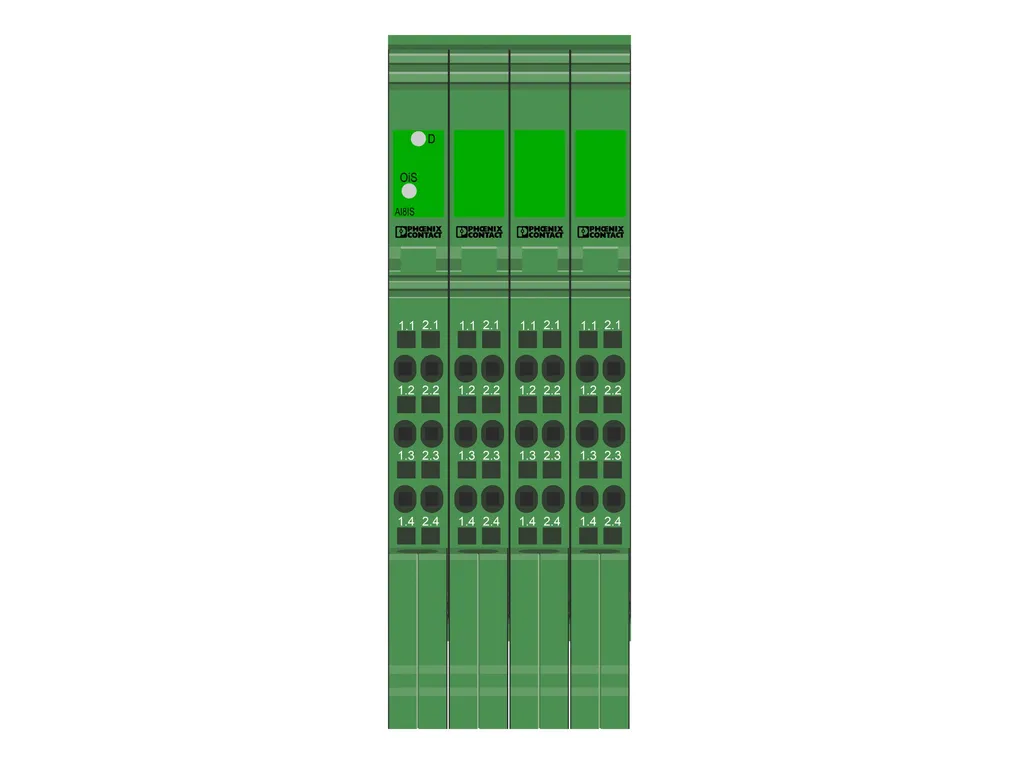

IB IL AI 8/IS-PAC - Analog module

Inline, Analog input terminal, Analog inputs: 8, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA, 0 mA ... 40 mA, -40 mA ... 40 mA, connection technology: 2-, 3-conductor, transmission speed in the local bus: 500 kbps, integrated sensor supply, degree of protection: IP20, including Inline connectors and marking fields

Product Code: 2861661 Copia - Copy

Partner cod.: 2861661 Copia - Copy

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8f49d2b498684640a945b59e148b2698/-S204x204-FJPG Width: 48.8 mm Height: 136.8 mm Depth: 71.5 mm
Interfaces	Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps Transmission physics: Copper
System properties	Module ID code (dec.): 95 ID code (hex): 5F Length code (hex): 02 Length code (dec): 02 Process data channel: 32 bit Input address area: 4 Byte Output address area: 4 Byte Register length: 32 bit Required parameter data: 6 Byte Required configuration data: 5 Byte
Input data	Analog Input name: Analog inputs Description of the input: Single-ended inputs, current Number of inputs: 8 A/D conversion time: approx. 10 Ãµs Connection method: Inline shield connector Connection technology: 2-, 3-conductor Note regarding the connection technology: shielded Current input signal: 0 mA ... 20 mA 4 mA ... 20 mA -20 mA ... 20 mA 0 mA ... 40 mA -40 mA ... 40 mA Input resistance current input: 25 Ã© 0.01Ã% Data formats: IBS IL, IBS ST, IBS RT, standardized representation, PIO format Limit frequency (3 dB): 3.5 kHz Measuring principle: Successive approximation Measured value resolution: 16 bits (15 bits + sign bit) Measured value representation: 16 bit two's complement
Product properties	Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields
Electrical properties	Maximum power dissipation for nominal condition: 7.2 W Potentials: Communications power (U Supply voltage: 7.5 VÃDC (via voltage jumper) Current draw: max. 65 mA typ. 52 mA Potentials: Supply of analog modules (U Supply voltage: 24 VÃDC Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 40 mA typ. 31 mA Potentials: Main circuit supply (U Supply voltage: 24 VÃDC (via voltage jumper) Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 200 mA 0 A Electrical isolation/isolation of the voltage ranges Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics): 500 VÃAC, 50 Hz, 1 min. Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics): 500 VÃAC, 50 Hz, 1 min. Test voltage: 7.5 V supply (bus logic), 24 V supply U_ANA / I/O: 500 VÃAC, 50 Hz, 1 min. Test voltage: 7.5ÃV supply (bus logic), 24ÃV supply U_ANA/ functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: I/O/functional ground: 500 VÃAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINÃENÃ61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINÃENÃ61131-2)
Standards and regulations	Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1)
Mounting	Mounting type: DIN rail mounting
