| Notes | General Note: For installation into a touch protected cabinet. For applications with UC > 500 V distances at the side and distances at the connection area must be minimum of 5 mm between different active parts including earthed parts. |

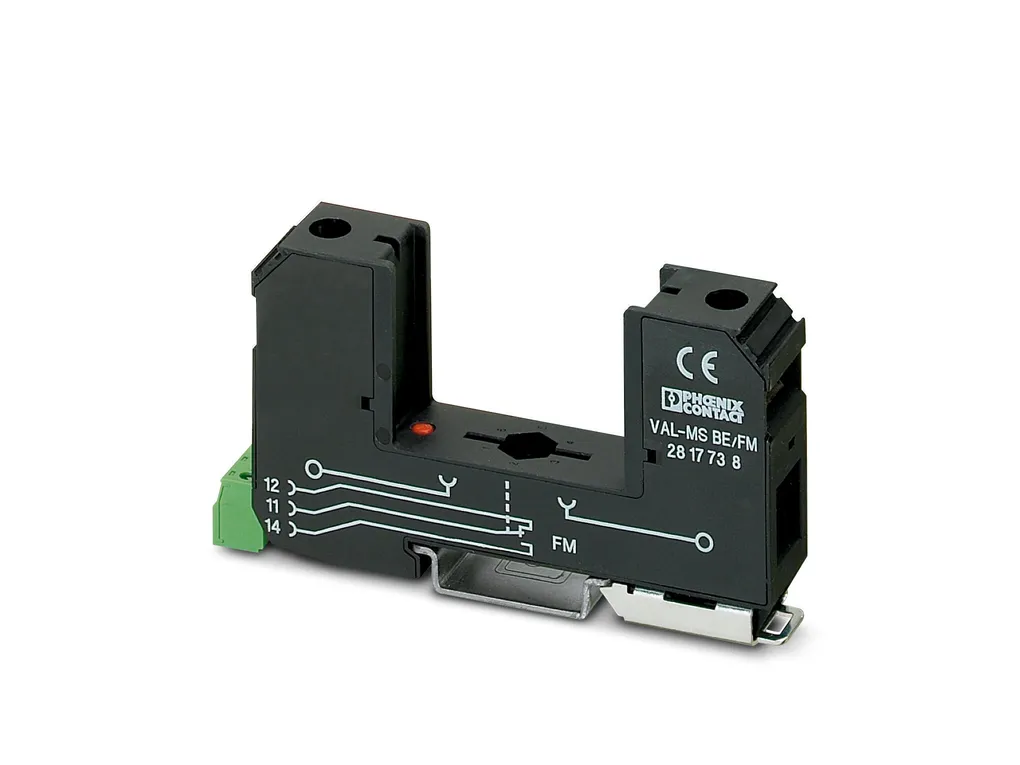

| Product properties | IEC test classification: II T2 EN type: T2 Type: Base element, DIN rail mounting Product type: Base element Product family: VALVETRAB MS Number of positions: 1 Surge protection fault message: Remote indication contact Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal frequency fN: 50 Hz (60ÃHz) Indicator/remote signaling Connection name: Remote fault indicator contact Switching function: Changeover contact Operating voltage: 5 VÃAC ... 250 VÃAC 30 VÃDC Operating current: 5 mA AC ... 1 A AC 1 AÃDC |
| Connection data | Connection method: Screw connection Fork-type cable lug Screw thread: M5 Tightening torque: 3 Nm (1.5Ãmm² ... 16Ãmm²) 4.5 Nm (25Ãmm²Ã...Ã35Ãmm²) Stripping length: 16 mm Conductor cross section flexible: 1.5 mm² ... 25 mm² 1.5 mm² ... 16 mm² Conductor cross section rigid: 1.5 mm² ... 35 mm² Conductor cross section AWG: 15 ... 2 Remote fault indicator contact Connection method: Plug-in/screw connection via COMBICON Screw thread: M2 Tightening torque: 0.25 Nm Stripping length: 7 mm Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 |

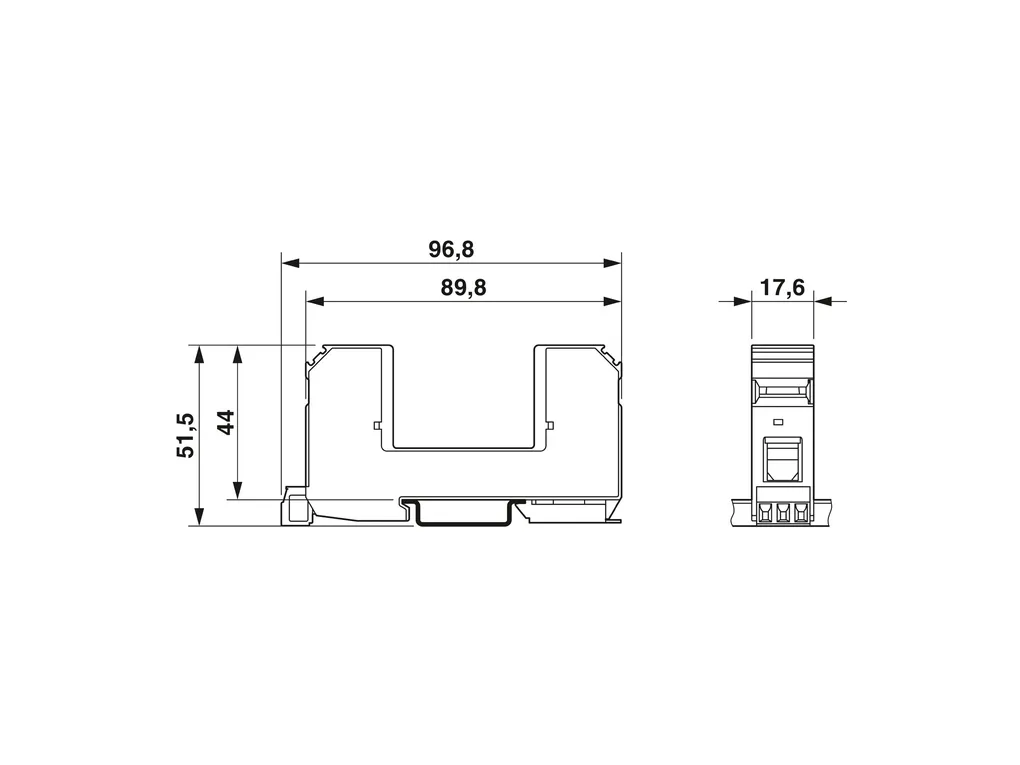

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/49d0139cdca6db4691c5a7dc4e2e303b/-S204x204-FJPG Width: 17.6 mm Height: 96.8 mm Depth: 51.5 mm (incl. DIN rail 7.5Ãmm) Horizontal pitch: 1 Div. |
| Material specifications | Color: Copper Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA 6.6 Material group: I Housing material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: 1L-N/PE Nominal frequency fN: 50 Hz (60ÃHz) Maximum continuous voltage UC: 600 VÃAC Rated load current IL: 80 A Short-circuit current rating ISCCR: 25 kA Max. backup fuse with V-type through wiring: 80 A (gG) Max. backup fuse with branch wiring: 125 A (gG) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 (only when all terminal points are used) Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 25g (Half-sine / 11 ms / 3x ñX, ñY, ñZ) Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
| Approvals | UL specifications Nominal voltage: 690ÃVÃAC SPD Type: 4CA UL indicator/remote signaling Operating voltage: 125 VÃAC AC operating current: 1 A AC UL connection data Tightening torque: 30 lbf-in. Conductor cross section AWG: 14 ... 2 |
| Standards and regulations | Standards/specifications: IEC 61643-11 ENÃ61643-11 Note: 2011 2012 |
| Mounting | Mounting type: DIN rail: 35 mm |
