| Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
| Product properties | Product type: Current transducer Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Total error: ââ°¤ 1.175 % (Temperature range) Test voltage: 3.5 kV Measuring category: III Step response (10-90%): < 200 ms Maximum temperature coefficient: < 0.015 %/K Maximum transmission error: < 0.5 % (of final value) Rated insulation voltage: 300 VÃAC (to earth) |
| Input data | Signal Configurable/programmable: no Measurement Input current range: 0 A AC ... 1 A AC (Permitted continuous overload: 120%) Overload capacity: 2 x IN (5 min. at 60°C ambient temperature) Surge strength: 50 A (1 s) Permissible output range: 1.2 x IN Nominal frequency fN: 50 Hz Frequency measuring range: 45 Hz ... 60 Hz Power dissipation: 1.6 VA (at IA = 20 mA) Curve type: Sine Measurementââ¬Ã¢¹ Input current range: 0 A AC ... 5 A AC (Permitted continuous overload: 120%) Impulse form: Sine Overload capacity: 2 x IN (5 min. at 60°C ambient temperature) Surge strength: 100 A (1 s) Permissible output range: 1.2 x IN Nominal frequency fN: 50 Hz Frequency measuring range: 45 Hz ... 60 Hz Power dissipation: 2.2 VA (I = 20 mA) |
| Output data | Signal: Voltage Voltage output signal: 0 V ... 10 V Max. voltage output signal: 20 V Load/output load voltage output: > 100 ké Ripple: < 50 mVPP Signal: Current Current output signal: 0 mA ... 20 mA Max. current output signal: 30 mA Load/output load current output: < 750 é < 250 é (when current and voltage outputs are used simultaneously) Ripple: < 50 mVPP Residual ripple, in reference to the measured value: 0.5 % (pp of measured value) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 |

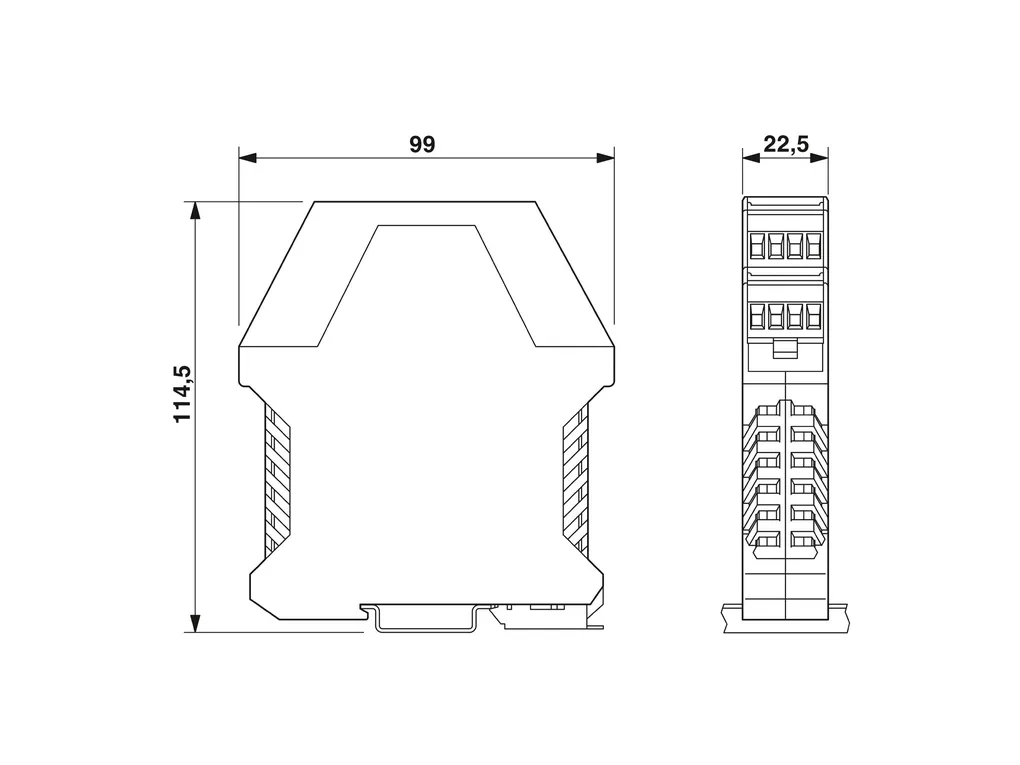

| Dimensions | Item dimensions Width: 22.5 mm Height: 99 mm Depth: 114.5 mm |
| Material specifications | Housing material: Polyamide PA non-reinforced |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -25°C ... 80°C (non-condensing) Altitude: < 2000 m Permissible humidity (operation): 10 % ... 95 % (non-condensing) |
| Approvals | CE Certificate: CE-compliant |
| EMC data | Noise immunity: EN 61000-6-2 Note: When being exposed to interference, there may be minimal deviations. Electromagnetic compatibility: Conformance with EMC directive Noise emission: EN 61000-6-4 |
| Standards and regulations | Standards/regulations: IEC 61010-2-030 |
| Mounting | Mounting type: DIN rail mounting Mounting position: < 50°C: any; > 50°C: vertical (installation on horizontal DIN rail) |
