PT-IQ-2X1-48DC-P - Surge protection plug

Surge protection plug with integrated multi-stage status indicator on the module for two signal wires with common reference potential. 48 V DC nominal voltage.

Product Code: 2800777

Partner cod.: 2800777

PHOENIX CONTACT

Notes	General: This product is a replacement plug.
Product properties	Type: Male Product type: Replacement plug Product family: PLUGTRAB IQ Surge protection fault message: Optical, multi-stage
Electrical properties	Nominal voltage U_N: 48 VÃDC
Connection data	Connection method: pluggable

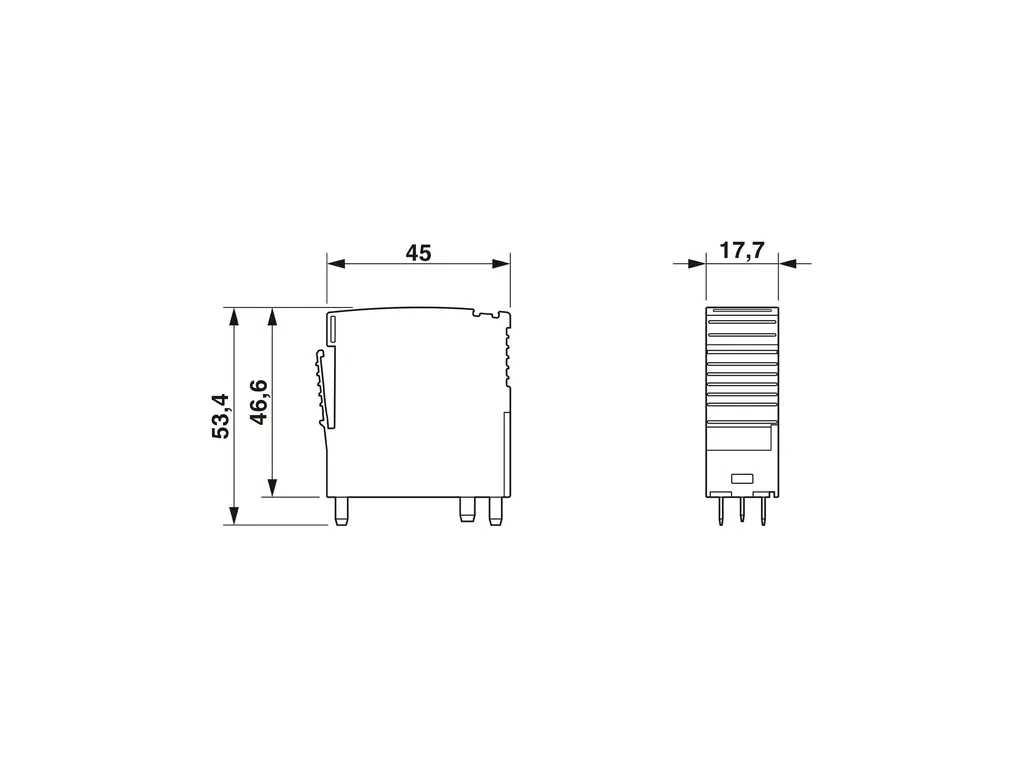

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b5446f667583404eaa1a059846ff2429/-S204x204-FJPG Width: 17.7 mm Height: 45 mm Depth: 53.4 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 91.1 mm Complete module depth: 77.5 mm
Material specifications	Flammability rating according to UL 94: V-0 Housing material: PA 6.6
Protective circuit	Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage U_C: 53 VÃDC 37 VÃAC Rated current: 300 mA (45Ã°C) Total discharge current I_total (8/20)ÃÃµs: 20 kA Surge protection fault message: Optical, multi-stage
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 %
Standards and regulations	Standards/specifications: ENÃ61643-21/A1 Note: 2009
Mounting	Mounting type: on base element
