2800570 PHOENIX CONTACT - Technology Bsa

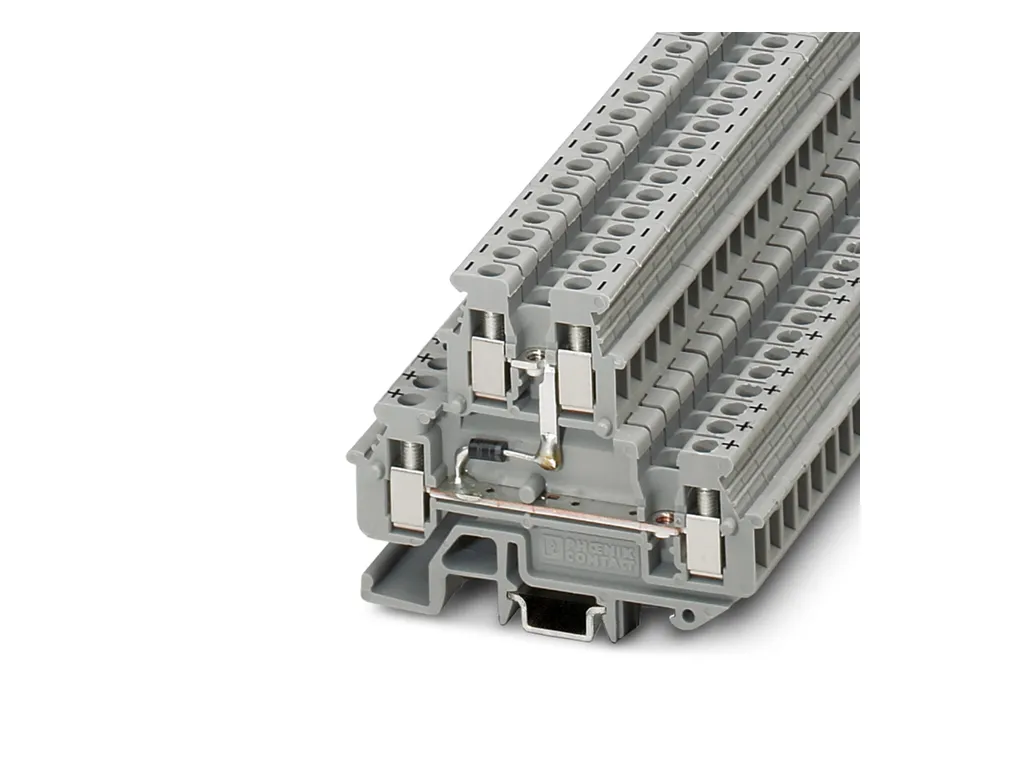

MBKKB 2,5-DIO/U-O - Mini feed-through terminal block

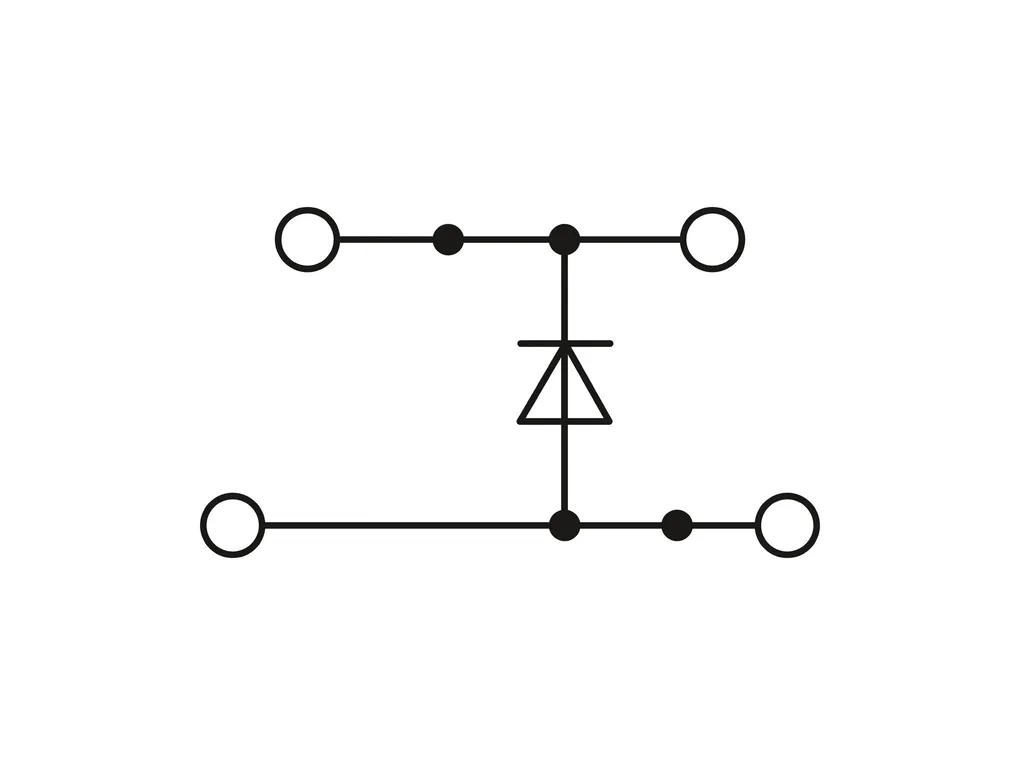

Mini feed-through terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, nom. voltage:500 V, nominal current:0.5 A, 1st and 2nd level, connection method: Screw connection, Rated cross section:2.5 mm², cross section:0.2 mm²-4 mm², mounting: NS15, NS 35/7,5, NS35/15, color:gray

Product Code: 2800570 Copia - Copy

Partner cod.: 2800570 Copia - Copy

PHOENIX CONTACT

Notes	General: The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A.
Product properties	Product type: Miniature terminal block Number of connections: 4 Number of rows: 2 Potentials: 2 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 0.77 W
Connection data	Number of connections per level: 2 Nominal cross section: 2.5 mm² 1st and 2nd level Screw thread: M3 Tightening torque: 0.5 ... 0.6 Nm Stripping length: 7 mm Internal cylindrical gage: A3 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.2 mm² ... 4 mm² Cross section AWG: 24 ... 12 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible [AWG]: 24 ... 14 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 2.5 mm² Cross-section with insertion bridge, rigid: 2.5 mm² Cross-section with insertion bridge, flexible: 2.5 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 1 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 1.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm² Nominal current: 0.5 A Maximum load current: 0.5 A Nominal voltage: 500 V (Data is based on the dielectric strength of adjacent terminal blocks or of the DINg rail.) Nominal cross section: 2.5 mm²
Dimensions	Width: 5.2 mm End cover width: 2.5 mm Height: 62 mm Depth on NSÃ15: 47.5 mm Depth on NSÃ35/7,5: 48 mm Depth on NSÃ35/15: 55.5 mm
Material specifications	Color: gray Flammability rating according to UL 94: V2 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: Yes
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: NSÃ15 NS 35/7,5 NSÃ35/15
