DIKD 1,5-LA 24GN/O-M - Sensor/actuator terminal block

Sensor/actuator terminal block, nom. voltage: 250 V, nominal current: 24 A, connection method: Screw connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS35/15, color: gray

Product Code: 2716376 Copia - Copy

Partner cod.: 2716376 Copia - Copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator terminal block Number of connections: 6 Number of rows: 3 Insulation characteristics Overvoltage category: III Degree of pollution: 3

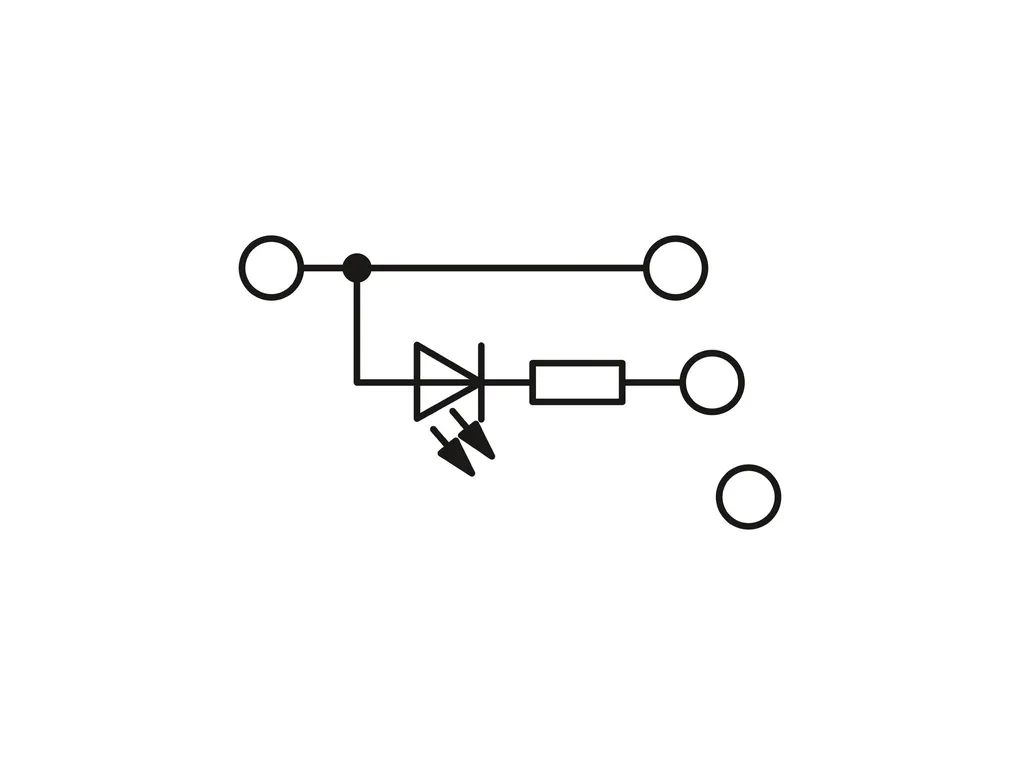

Electrical properties	Rated surge voltage: 4 kV Maximum power dissipation for nominal condition: 0.77 W LED voltage range: 15 VÃDC ... 30 VÃDC LED current range: 1 mA ... 2.5 mA
Input data	LED voltage range: 15 VÃDC ... 30 VÃDC
Connection data	Number of connections per level: 2 Nominal cross section: 2.5 mm² 1st, 2nd and 3rd level Screw thread: M3 Tightening torque: 0.5 ... 0.6 Nm Stripping length: 8 mm Internal cylindrical gage: A3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Cross section AWG: 24 ... 12 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible [AWG]: 24 ... 14 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 2.5 mm² Cross-section with insertion bridge, rigid: 4 mm² Cross-section with insertion bridge, flexible: 2.5 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 1 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 1 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm² Nominal current: 24 A Maximum load current: 30 A (with 4Ãmm² conductor cross section) Nominal voltage: 250 V Nominal cross section: 2.5 mm²
Dimensions	Width: 6.2 mm Height: 72.5 mm Depth on NSÃ35/7,5: 54.5 mm Depth on NSÃ35/15: 62 mm
Material specifications	Color: gray Flammability rating according to UL 94: V2 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Mounting	Mounting type: NS 35/7,5 NSÃ35/15
