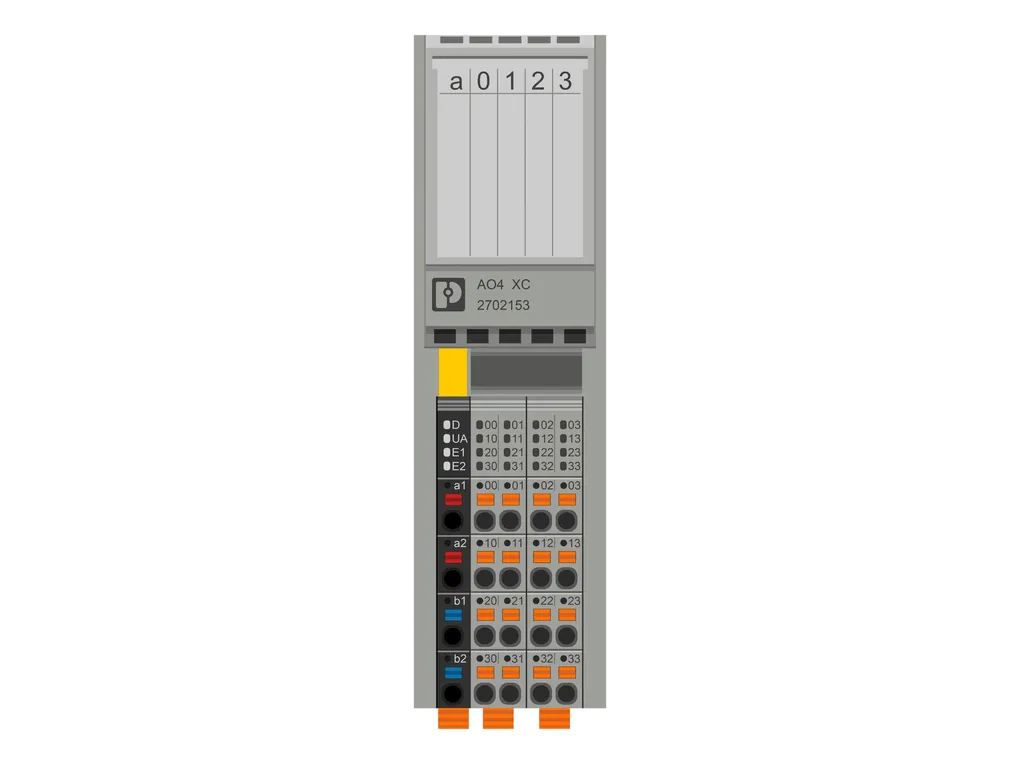

AXL F AO4 XC 1H - Analog module

AxiolineF, Analog output module, Analog outputs: 4, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, connection technology: 2-conductor, transmission speed in the local bus: 100 Mbps, Extremeconditions version, degree of protection: IP20, including bus base module and AxiolineF connectors

Product Code: 2702153 Copia - Copy

Partner cod.: 2702153 Copia - Copy

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/172c7c5767999646b422d3edebda44f8/-S204x204-FJPG Width: 35 mm Height: 126.1 mm Depth: 54 mm Note on dimensions: The depth applies when a THÃ35-7.5 DIN rail is used (in accordance with ENÃ60715).
Interfaces	AxiolineÃFÃlocal bus Number of interfaces: 2 Connection method: Bus base module Transmission speed: 100 Mbps
System properties	Module Input address area: 8 Byte Output address area: 8 Byte Required parameter data: 14 Byte Required configuration data: 7 Byte
Output data	Analog Output name: Analog outputs Connection method: Push-in connection Connection technology: 2-conductor Note regarding the connection technology: shielded, twisted pair Number of outputs: 4 D/A converter resolution: 16 bit Protective circuit: Short-circuit and overload protection; electronic Transient protection; Suppressor diode Data formats: IB IL, S7-compatible Representation of output values: 16 bits (15 bits + sign) Process data update: 140 Ãµs Current output signal: 0 mA ... 20 mA 4 mA ... 20 mA Load/output load current output: Ã¢Ã¢°¤ 500 Ã© Voltage output signal: 0 V ... 5 V -5 V ... 5 V 0 V ... 10 V -10 V ... 10 V Load/output load voltage output: Ã¢Ã¢°¥ 1 kÃ©
Product properties	Type: block modular Product type: I/O component Product family: AxiolineÃF Mounting position: any (no temperature derating) Scope of delivery: including bus base module and AxiolineÃF connectors Insulation characteristics Overvoltage category: II (IEC 60664-1, ENÃ60664-1) Pollution degree: 2 (IEC 60664-1, ENÃ60664-1)
Electrical properties	Potentials Power consumption: max. 3.75 W (Device, total, full load, R_LÃÃ¢Ã¢°¤Ã500ÃÃ©, current output 4ÃÃÃ¢Ã24ÃmA) Potentials: AxiolineÃF local bus supply (U Supply voltage: 5 VÃDC (via bus base module) Current draw: max. 150 mA typ. 120 mA Power consumption: max. 0.75 W typ. 0.6 W Potentials: Supply for analog modules (U Supply voltage: 24 VÃDC Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 125 mA (4 current channels, 24ÃmA output, 500ÃÃ© load) typ. 60 mA (4 voltage channels, 10 V output) max. 85 mA (4 voltage channels, 10 V output) max. 110 mA (4 current channels, 20ÃmA output, 500ÃÃ© load) Power consumption: max. 3 W (Full load, R_LÃÃ¢Ã¢°¤Ã500ÃÃ©, current output 4ÃÃÃ¢Ã24ÃmA) Protective circuit: Surge protection; electronic (35 V, 0.5 s) Reverse polarity protection; Polarity protection diode Transient protection; Suppressor diode Electrical isolation/isolation of the voltage ranges Test voltage: 5ÃV supply of the local bus (U_Bus) / 24ÃV supply (I/Os): 500 VÃAC, 50 Hz, 1 min. Test voltage: 5ÃV supply of the local bus (U_Bus)/analog outputs: 500 VÃAC, 50 Hz, 1 min. Test voltage: 5ÃV supply of the local bus (U_Bus) / functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: 24 V supply (I/O)/analog outputs: 500 VÃAC, 50 Hz, 1 min. Test voltage: 24ÃV supply (I/O) / functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: Analog outputs/functional ground: 500 VÃAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: AxiolineÃF connector Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢Ã¢¬ÃAxiolineÃF: system and installationÃ¢Ã¢¬ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineÃF connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢Ã¢¬ÃAxiolineÃF: system and installationÃ¢Ã¢¬ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C (Standard, applications with UL approval, use in zoneÃ2 potentially explosive area) -40°C ... 70°C (Extended, see section Ã¢Ã¢¬ÃTested successfully: use under extreme ambient conditionsÃ¢Ã¢¬ in the data sheet.) Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1)
Approvals	ATEX Identification: Ã¯Ã II 3 G Ex ec IIC T4 Gc Certificate: UL 20 ATEX 2441X UKEX Identification: Ã¯Ã II 3 G Ex ec IIC T4 Gc Certificate: PxCIMA22UKEX2701949X IECEx Identification: Ex ec IIC T4 Gc Certificate: IECEx ULD 20.0026X UL, USA/Canada Identification: cULus Certificate: E238705 UL Ex, USA / Canada Identification: Class I, Zone 2, AEx ec IIC T4 ClassÃI, DivisionÃ2, Groups A, B, C, D, T4 Ex ec IIC T4 Gc X Certificate: E366272 CCCÃ/ÃChina-Ex Identification: Ex ec IIC T4 Gc Certificate: Ã¯Ã¬, 2021122309114456
Mounting	Mounting type: DIN rail mounting Mounting position: any (no temperature derating)
