| Product properties | Product type: Extension module Mounting position: Attaches to DB-9 connector on right-side of base unit |
| Electrical properties | Supply: Module electronics Supply voltage: 24 V |
| Input data | Analog Description of the input: Inputs for thermocouples or linear voltage Number of inputs: 2 Connection method: Individual wires Connection technology: 2 or 3-wire (shielded) Sensor types (RTD) that can be used: PtÃ100, PtÃ1000 Sensor types that can be used (TC): B, E, J, K, N, R, S, T Protective circuit: Thermal fuse |
| Output data | Digital Output description: PNP outputs Connection method: Screw connection Number of outputs: 4 Protective circuit: Thermal fuse Maximum output current per channel: 0.5 A Maximum output current per module / terminal block: 2 A Nominal output voltage: 24 VÃDC Nominal load, inductive: 7.2 VA (1.2 H; 80 é) Nominal load, lamp: 7.2 W Nominal load, ohmic: 7.2 W (80 é) Maximum operating frequency with ohmic nominal load: 100 Hz |
| Connection data | Connection method: Screw connection Conductor cross section, rigid: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 12 ... 24 |

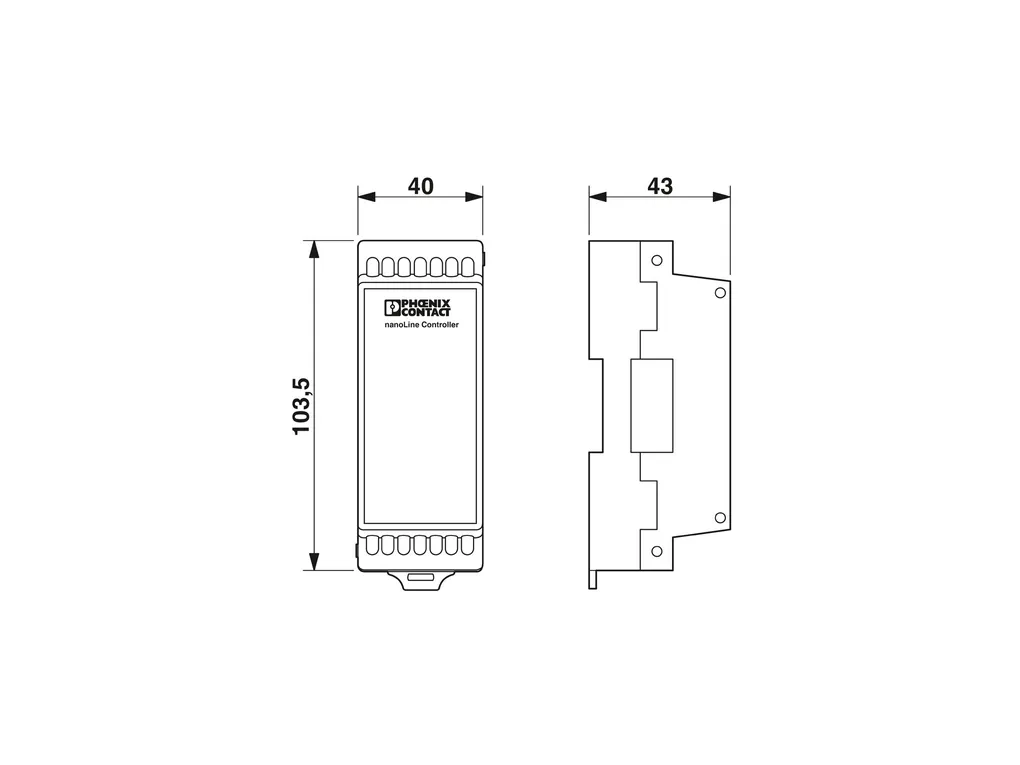

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ad3e10a4f04f22418efb6829a7939134/-S204x204-FJPG Width: 40 mm Height: 103.5 mm Depth: 43 mm |
| Material specifications | Color: white |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): 0°C ... 60°C Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 0 % ... 90 % (at 25ðC) |
| Mounting | Mounting type: DIN rail mounting Mounting position: Attaches to DB-9 connector on right-side of base unit |
