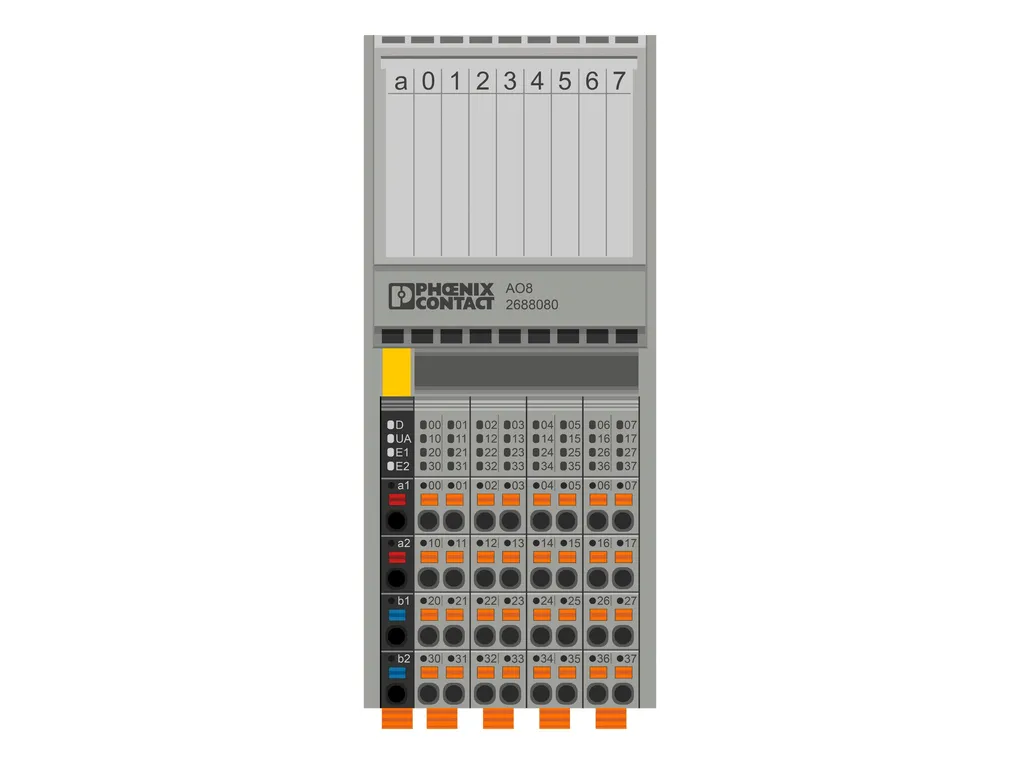

AXL F AO8 1F - Analog module


Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3f783436b27c3846a361ee861b282789/-S204x204-FJPG Width: 53.6 mm Height: 126.1 mm Depth: 54 mm Note on dimensions: The depth applies when a THÃ35-7.5 DIN rail is used (in accordance with ENÃ60715). |
Interfaces | AxiolineÃFÃlocal bus Number of interfaces: 2 Connection method: Bus base module Transmission speed: 100 Mbps |
System properties | Module Input address area: 16 Byte Output address area: 16 Byte Required parameter data: 27 Byte Required configuration data: 7 Byte |
Output data | Analog Output name: Analog outputs Connection method: Push-in connection Connection technology: 2-conductor Note regarding the connection technology: shielded, twisted pair Number of outputs: 8 D/A conversion time: 5 õs D/A converter resolution: 16 bit Protective circuit: Short-circuit and overload protection; electronic Transient protection; Suppressor diode Data formats: IB IL, S7-compatible Representation of output values: 16 bits (15 bits + sign) Process data update: 300 õs Current output signal: 0 mA ... 20 mA 4 mA ... 20 mA -20 mA ... 20 mA Load/output load current output: to 500 é Voltage output signal: 0 V ... 5 V -5 V ... 5 V 0 V ... 10 V -10 V ... 10 V Load/output load voltage output: > 2 ké Permissible cable length: max. 250 m (Reference cable type LiYCY (TP) n*2*0.5Ãmm²) |
Product properties | Type: block modular Product type: I/O component Product family: AxiolineÃF Mounting position: any (observe temperature derating) Scope of delivery: including bus base module and AxiolineÃF connectors Insulation characteristics Overvoltage category: II (IEC 60664-1, ENÃ60664-1) Pollution degree: 2 (IEC 60664-1, ENÃ60664-1) |
Electrical properties | Potentials Power consumption: typ. 1.725 W (To UBus and UA, intrinsic power input, no load, output 0ÃV, up to HWÃ04) typ. 1.4 W (To UBus and UA, intrinsic power input, no load, output 0ÃV, as of HWÃ05) max. 6.29 W (To UBus and UA, 8 current channels, output 20ÃmA, up to HWÃ04) max. 5.88 W (To UBus and UA, 8 current channels, output 20ÃmA, as of HWÃ05) Potentials: AxiolineÃF local bus supply (U Supply voltage: 5 VÃDC (via bus base module) Current draw: max. 130 mA (up to HW 04) max. 50 mA (from HW 05) typ. 105 mA (up to HW 04) typ. 40 mA (from HW 05) Power consumption: max. 0.65 W (up to HW 04) max. 0.25 W (from HW 05) typ. 0.525 W (up to HW 04) typ. 0.2 W (from HW 05) Potentials: Supply for analog modules (U Supply voltage: 24 VÃDC Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 235 mA (8 current channels, 20 mA output) typ. 110 mA (8 voltage channels, 10ÃV output) Power consumption: max. 5.64 W (8 current channels, 20 mA output) Protective circuit: Surge protection; electronic (35 V, 0.5 s) Reverse polarity protection; up to HWÃ03: polarity protection diodefrom HWÃ04: parallel diode; with external 5ÃA fuse (for startup only) Transient protection; Suppressor diode Electrical isolation/isolation of the voltage ranges Test voltage: 5ÃV supply of the local bus (UBus) / 24ÃV supply (I/Os): 500 VÃAC, 50 Hz, 1 min. Test voltage: 5ÃV supply of the local bus (UBus)/analog outputs: 500 VÃAC, 50 Hz, 1 min. Test voltage: 5ÃV supply of the local bus (UBus) / functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: 24 V supply (I/O)/analog outputs: 500 VÃAC, 50 Hz, 1 min. Test voltage: 24ÃV supply (I/O) / functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: Analog outputs/functional ground: 500 VÃAC, 50 Hz, 1 min. |
Connection data | Connection technology Connection name: AxiolineÃF connector Note on the connection method: Please observe the information provided on conductor cross sections in the ââ¬Ã AxiolineÃF: system and installationâ⬠user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineÃF connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the ââ¬Ã AxiolineÃF: system and installationâ⬠user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) |
Standards and regulations | Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1) |
Mounting | Mounting type: DIN rail mounting Mounting position: any (observe temperature derating) |
