| Product properties | Product type: Complete housing Product family: UEGM Number of positions: 6 Pitch: 5 mm Number of rows: 1 Housing type: Complete housing Housing series: UEG Pin layout: Linear pinning |
| Electrical properties | Nominal voltage UN: 500 V (Voltage and current values are affected by the configuration of the printed circuit board.) Nominal current IN: 10 A |

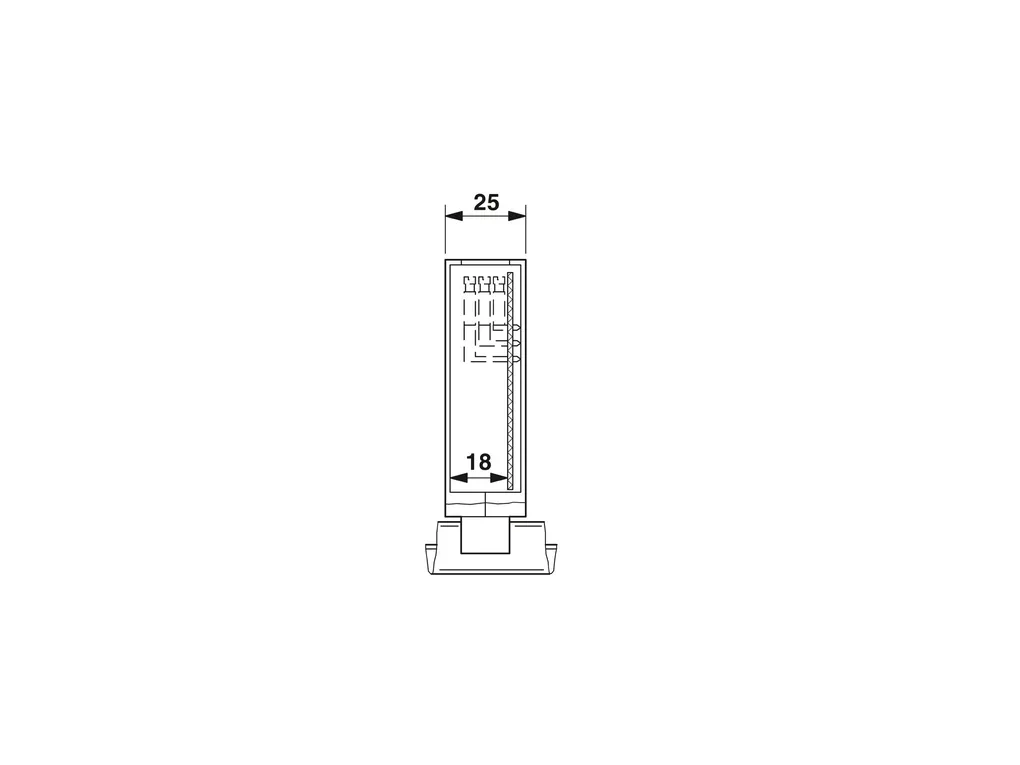

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/989627875e64994cb7bc1928ac7a3ebb/-S204x204-FJPG Width: 25 mm Installed height: 85.5 mm Height NS 35/7,5: 85.5 mm Depth: 79 mm Length: 79 mm Pitch: 5 mm |
| Material specifications | Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 105°C |
| Mounting | Mounting type: Soldering Pin layout: Linear pinning |
