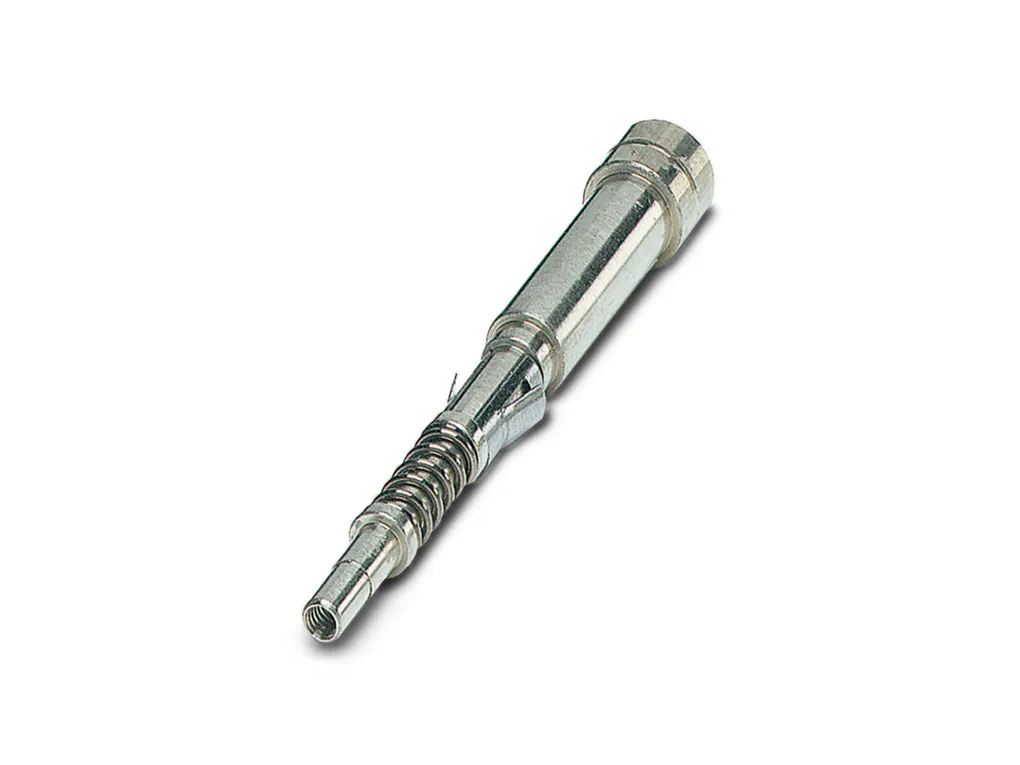

CK1,6-ED-ST-POF - Male contact

POF fiber optic pin contact, turned, for contact carriers (HC-DD...I-CT.../ HC-M-12-CT-.../ HC-M-17-CT-...) of CK1,6-ED... contacts

Product Code: 1884995 Copia - Copy

Partner cod.: 1884995 Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Notes	General: For HC-M12.., HC-M 17.., HC-DD...-I-CT... contact carriers
Product properties	Product type: Fiber optics contact Type: Individual male contact Contact material type: turned

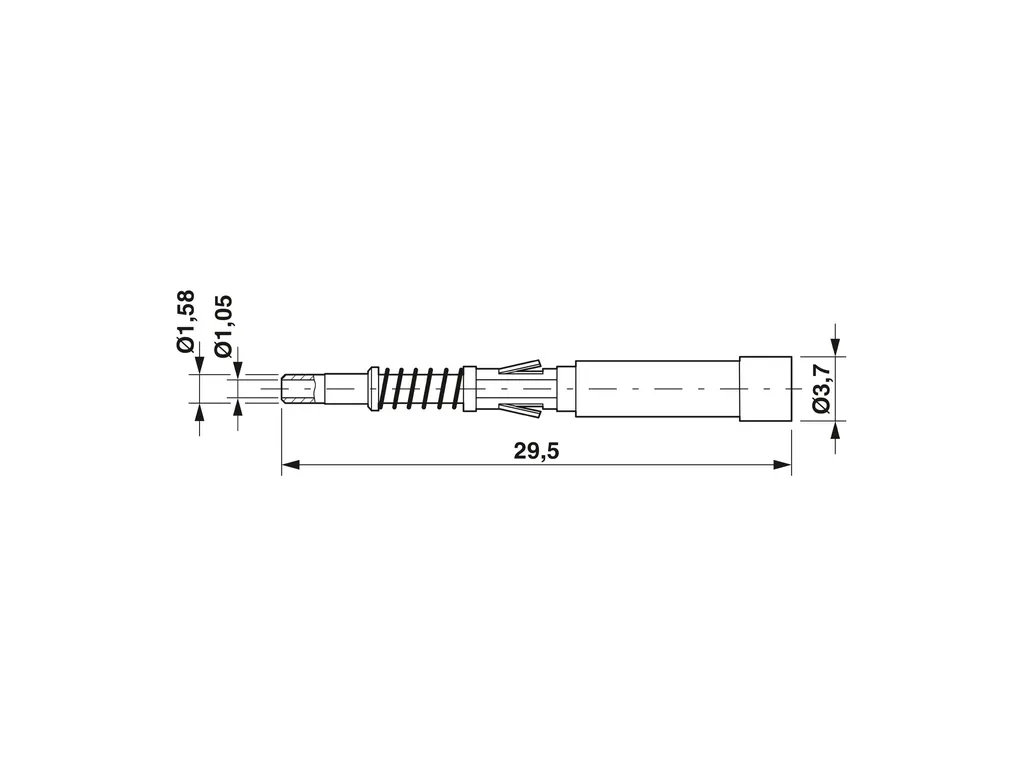

Dimensions	Mechanical characteristics Contact diameter: 1.6 mm
Material specifications	Contact material: Nickel silver
Cable/line	Stripping length of the individual wire: 19 mm (after polishing)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C
Mounting	Connection method: Crimp connection

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05524.pdf

Manufacturer_declaration_13759.pdf

Technical_drawing_32077.pdf
