PHOENIX CONTACT 1855898

Not available

VC-M-KV-PG21-3X7DN - Cable gland

Cable screw connection, metal, with Pg

Product Code: 1855898 Copia - Copy

Copia - Copy

Partner cod.: 1855898 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Half screw connection Product family: VARIOCON No. of conductors: 1
Dimensions	Width: 35.5 mm Height: 35.5 mm Length: 30 mm
Material specifications	Material: TPE Brass
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_13693.pdf

Technical_drawing_30915.pdf

Other products

Description other products

PHOENIX CONTACT 1308660

PRC 20/5-C1-FC-MS2,5 6-14 - Connector
Cod. Articolo: 1308660

Connector, Range of articles: PRC 20, color: black, number of positions: 5, min. conductor cross section: 0.5 mm², max. conductor cross section: 2.5 mm², rated voltage: 400 V, rated current: 20 A, Connection method: Screw connection, Contact connection type: Pin, min. cable diameter: 8 mm, max. cable diameter: 14 mm. Setting option for release: 1. with a tool or 2. by hand. AC

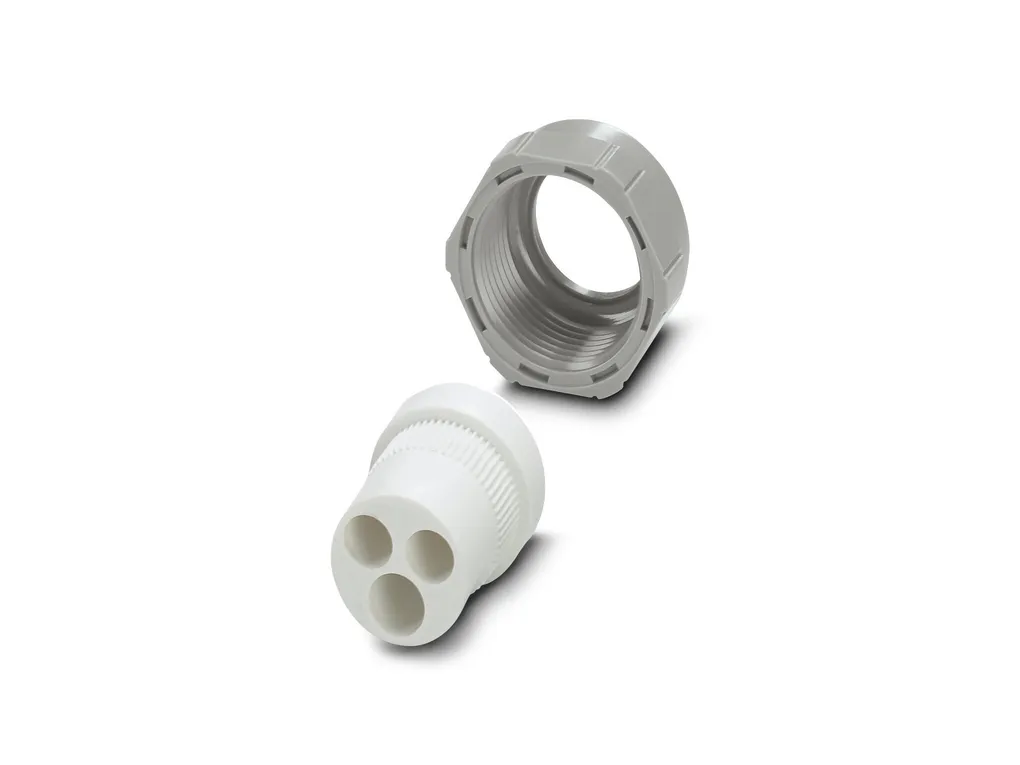

PHOENIX CONTACT 1885431

VC-K-KV-PG16 2X6/1X7 - Cable gland
Cod. Articolo: 1885431

Half screw connection Pg16, made of plastic, consisting of rubber seal with several holes (2 x 6 mm/1 x 7 mm) and a pressure screw, for cable screw connection thread VC-M-KV-PG16....

PHOENIX CONTACT 1583513

VC-TFS 2-PE - Contact insert
Cod. Articolo: 1583513

Contact insert, Range of articles: VARIOCON, housing material: Polyamide, color: light grey, number of positions: 2, min. conductor cross section: 0.25 mm², max. conductor cross section: 4 mm², rated voltage: 400, rated current: 20 A, Connection method: Screw connection, Contact connection type: Socket. Connectors may only be connected/disconnected when under no load.
