SPT 35/ 5-V-15,00 - PCB terminal block

PCB terminal block, nominal current: 125 A, rated voltage (III/2): 1000 V, nominal cross section: 35 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, product range: SPT 35/..-V, pitch: 15 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90°, color: green, Pin layout: Linear pinning, Solder pin [P]: 5.9 mm, number of solder pins per potential: 4, type of packaging: packed in cardboard

Product Code: 1845373 Copia - Copy

Partner cod.: 1845373 Copia - Copy

PHOENIX CONTACT

Product properties	Product line: COMBICON Terminals XL Product type: Printed circuit board terminal Product family: SPT 35/..-V Number of positions: 5 Pitch: 15 mm Number of connections: 5 Number of rows: 1 Number of potentials: 5 Pin layout: Linear pinning Solder pins per potential: 4
Electrical properties	Nominal current I_N: 125 A Nominal voltage U_N: 1000 V Degree of pollution: 3 Rated voltage (III/3): 1000 V Rated surge voltage (III/3): 8 kV Rated voltage (III/2): 1000 V Rated surge voltage (III/2): 8 kV Rated voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV
Connection data	Connection technology Nominal cross section: 35 mm² Conductor connection Connection method: Push-in spring connection Conductor cross section rigid: 1.5 mm² ... 16 mm² (Conductor connection with open terminal point) 4 mm² ... 35 mm² (Push-in connection) Single-conductor/terminal point multi-stranded: 1.5 mm² ... 35 mm² Conductor cross section flexible: 1.5 mm² ... 35 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 1.5 mm² ... 35 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 1.5 mm² ... 35 mm² Stripping length: 25 mm
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning Connection method: Push-in spring connection
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (10 - 16 Ãµm Sn) Metal surface soldering area (top layer): Tin (10 - 16 Ãµm Sn) Material data - housing Color (Housing): green (6021) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C

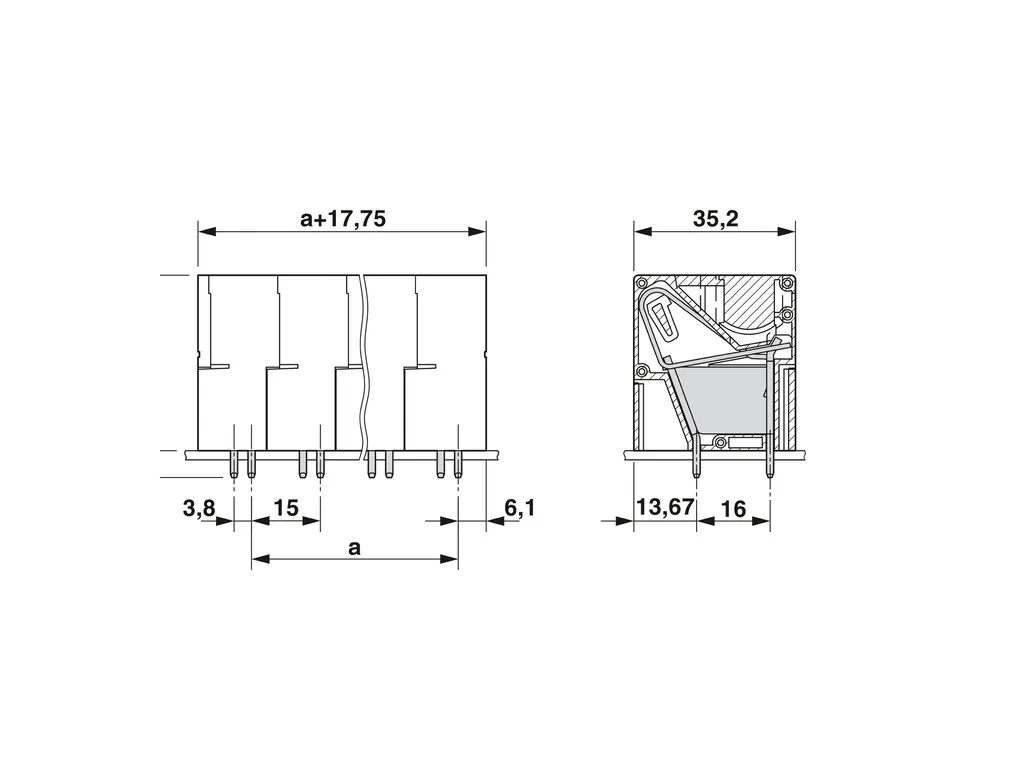

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 15 mm Width [w]: 77.75 mm Height [h]: 44.2 mm Length [l]: 35.2 mm Installed height: 38.3 mm Solder pin length [P]: 5.9 mm Pin dimensions: 1.5 x 1.5 mm PCB design Pin spacing: 16 mm Hole diameter: 2.2 mm
Mechanical tests	Test for conductor damage and slackening Specification: IEC 60999-1:1999-11 Result: Test passed Pull-out test Specification: IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value: 1.5 mm² / solid / flexible / > 40 N 16 mm² / solid / > 100 N 35 mm² / stranded / > 190 N 35 mm² / flexible / > 190 N 4 mm² / solid / > 60 N
Electrical tests	Temperature-rise test Specification: IEC 60947-7-4:2019-01 Requirement temperature-rise test: The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. Short-time withstand current Specification: IEC 60947-7-4:2019-01 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Air clearances and creepage distances \| Specification: IEC 60947-7-4:2019-01 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 1000 V Rated surge voltage (III/3): 8 kV minimum clearance value - non-homogenous field (III/3): 8 mm minimum creepage distance (III/3): 12.5 mm Rated insulation voltage (III/2): 1000 V Rated surge voltage (III/2): 8 kV minimum clearance value - non-homogenous field (III/2): 8 mm minimum creepage distance (III/2): 8 mm Rated insulation voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV minimum clearance value - non-homogenous field (II/2): 5.5 mm minimum creepage distance (II/2): 5.5 mm
Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 5g (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC 60695-2-10:2013-04 Temperature: 850°C Time of exposure: 5 s Aging Specification: IEC 60947-7-4:2019-01 Ambient conditions Ambient temperature (operation): -40°C ... 105°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Type of packaging: packed in cardboard
