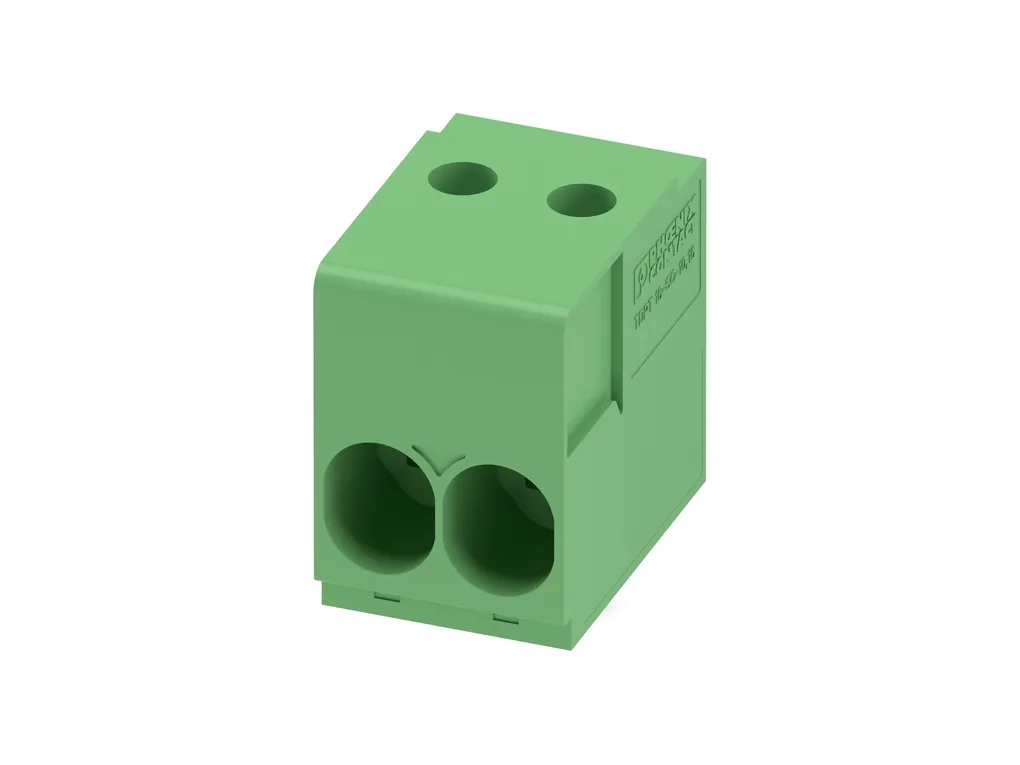

SPT 16/ 1-H-10,0 - PCB terminal block

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: SPT 16/..-H, pitch: 10 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: green, Pin layout: Linear pinning, Solder pin [P]: 4 mm, number of solder pins per potential: 6, type of packaging: packed in cardboard

Product Code: 1735778 Copia - Copy

Partner cod.: 1735778 Copia - Copy

PHOENIX CONTACT

Product properties	Type: PC terminal block can be aligned Product line: COMBICON Terminals XL Product type: Printed circuit board terminal Product family: SPT 16/..-H Number of positions: 1 Pitch: 10 mm Number of connections: 1 Number of rows: 1 Number of potentials: 1 Pin layout: Linear pinning Solder pins per potential: 6
Electrical properties	Nominal current I_N: 76 A Nominal voltage U_N: 1000 V Degree of pollution: 3 Rated voltage (III/3): 1000 V Rated surge voltage (III/3): 8 kV Rated voltage (III/2): 1000 V Rated surge voltage (III/2): 8 kV Rated voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV
Connection data	Connection technology Type: PC terminal block can be aligned Nominal cross section: 16 mm² Conductor connection Connection method: Push-in spring connection Conductor cross section rigid: 0.75 mm² ... 16 mm² Conductor cross section flexible: 0.75 mm² ... 16 mm² Conductor cross section AWG: 20 ... 4 Conductor cross section flexible, with ferrule without plastic sleeve: 0.75 mm² ... 16 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.75 mm² ... 10 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.75 mm² ... 4 mm² Stripping length: 18 mm
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning Connection method: Push-in spring connection
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (10 - 16 Ãµm Sn) Metal surface soldering area (top layer): Tin (10 - 16 Ãµm Sn) Material data - housing Color (Housing): green (6021) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C
Notes	General: The single-position PCB terminal block can be used for voltages up to 1500ÃV (DC) and 1000ÃV (AC). The relevant device standard and the appropriate required air clearances and creepage distances should be observed following installation

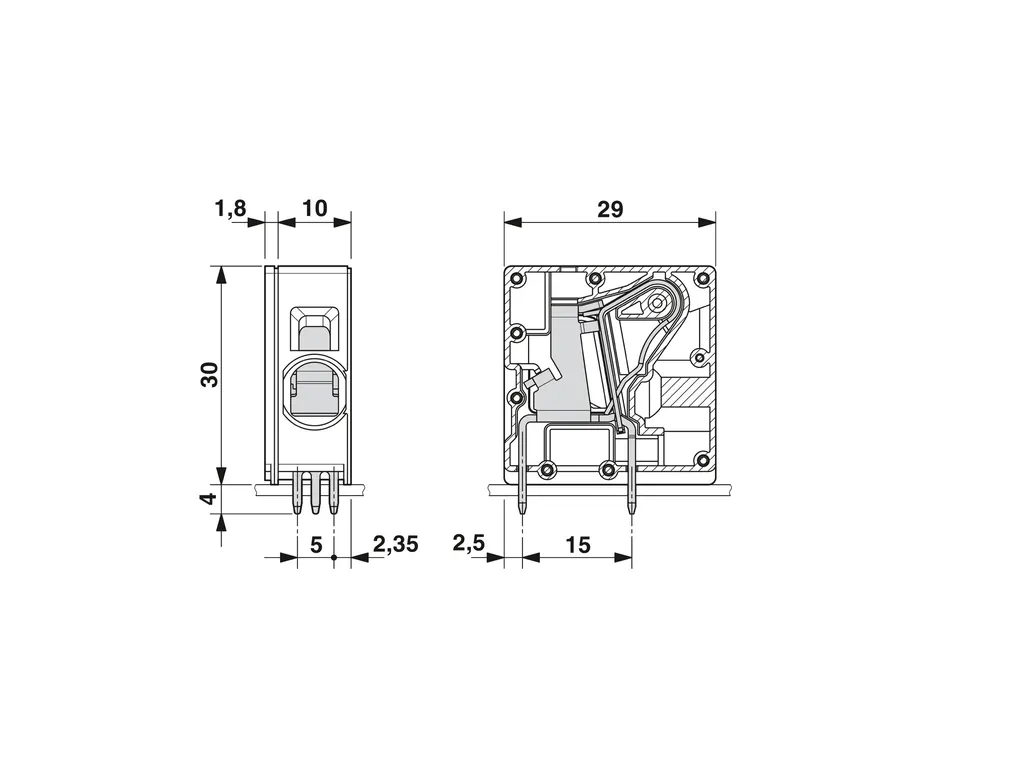

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 10 mm Width [w]: 11.8 mm Height [h]: 34 mm Length [l]: 29 mm Installed height: 30 mm Solder pin length [P]: 4 mm Pin dimensions: 1 x 1.2 mm PCB design Pin spacing: 15 mm Hole diameter: 1.7 mm
Electrical tests	Air clearances and creepage distances \| Insulating material group: I Rated insulation voltage (III/3): 1000 V Rated surge voltage (III/3): 8 kV Rated insulation voltage (III/2): 1000 V Rated surge voltage (III/2): 8 kV Rated insulation voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV
Packaging specifications	Type of packaging: packed in cardboard
