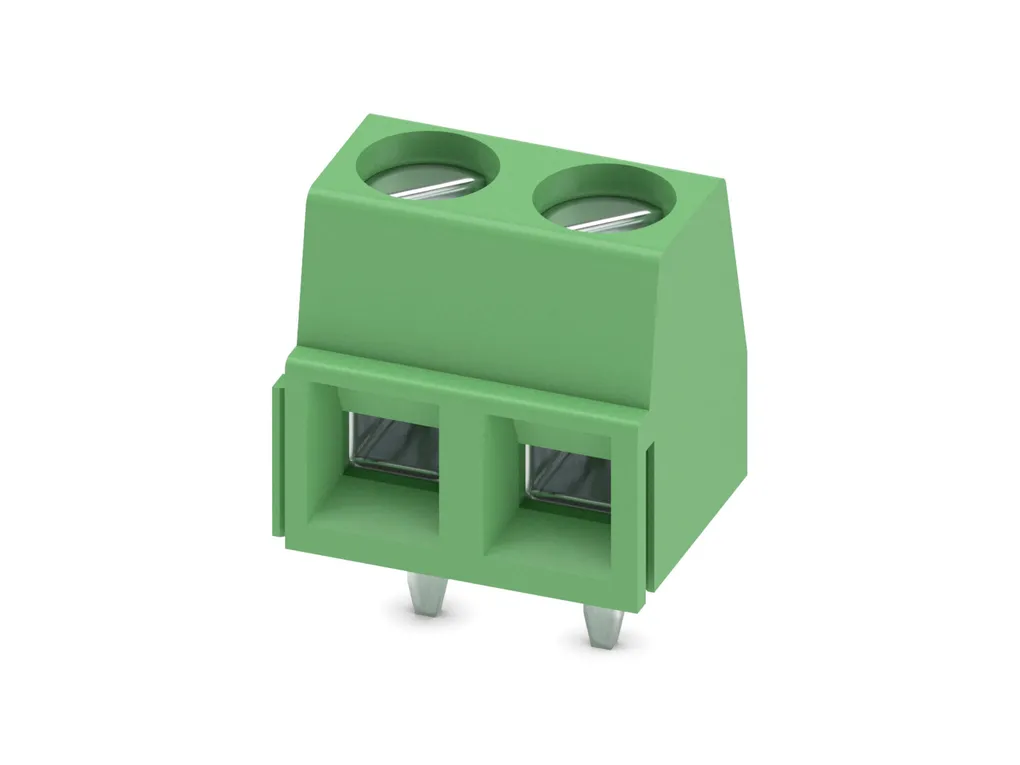

MKKDSNH 1,5/ 3-5,08 - PCB terminal block

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm2, number of potentials: 3, number of rows: 1, number of positions per row: 3, product range: MKKDSNH 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
Product Code: 1731831
Partner cod.: 1731831
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Product propertiesType: PC terminal block can be aligned
Product line: COMBICON Terminals S
Product type: Printed circuit board terminal
Product family: MKKDSNH 1,5
Number of positions: 3
Pitch: 5.08 mm
Number of connections: 3
Number of rows: 1
Number of potentials: 3
Pin layout: Linear pinning
Solder pins per potential: 1
Electrical propertiesNominal current IN: 13.5 A
Nominal voltage UN: 400 V
Degree of pollution: 3
Rated voltage (III/3): 250 V
Rated surge voltage (III/3): 4 kV
Rated voltage (III/2): 400 V
Rated surge voltage (III/2): 4 kV
Rated voltage (II/2): 630 V
Rated surge voltage (II/2): 4 kV
Connection dataConnection technology
Type: PC terminal block can be aligned
Nominal cross section: 1.5 mm²
Conductor connection
Connection method: Screw connection with tension sleeve
Conductor cross section rigid: 0.14 mm² ... 1.5 mm²
Conductor cross section flexible: 0.14 mm² ... 1.5 mm²
Conductor cross section AWG: 26 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid: 0.14 mm² ... 0.75 mm²
2 conductors with same cross section, flexible: 0.14 mm² ... 0.75 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 0.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm² (1stlevel: 0.5mm²...1mm² / 2ndlevel: 0.5mm²)
Stripping length: 6 mm
Tightening torque: 0.5 Nm ... 0.6 Nm
MountingMounting type: Wave soldering
Pin layout: Linear pinning
Drive form screw head: Slotted(L)
Connection method: Screw connection with tension sleeve
Material specificationsMaterial data - contact
Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material: Cu alloy
Surface characteristics: Tin-plated
Metal surface terminal point (top layer): Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer): Nickel (2 - 3 µm Ni)
Metal surface soldering area (top layer): Tin (5 - 7 µm Sn)
Metal surface soldering area (middle layer): Nickel (2 - 3 µm Ni)
Material data - housing
Color (Housing): green (6021)
Insulating material: PA
Insulating material group: I
CTI according to IEC 60112: 600
Flammability rating according to UL 94: V0
Glow wire flammability index GWFI according to EN60695-2-12: 850
Glow wire ignition temperature GWIT according to EN60695-2-13: 775
Temperature for the ball pressure test according to EN60695-10-2: 125°C
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG
Pitch: 5.08 mm
Width [w]: 15.24 mm
Height [h]: 22.6 mm
Length [l]: 8.6 mm
Installed height: 19.1 mm
Solder pin length [P]: 3.5 mm
Pin dimensions: 0.5 x 1 mm
PCB design
Hole diameter: 1.3 mm
Mechanical testsTest for conductor damage and slackening
Specification: IEC 60998-2-1:2002-12
Result: Test passed
Pull-out test
Specification: IEC 60998-2-1:2002-12
Conductor cross section/conductor type/tractive force setpoint/actual value: 0.14 mm² / solid / > 10 N
0.14 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Torque test
Specification: IEC 60998-2-1:2002-12
Electrical testsTemperature-rise test
Specification: IEC 60998-1:2002-12
Requirement temperature-rise test: Increase in temperature ≤45K
Insulation resistance
Specification: IEC 60998-1:2002-12
Insulation resistance, neighboring positions: 109Ω
Air clearances and creepage distances |
Specification: IEC 60664-1:2007-04
Insulating material group: I
Comparative tracking index (IEC 60112): CTI 600
Rated insulation voltage (III/3): 250 V
Rated surge voltage (III/3): 4 kV
minimum clearance value - non-homogenous field (III/3): 3 mm
minimum creepage distance (III/3): 3.2 mm
Note on connection cross section: With connected conductor 1.5 mm² (solid).
Rated insulation voltage (III/2): 400 V
Rated surge voltage (III/2): 4 kV
minimum clearance value - non-homogenous field (III/2): 3 mm
minimum creepage distance (III/2): 3 mm
Rated insulation voltage (II/2): 630 V
Rated surge voltage (II/2): 4 kV
minimum clearance value - non-homogenous field (II/2): 3 mm
minimum creepage distance (II/2): 3.2 mm
Environmental and real-life conditionsVibration test
Specification: IEC 60068-2-6:1995-03
Frequency: 10 - 150 - 10 Hz
Sweep speed: 1octave/min
5g (60.1Hz...150Hz)
Amplitude: 0.35mm (10Hz...60.1Hz)
Test duration per axis: 2.5 h
Glow-wire test
Specification: IEC 60998-1:2002-12
Temperature: 850°C
Time of exposure: 5 s
Ambient conditions
Ambient temperature (operation): -40°C ... 100°C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport): -40°C ... 70°C
Relative humidity (storage/transport): 30 % ... 70 %
Ambient temperature (assembly): -5°C ... 100°C
Packaging specificationsType of packaging: packed in cardboard
Technical Specs
ECLASSECLASS-11.0: 27460101
ECLASS-12.0: 27460101
ECLASS-13.0: 27460101
ETIMETIM 9.0: EC002643
UNSPSCUNSPSC 21.0: 39121400
Download
