| Product properties | Product type: Socket Country ID: France |
| Electrical properties | Rated voltage (III/3): 250 V Rated current: 16 A |

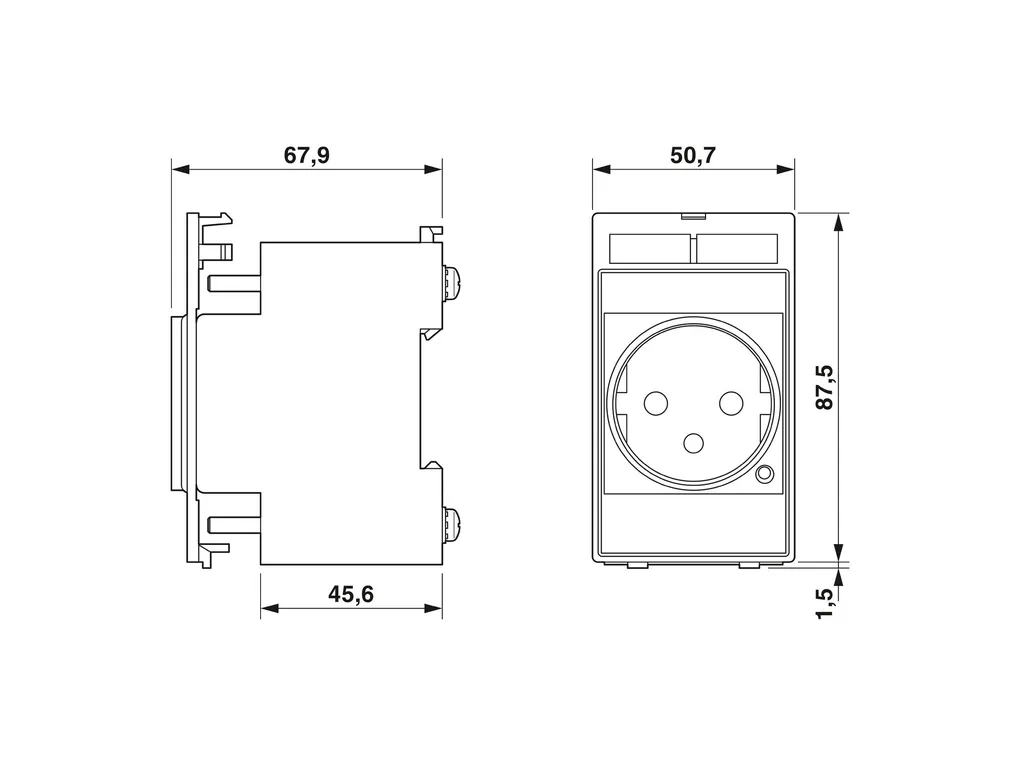

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/62de36f3d0de9049b62c2500e3712433/-S204x204-FJPG Width: 51 mm Height: 88 mm Depth: 68 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -10°C ... 60°C |
| Mounting | Assembly instructions: suitable for all mounting frames Connection method: Screw connection |
