VS-ST-LH-3,6/18/3,8 - D-SUB power contact

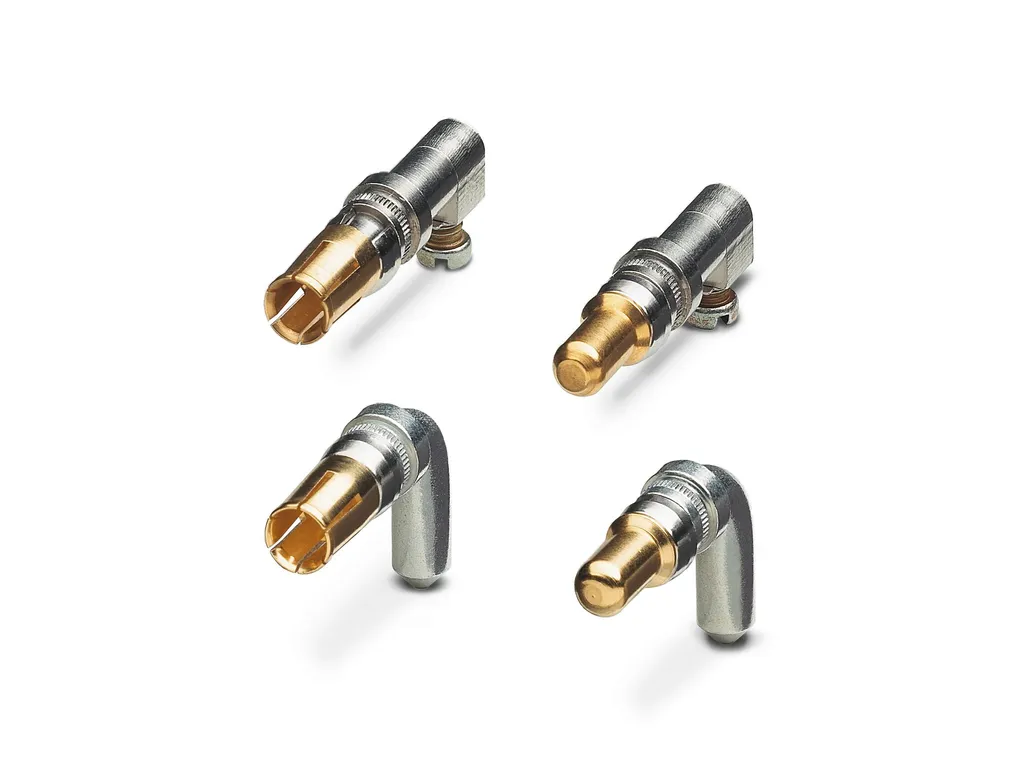

POWER contact, for D-SUB combination inserts, for PCB assembly, pin, angled, rated current 40 A, gold-plated
Product Code: 1655467
Partner cod.: 1655467
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Contacts
Type: Individual male contact
Contact material type: turned
Electrical propertiesMaximum load current: 40 A
Rated surge voltage: 1 kV
Rated current: 40 A (at 20°C)
Insulation resistance: ≥ 5 GΩ
Test voltage: 1000 V
Connection dataMaximum load current: 40 A
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/dfec84e1387e9d468c0e8e9a6cf6fb59/-S204x204-FJPG
Width: 5.5 mm
Height: 13.8 mm
Length: 19.7 mm
Mechanical characteristics
Contact diameter: 3.8 mm
Material specificationsMaterial: Metal
Contact material: Copper alloy
Contact surface material: Au/Sn
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 500
Insertion force per signal contact: ≤ 7.00 N
Extraction force per signal contact: approx. 5 N
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -55°C ... 130°C
MountingMounting type: Solder connection
Connection method: PCB mounting
