PHOENIX CONTACT 1652295
PHOENIX CONTACT 1652295
PHOENIX CONTACTNot available

VS-08-T-G-RJ45/IP20 - RJ45 sleeve housings

RJ45 sleeve housing, IP20, for pin insert VS-08-ST-RJ45, with push-pull interlocking for panel mounting frames, inverted design, for Factoryline modular managed switches, for cable cross section 5.0 mm ... 6.5 mm
Product Code: 1652295
Partner cod.: 1652295
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesType: RJ45
Product type: Sleeve housings
No. of cable outlets: 1
Cable outlet: straight

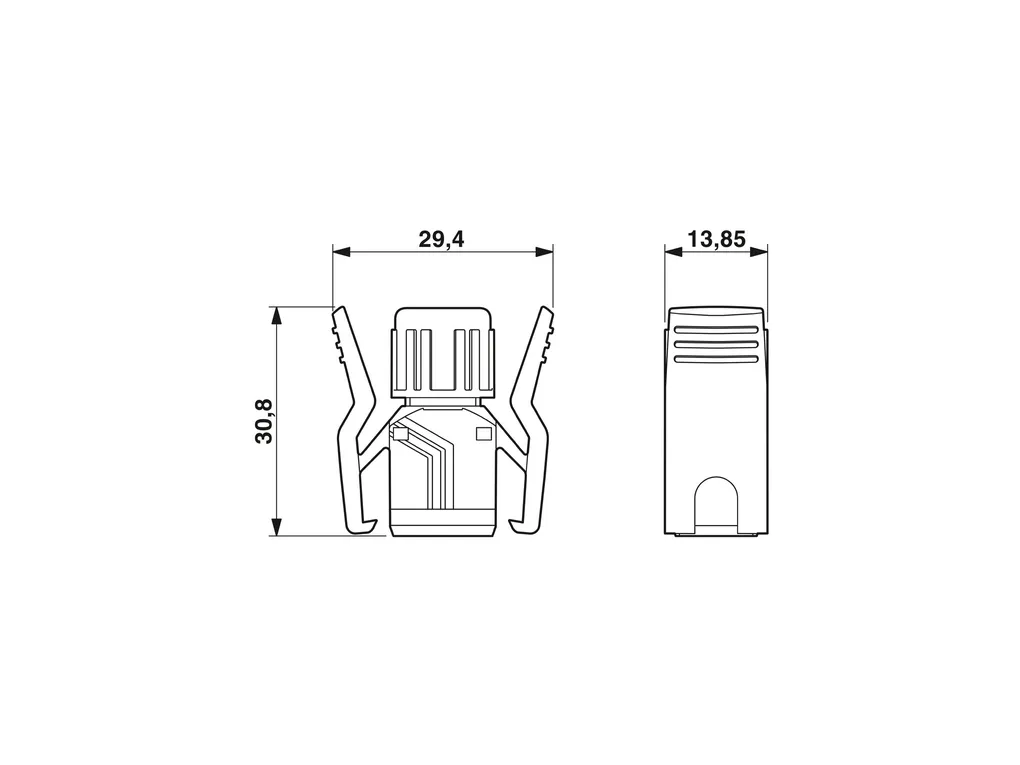

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b0530f670d3c14498968df8ec3fdffde/-S204x204-FJPG
Width: 13.8 mm
Height: 29.4 mm
Length: 31.5 mm
Material specificationsColor: gray
Flammability rating according to UL 94: V0
Material for screw connection: PA
Housing material: PA
Cable/lineExternal cable diameter (): 5 mm ... 6.5 mm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 750
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): -40°C ... 80°C
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manual_00115.pdf

Manufacturer_declaration_05511.pdf
