1648348 PHOENIX CONTACT - Technology Bsa

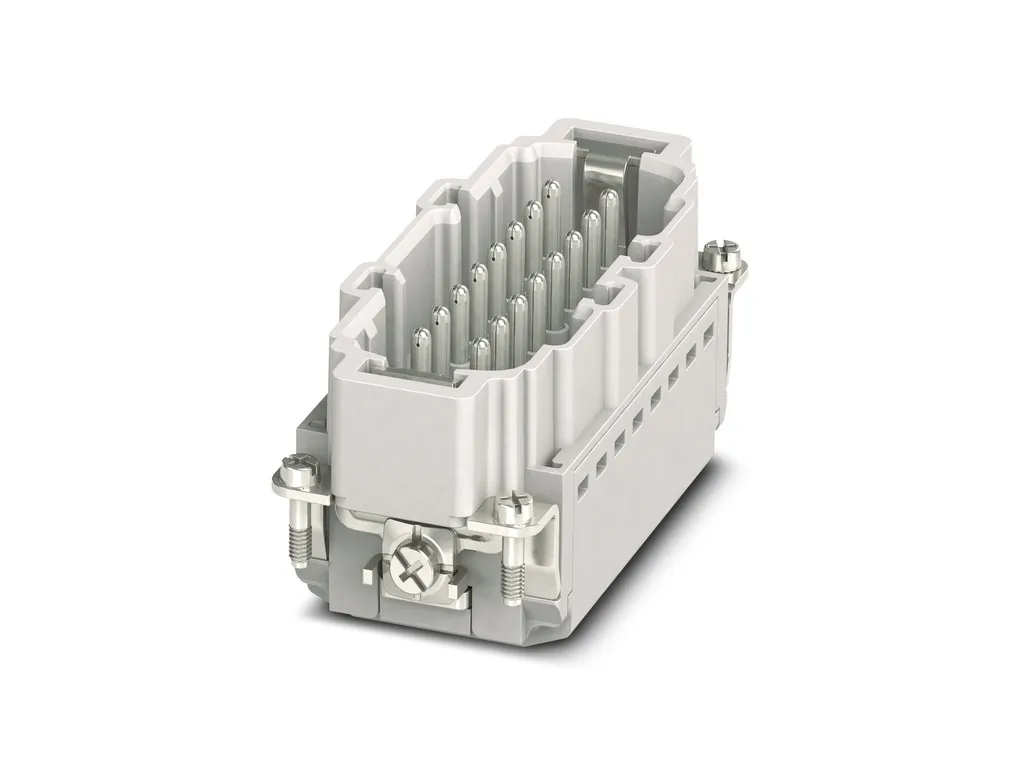

HC-B 24-I-CT-F - Contact insert

Contact insert, number of positions: 24+PE, size: B24, number of connections per position: 1, Socket, Crimp connection, 500 V, 16 A, 0.5 mm²...4 mm², application: Power

Product Code: 1648348 Copia - Copy

Partner cod.: 1648348 Copia - Copy

PHOENIX CONTACT

Notes	General: For HEAVYCON ADVANCE and HEAVYCON housing of B24 type, crimp contacts CK 2,5-ED (crimp contacts not included in the scope of supply). Connectors may be operated only when there is no load/voltage.

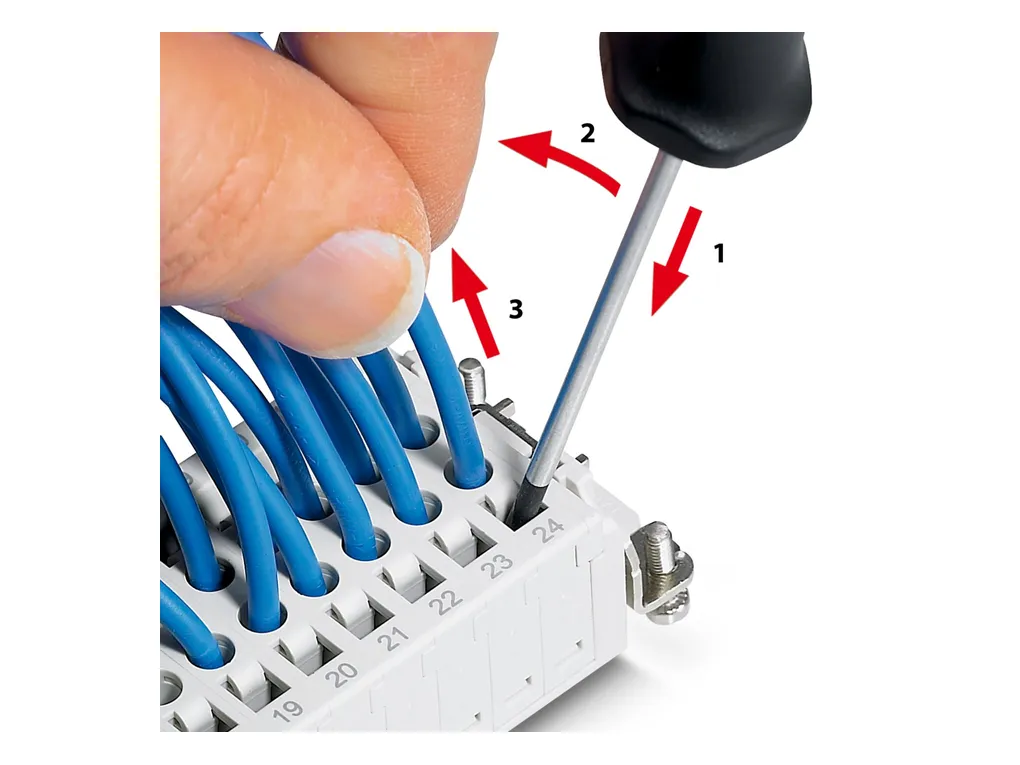

Mounting	Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required Remove the crimp contact using a screwdriver. The opening for the screwdriver is next to the opening where the conductor is inserted.
Product properties	Type: B24 B48 Product type: Contact insert with a fixed no. of positions Number of positions: 24 Connection profile: 24+PE Contact numbering: 1 - 24 Application: Power Number of connections per position: 1 Contact material type: turned Series: HC-B Insulation characteristics Overvoltage category: III Degree of pollution: 3
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/711bbe93577f1f4d9f3a7421ad82b8fb/-S204x204-FJPG Width: 34 mm Height: 34.6 mm Length: 111 mm Drill hole distance, horizontal: 104 mm Drill hole distance, vertical: 27 mm Mechanical characteristics Contact diameter: 2.5 mm
Connection data	Connection technology Connection technology: Crimp connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.5 mm² ... 4 mm² Connection cross section AWG: 20 ... 12 Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 7.5 mm
Electrical properties	Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A SCCR: 5 kA (UL 2237)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag (alternatively Au) Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts)
Standards and regulations	Constructional and testing regulations: DINÃENÃ61984 DINÃENÃ60664 IEC 60352 Tests: DINÃENÃ61984 DINÃENÃ60664 IEC 60352 Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
